Product Details:
|
Temperature Range: | RT~500C | Temperature Fluctuation: | ±1.0℃ |
---|---|---|---|
Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
Cooling Rate/min: | 1 Degree | Temperature Uniformity: | ±2.0℃ |
Power: | 220V , 50Hz | Keyword: | Environmental Chambers |

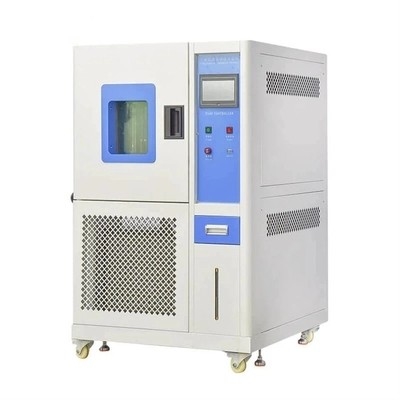

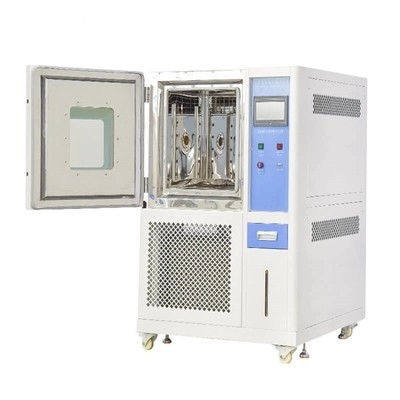

ROHS Temperature Environmental Test Chamber 9KW Anticorrosive
Environment Testing Equipment:
finds use in conducting environmental tests and is designed to withstand working in harsh environment like swift variations in temperatures, extremely high and low temperatures, solar radiation and others. These set of equipment work towards meeting critical environment testing needs and help in checking, stack emissions, volatile & semi-volatiles, air toxicants, hazardous air pollutants and others. The range we make available under this include Air Monitoring Equipments, Water Pollution Monitoring, Weather Monitoring Station, Flue Gas Analyzer, Analytical & Laboratory Instruments, Sound Level / Noise Monitoring systems and Vibration Monitoring systems. Backed by rich industry expertise as well as in-depth product knowledge, we can deliver these solutions under different models to exactly match up with the end process needs of the users.
Features:
1. Perfect shape design: arc shape and surface spray treatment, high-quality appearance, and flat non-reaction handle, easy to operate, safe and reliable.
2. Large observation window with bright and wide field of vision: using three-layer vacuum coating window and Philips energy-saving fluorescent lamp, no need for wipers to remove fog, maintain a clear observation effect, and can observe the condition of the test product at any time.
3. The humidification system pipeline is separated from the control circuit: the humidification system pipeline is separated from the power supply, the controller and the circuit board, which can avoid the circuit being affected by the leakage of the pipeline and improve the safety.
Performance parameters:
Product Name | Environmental Test Chamber |
Internal size | 80L:W500*H400*D400mm(Can be customized according to customer needs) |
External size | 80L:W1400*H1850*D1500mm(Can be customized according to customer needs) |
Temperature shock range | High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃ |
Preheating temperature range | 60℃--200℃ |
High temperature tank heating time | RT~+200℃≤30min (RT:+10~+30℃) |
Precooling temperature range | (-10)℃~ (-70)℃ |
Low temperature tank cooling time | RT~-70℃≤50min (RT:+10~+30℃) |
Temperature fluctuation
|
±1.0℃ |
Temperature uniformity | ±2.0℃ |
Throttle conversion time | ≤5S |
Impact recovery time | (-40)℃~(+150)℃≤5min |
Heating system | Fin-type radiating tube-shaped stainless steel electric heater 1, high temperature tank 9KW 2, low temperature tank 6KW |
Compressor | Original imported French "Taikang" brand fully enclosed compressor |
Condenser
|
Water-cooled condensing agent |
Evaporator | Multi-stage automatic load capacity adjustment of bullying fins |
Expansion valve | Danvers imported original components from Denmark |
Refrigerant | The latest environment-friendly refrigerant R404A imported from USA |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Service:
1.Device installation;
2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
