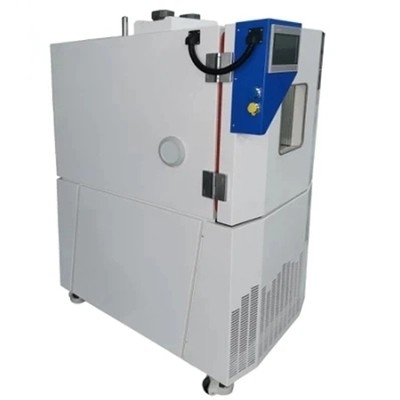

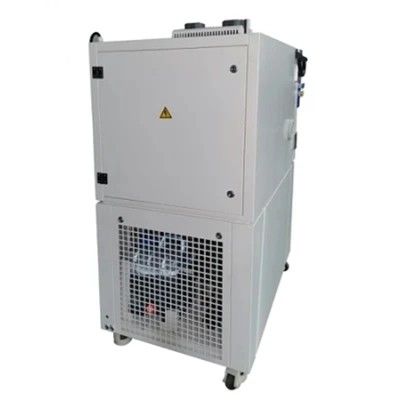

Electronic Stability Environment Constant Temperature Humidity Test Chamber 100L

Large Image : Electronic Stability Environment Constant Temperature Humidity Test Chamber 100L

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE
Model Number:	Environmental Test Chamber

Payment & Shipping Terms:

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-20working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

Electronic Stability Environment Constant Temperature Humidity Test Chamber 100L

Description

External Size:	W78H157D105cm	Controller:	Digital Controller From South Korea
Customized Support:	OEM	Condenser:	Water-cooled Condensing Agent
Internal Material:	1.2mm Thick SUS#304	Temperature Uniformity:	±2.0℃
Power:	220V , 50Hz	Keyword:	Environmental Chambers
High Light:	1.2mm Thick Environmental Test Chamber , 100L Temperature And Humidity Test Chamber

Electronic Stability Environment Climate Constant Temperature And Humidity Test Chamber 100L

Product Features:

(1)The outer case is made up of SUS304 steel plate.CNC processing molding,Beautiful design,Reacionless holder,easy operation

(2)Large LCD touching screen

(3)Adopt micro-computer temperature humidity controller.accuracy and reliability

(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time

(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing

(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outer power cable or signal cable

(7)Adopt high quality fixed PU running wheel in the bottle of machine

(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%

Test Chamber Design Features:

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Performance parameters:

Temperature

Model	G100	G150	G200	G400	PG800	G1000
Inner chamber size W×H×D(cm)	50×50×40	50×60×50	60×75×50	80×85×60	100×100×80	100×100×100
Exterior chamber size W×H×D(cm)	78×157×105	78×167×115	88×185×115	108×195×125	128×210×145	128×210×165
Testing temperature range	0ºC,-20ºC,-40ºC,-70ºC~180ºC
Testing humidity range	10%RH~98%RH
Temp.humi.fluctuation	±0.3ºC;±0.5%RH
Temp.humi.uniformity	±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH
Temp.humi.resolution	0.01ºC;0.1%RH
Heating&cooling time ºC/min	Heat-up:3ºC/min(average),cool-down:1ºC/min(average)
Exterior chamber material	Cold rolled plate + Powder coating
Interior chamber material	SUS#304 Stainless steel
Insulation material	Rigid Polyurethane foam
Circulation system	Centrifugal fan air circulation system
Heating system	SUS# Stainless steel high-speed heater
Humidification system	Electrothermal steam humidification
Dehumidifying	ADP critical dew point cooling / dehumidifying method
Refrigeration system	Finned evaporator + Air(Water) cooling condenser
Controlling system	Touch screen controller
Other components	Vacuum glass observation window
	Test hole(100mm)
	Controller status indicator
	View light
	Compartment shelf (2 freely adjustable)
Safety protection device	Overheat protection circuit breaker
	Humidification system overheat protection
	Compressor overload protection
	Control system overload protection
	overload indicator
	Phase sequence protection
	Water shortage protection
	High voltage and low voltage protection
	Over temperature protection
	Water supply delay protection
	Fan overcurrent protection
Power supply	AC 1ψ220V;3ψ380V 60/50Hz
Customization service	Non-standard or special requirements are all welcome

Electronic Stability Environment Constant Temperature And Humidity Test Chamber 100L 0

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
