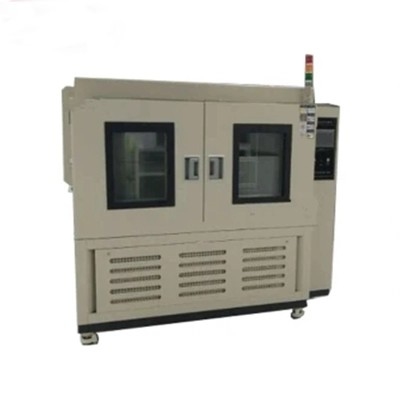

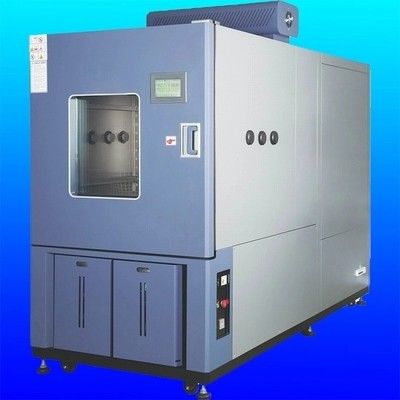

Environmental Stability Temperature Humidity Test Chamber OEM

Environmental Stability Temperature Humidity Test Chamber OEM
Environmental Stability Temperature Humidity Test Chamber OEM Environmental Stability Temperature Humidity Test Chamber OEM

Large Image :  Environmental Stability Temperature Humidity Test Chamber OEM

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE
Model Number: Environmental Test Chamber
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 260 Set / Sets per Month
Contact Now

Environmental Stability Temperature Humidity Test Chamber OEM

Description
Humidity: -50c~150c Controller: Digital Controller From South Korea
Customized Support: OEM Condenser: Water-cooled Condensing Agent
Temperature Range: 30%~98%Rh Temperature Uniformity: ±2.0℃
Power: 220V , 50Hz Keyword: Environmental Chambers
High Light:

SUS304 Temperature Humidity Test Chamber

,

Temperature Humidity Test Chamber OEM

Measuring Equipment Environmental Stability Temperature Humidity Test Chamber OEM



Product Features:


High and low temperature test chamber, also known as environmental testing machine, tests a variety of materials heat, cold, dry, moisture resistance. Suitable for electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and other factories.


Used for reliability test of industrial products at high and low temperature. Test the performance indexes of components and materials of electronic and electrician, automobile and motorcycle, aviation and aerospace, ship weapon, universities and research institutes under the condition of high and low temperature (alternating) cycle.



Performance parameters:



Temperature
Model G100 G150 G200 G400 PG800 G1000
Inner chamber size W×H×D(cm) 50×50×40 50×60×50 60×75×50 80×85×60 100×100×80 100×100×100
Exterior chamber size W×H×D(cm) 78×157×105 78×167×115 88×185×115 108×195×125 128×210×145 128×210×165
Testing temperature range 0ºC,-20ºC,-40ºC,-70ºC~180ºC
Testing humidity range 10%RH~98%RH
Temp.humi.fluctuation ±0.3ºC;±0.5%RH
Temp.humi.uniformity ±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH
Temp.humi.resolution 0.01ºC;0.1%RH
Heating&cooling time ºC/min Heat-up:3ºC/min(average),cool-down:1ºC/min(average)
Exterior chamber material Cold rolled plate + Powder coating
Interior chamber material SUS#304 Stainless steel
Insulation material Rigid Polyurethane foam
Circulation system Centrifugal fan air circulation system
Heating system SUS# Stainless steel high-speed heater
Humidification system Electrothermal steam humidification
Dehumidifying ADP critical dew point cooling / dehumidifying method
Refrigeration system Finned evaporator + Air(Water) cooling condenser
Controlling system Touch screen controller
Other components Vacuum glass observation window
Test hole(100mm)
Controller status indicator
View light
Compartment shelf (2 freely adjustable)
Safety protection device Overheat protection circuit breaker
Humidification system overheat protection
Compressor overload protection
Control system overload protection
overload indicator
Phase sequence protection
Water shortage protection
High voltage and low voltage protection
Over temperature protection
Water supply delay protection
Fan overcurrent protection
Power supply AC 1ψ220V;3ψ380V 60/50Hz
Customization service Non-standard or special requirements are all welcome


Measuring Equipment Environmental Stability Temperature Humidity Test Chamber OEM 0



Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
