Product Details:
|
| Accuracy Grade: | 0.01 | Control: | Computer Control |
|---|---|---|---|
| Drop Height: | 0~1500mm | Weight: | 1000-2000Kg |
| Loading Method: | Dynamic Load | Power Source: | AC380V |
| Max. Specimen Size: | 1300×1300×1300mm | Load Way: | Electronic Load |
| High Light: | CE Free Fall Drop Tester,AC380V Free Fall Drop Tester |
||
Net Wight 300KGFree Fall Drop Tester Heavy Load Power AC 380V
Description:
Drop weight impact testing machine, suitable for all kinds of pipes (PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure water supply pipe, core foam pipe, double wall bellows, PE water supply pipe), the external impact resistance of the sheet, is also suitable for hard plastic sheet. The energy measurement range of the machine is 300J, which can carry out three kinds of tests: A method, B method and C method. Semi-automatic pneumatic clamping device; Falling height computer automatic control and drop hammer lifting;
Electromagnet automatic capture, to prevent the sample from being secondary impact. Drop weight impact testing machine, suitable for all kinds of pipes (PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, low pressure water supply pipe, core foam pipe, double wall bellows, PE water supply pipe), the external impact resistance of the sheet, is also suitable for hard plastic sheet. Products meet the industry standard JB/T9389 drop weight impact testing machine technical conditions and national standards GB/T14152, GB/T14153, GB/T6112; At the same time meet GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, GB/T18477 and other test method standard requirements.

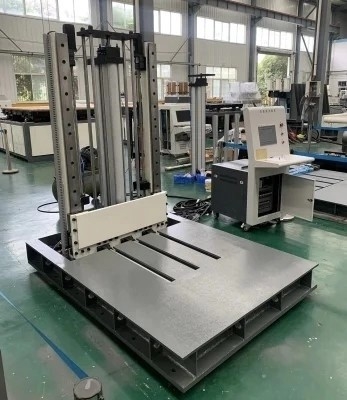

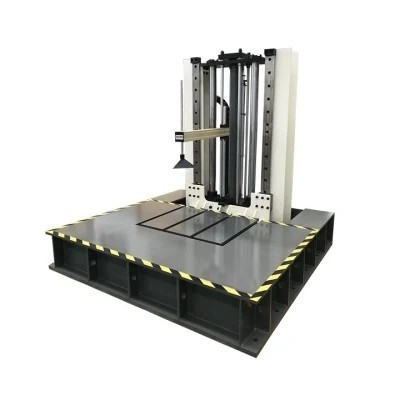

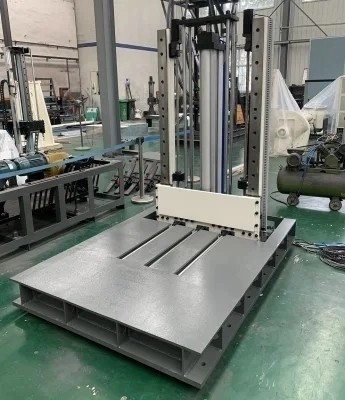

GSKA-40 series zero-distance drop tester mainly simulates the resistance to drop and impact of large and heavy packaging products. It can realize the drop test of the edge, surface and angle of the sample. This equipment is mainly used to evaluate the ability of product or packaging to withstand drops during transportation and loading and unloading, so as to improve product and packaging design.
| Model | GSKA-220A |
| Drop Height | 300~1500mm Adjustable |
| Machine Dimensions | About 1700*1200*2315mm (L*W*H) |
| Display | LED digital screen |
| Max. Specimen Weight | 80KG |
| Thickness of Ground Plate | 10mm (Solid iron plate) |
| Size of Ground Plate | 1700*1200mm |
| Max Size of Specimen | 800*800*1000mm |
| Size of Arm supporter | 160*250*10mm |
| Deviation of Drop Height | ±10mm |
| Test Method | Face, edge and angle drop test |
| Transmission | Electronic |
| Horizontal Deviation of Impact Plate | ≤1° |
| The Deviation of Horizontal Angle in Falling | ≤1° |
| Voltage | AC 380V, 50Hz |
| Power | 1.85KWA |
| Net Wight | 300KG |
| **Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92 | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
FAQ:
1. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
2. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
3. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
4. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
