Product Details:
|
| Warranty: | 1 Year, | Studio Size: | 500*400*500 |
|---|---|---|---|
| Temperature Fluctuation: | ±0.5℃ | Temperature Deviation: | ≤2.0℃ |
| Humidity Range: | 20%~98%RH | Temperature Range: | -60~150°C |
| Power: | Electronic | Humidity Fluctuation: | ±2%RH |
| High Light: | CE Thermal Test Chamber,100L Impact Test Chamber |
||

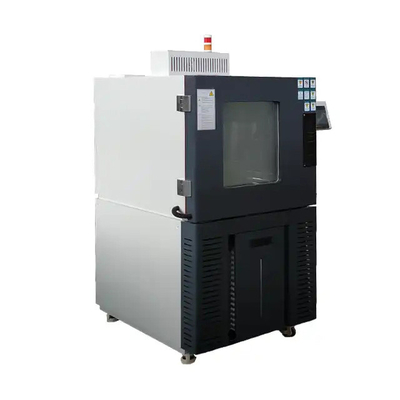

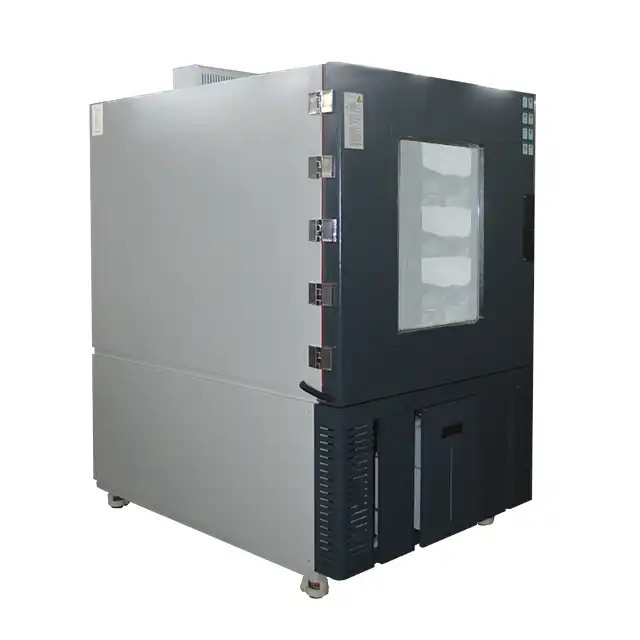

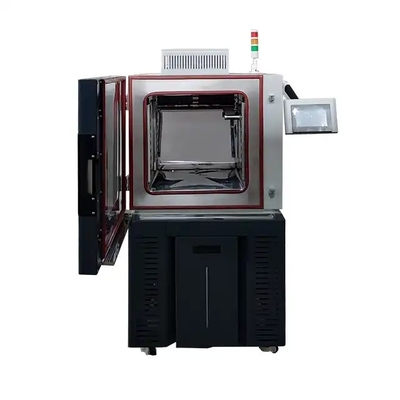

Thermal Chamber The Latest Technology Cold And Heat Impact Test Chamber
product presentation:
Hot and cold impact test is used to test the material structure or composite material, in the instant under the continuous environment of extremely high temperature and extremely low temperature can endure the degree, so as to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest time.
Characteristics of cold and hot impact test chamber
1. The product has beautiful appearance, reasonable structure, advanced technology, exquisite material selection, with simple and convenient operation performance and reliable equipment performance. 2. Super safety protection function: power overload protection, leakage protection, overload control loop, short circuit protection, compressor protection, grounding protection, over temperature protection, alarm sound prompt, etc. 3. Advanced scientific air circulation circulation design, so that indoor temperature is uniform, avoid any dead corners; Complete safety protection device, avoid any possible safety risks, ensure the long-term reliability of equipment 4. The equipment is divided into three parts: high temperature chamber, low temperature chamber and test chamber. It adopts unique heat breaking structure and heat storage and cold storage effect. During the test, the object to be measured is completely static. With 96 test specifications independent setting, impact time 999 hours 59 minutes, cycle cycle 1-999 times can be set, can realize the automatic operation of the refrigerator, the maximum degree of automation, reduce the workload of the operator, can automatically start, stop at any time running: 6. Detection and control of air outlet and return air taste detector, the switch time of damper mechanism is completed within 10 seconds, and the return time is completed within 5 minutes. The impact temperature of cold and hot is 7. A test hole with a diameter of 50mm is provided on the left side of the box, which can be used for wiring test parts of external power load. 8. Adopt the most advanced measuring device, the controller adopts the large color LCD man-machine touch dialogue LCD man-machine interface controller, simple operation, easy to learn, stable and reliable, Chinese and English display the complete system operation, execution and setting program curve.
Performance parameters:
|
Temperature humidity chamber
|
|||||
|
|
GSA-100UA
|
GSA-150UA
|
GSA-250UA
|
GSA-500UA
|
GSA-010UA
|
|
Workroom Dimensions(cm)
|
50*40*50
|
50*50*60
|
60*60*70
|
80*70*90
|
100*100*100
|
|
Inner chamber volume(v)
|
100L
|
150L
|
252L
|
504L
|
1000L
|
|
Outer Diemension W*D*H(cm)
|
98*95*160
|
98*105*170
|
108*112*180
|
128*125*200
|
148*155*210
|
|
Packing Size
|
113*110*175
|
113*120*185
|
123*127*195
|
133*140*215
|
163*160*225
|
|
G.W(kg)
|
360
|
390
|
450
|
480
|
620
|
|
Temperature Range
|
A:-20℃-150℃ B:-40℃-150℃ C:-60℃-150℃ D:-70℃-150℃ E: -100-ambient (no humidity for E)
|
||||
|
Temperature Fluctuation
|
≤ ±0.5℃ (standard) / ≤ ±0.2℃ (optional)
|
||||
|
Temperature Evenness
|
≤ ±2℃
|
||||
|
Temperature Deviation
|
≤ 1℃
|
||||
|
Accuracy
|
0.1℃ ,1.5%R.H (standard) /0.01℃ ,1.5%R.H (optional)
|
||||
|
Humidity range
|
20%~98%R.H/ 10%~98%R.H (optional)
|
||||
|
Humidity Deviation
|
± 2%R.H
|
||||
|
Temperature Rise Speed
|
1.0℃~3.0℃/min
|
||||
|
Temperature Down Speed
|
0.7℃~1.2℃/min
|
||||
|
Time needed for heating
|
RT℃~150℃≤30min
|
||||
|
Time needed for cooling
|
RT℃~-40℃≤60min
|
||||
|
The machine noise
|
≤72dB(A)
|
||||
|
Equipment installed power
|
~3.25KW
|
~3.55KW
|
~3.95KW
|
~5.5KW
|
~6.25KW
|
|
Material
|
Inner Chamber:# SUS304 stainless steel
|
The outer wall:A3 carbon steel plate with plastic spray/ #SUS304
|
|||
|
Wind Cycling Way
|
Centrifugal fan-broadband type forced air ciruculation
|
||||
|
Refrigeration Way
|
Single stage compression refrigeration
|
||||
|
Refrigerater
|
French Tecumseh
|
||||
|
Refrigerats
|
R404A USA Dupont environment protection refrigerant
|
||||
|
Condesing Way
|
Air-cooled or water-cooled
|
||||
|
Heater
|
Nickel Chorme Heating Wire Heater
|
||||
|
Hunidifier
|
Semi-closed steam and wet
|
||||
|
Water supplying way
|
Automatic cycling water supply
|
||||
|
Standard Accessories parts
|
1 Observe window(double-deck cavity toughened glass), 50mm testing hole, PL inner chamber, partition plate, wet and dry bull
gauze, 3 fues, 1 power line
|
||||
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:-Yes, we are manufacturer
Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can
send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send
you new spare parts or provide on-site repair.
2. What’s the delivery term?
A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national
authoritative third-party inspection agency.
5.what about the packing of equipment?
A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the
foam.
