Product Details:
|
| Warranty: | One Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Impact Displacement: | 51mm | Vibration Directions: | Vertical Vibration+Horizontal Vibration |
| Application: | Automobile Storage Battery | Power: | Electronic |
| Moving Coil Weight: | 14kg | Customized Support: | OEM |

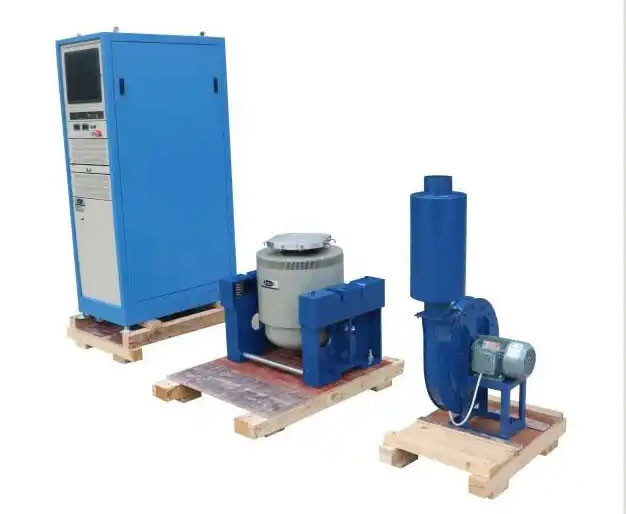

3-Axis Vibration Table Laboratory Battery Vibration Testing Machine
High stability high force shaker electrodynamic vibration generator with magnesium alloy table With ISTA IEC Standard adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.
specification:
| Model | GS-65C |
| Max sine exciting force(Kg.f) | 300 Kg.f |
| Vibration body dimensions | 730*550*650 mm (L*W*H) |
| Table size(mm) | Customized |
| Frequency range(Hz) | 5~2000Hz |
| Weight of vibration body (Kg) | About 450kg |
| Moving coil diameter (mm) | 150mm |
| Max Displacement(p-p)mm | 25mm |
| Max acceleration (m/s2) | 980 m/s2 (100g) (Without load) |
| Max speed(m/s) | 1.6 m/s |
| Working environment | Temperature: 0-40℃,humidity<80%(Non-condensate) |
| Cooling type | Air cooling |
| Power supply | AC 3 phase 380V 50Hz |
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
