Product Details:
|
| Air Velocity: | 25m/s | Power: | 0.75kw |
|---|---|---|---|
| Material: | Stainless Steel 304(t=1.0mm) | HEPA Air Filter: | 610x610x69mm |
| Warranty: | 1 Year | Name: | Air Shower Room |
| Weight: | 500 KG | Brand: | GSKA |
| Highlight: | ROHS Laboratory Air Shower,HEPA Filter Air Shower Room |
||

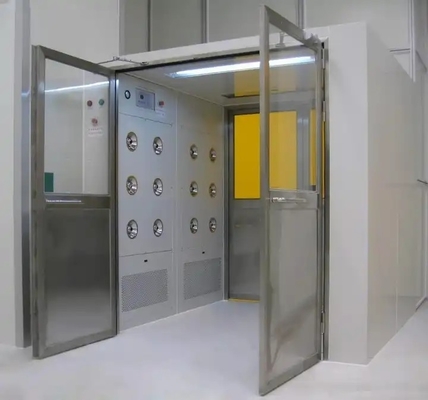

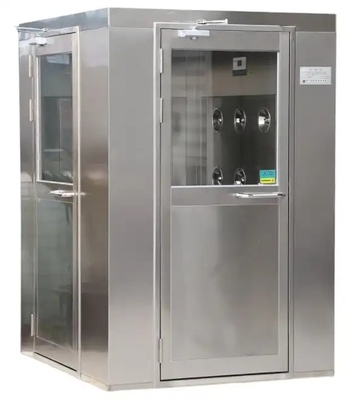

Three Side Clean Room Laboratory Air Shower With HEPA Filter / Air Shower Room
product presentation:
Air shower provide controlled environments for the production of contaminant-free products. Air showers play a vital role in maintaining these clean-critical settings by removing loose particles of contamination from people and products before they enter the clean room.
Self-cleaning air showers help reduce product defects and increase production yields. These devices can also improve the performance of and reduce maintenance needs for the clean room itself by lowering the overall contamination load. Without an air shower’s “pre-cleaning” process, a cleanroom’s air filtration system would have to absorb all contaminants, which would increase energy consumption and maintenance costs.
Clean Air Products designs and manufactures cleanroom air showers in a range of standard air shower sizes and configurations. We have self-cleaning air showers to meet most customer requirements; however, if your cleanroom requires a special or unique entry system, we also provide custom air shower that are built to match your unique specifications.
Technical Specification
Construction:
The entire housing of the air shower is of stainless steel AISI 304L 4B (Transparent Brite). The doors are of laminated safety glass, thickness 8 mm, evenly mounted to the housing (without unsightly aluminium frame), one in front of the other or centrally mounted, electro-magnetically counterlocked opening system allows opening after each dedust cycle. Handles of stainless steel.
Ventilation:
Centrifugal double-suction ventilator, nominal airflow rate 2.400 m³ / h at working pressure of 1.600 Pa.
Filtration:
1 ea. HEPA-Filter, class H14 with high pressure output, according to CEN EN 1822 and 2 ea. class 3G coarse dust prefilter. Access to the filters for exchaning is from the inspection panel above the shower. The prefilter panels are fitted with a rapid-lock system (without screws).
Pressure control:
With analogue Dwyer manometer for supervising the differential pressure at filter surface.
Air jets:
The air is blown through adjustable aluminium air jets into the shower chamber with internal butterfly valve to regulate the air output. The airspeed is manually adjustable in a range of 20 to 30 m/s.
Reduced airspeed:
The air speed reduction starts automatically after each cycle.
Technical Parameters:
| Model | GAS1400-P1 | ||
| External size(mm) (WXDXH) | 1400x1000x2180 | ||
| Work zone (mm)(WXDXH) | 1000x930x1910 | ||
| Persons per cycle | 1-2 person | ||
| Air shower Duration | Factory set at 12 second (adjustable) | ||
| Material | Steel with white color epoxy power-coated or Stainless steel | ||
| Fan consumption | 0.75KWX1 set | ||
| Air flow of fan(m3/h) | 1300m3/h | ||
| Fan run (r/min) | 2800r/min | ||
| Nozzle in stain less steel | 16 pcs | ||
| Wind speed(m/s) | > 22-27m/s | ||
| Noise level(dB) | <62dB | ||
| LED Fluorescent Lamp | 20wx1 | ||
|
HEPA Filter |
Size(mm) | 630X630X69mm | |
| Efficiency | 99.99%@0.3um | ||
| Air velocity | 1000(m3/h) | ||
| Resistance | <220pa | ||
|
Pre-filter |
Size(mm) | 785x385x21 | |
| Efficiency | 75% @ 5um | ||
| Resistance | <30 Pa | ||
| Electrical | Power supply | 380v/50Hz or 380V/60HZ | |
FAQ:
1. who are we?
A:We are based in Guangdong, China, more than 10years in clean room business,. There are total about 51-100 people in our company.
2. how can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
A:clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.
4. why should you buy from us not from other suppliers?
A:1.Has a number of industry clean room design experts. 2.More than ten years experience in cleaning equipment manufacturing. 3.Advanced
production equipment. 4.Through the ISO certification.
5. what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
