Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Frequency: | 5~3500Hz | Random Force: | 30KN |
| Slip Table Material: | Aluminum Alloy | Power: | 40KW |
| Sine Force: | 30KN | Amarture Diameter: | 240mm |
| High Light: | SGS Electric Vibrater,3500Hz Electric Vibrater,30KN Vibration Testing Machine |
||

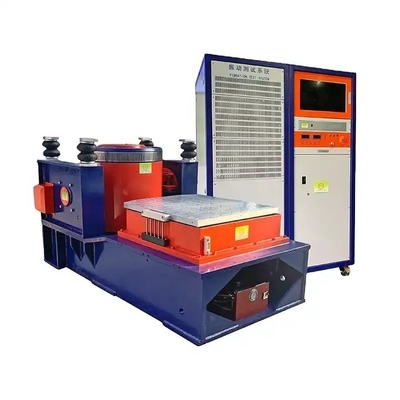

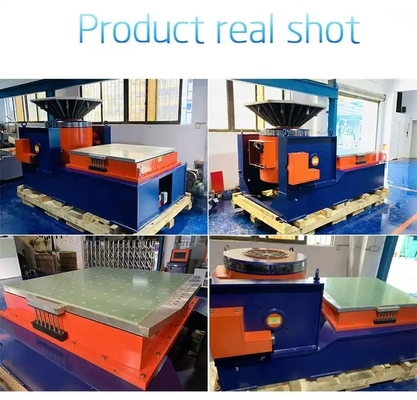

CE Certified Air-Cooled Electric Vibrator Vibration Testing Machine

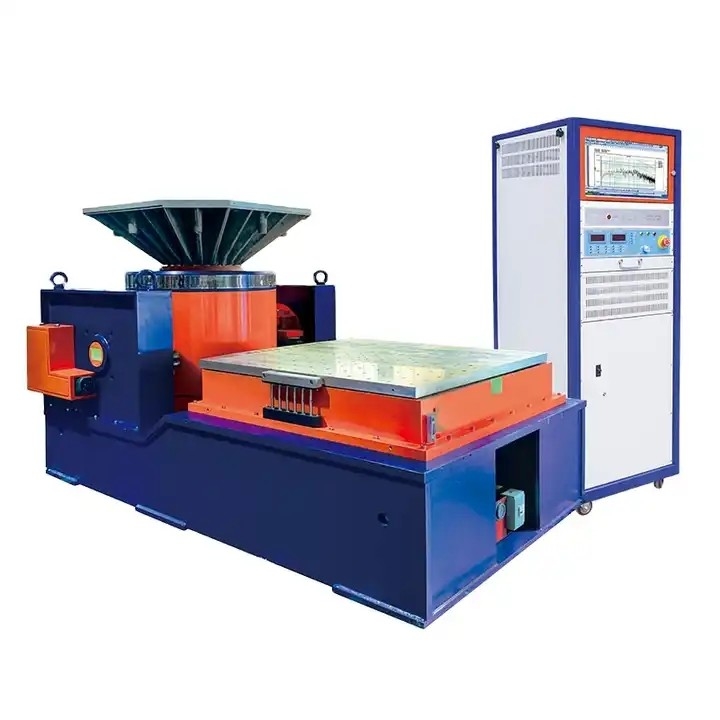

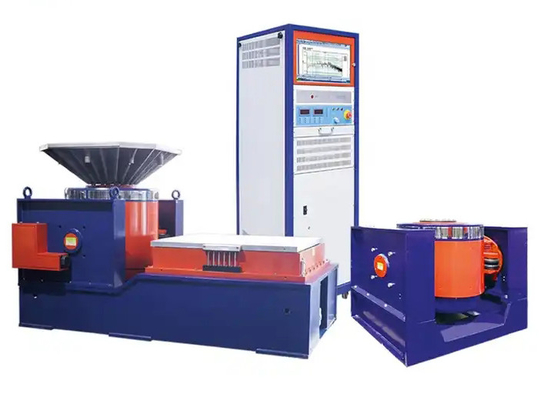

The air-cooled series vibration test system has many advantages such as wide frequency , excellence index ,high reliability,small floor space,convenient movement and simple operation. There are many different types of vibration table available in this series . the excitation force range from 1kN to70kN and the max. Load from 120kg to 1000kg . Widely used in aviation, aerospace, defends, ships communication, automotive, electronics, electrical ,home appliance, and other field .It can provide comprehensive test equipment for climate and mechanics . The system consists of vibration shaker ,power amplifier , cooling fan.
Performance characteristics
- Forced air cooling
- Random and sinusoidal excitation force 1:1
- Displacement peak-to-peak value up to 100mm
- The trunnion airbag has good isolation effect
- Double magnetic circuit design, low magnetic flux leakage, uniform magnetic field
- Sinusoidal excitation force range: 1kN ~ 70kN
- Double sinusoidal impact force (three times more than 2 tons)
- Light dynamic coil, optimized design, strong vibration resistance
- The center airbag has strong carrying capacity and good low frequency performance.
- Configurable horizontal slide
- The fan has good cooling effect and low noise
- The frequency of use can start from 1Hz
System performance
-High first order resonance frequency and the wide using frequency
Optimize the design of the armature skeleton structure, especially strengthen the design of the weak links such as the skeleton force transmission angle plate of the traditional armature structure, which effectively improves the force transmission rigidity. The new structure of the ring cylinder strengthens the glue hole and enhances the stiffness of the winding. Significantly increased the first-order resonance frequency of the moving coil, exceeding the international similar quality
|
Shaker Model |
GS-98Y |
GS-99Y | GS-100Y |
GS-101Y |
|
Frequency Range(Hz) |
5-4500 | 5-3500 | 5-3500 | 5-3000 |
|
Sine force (KN) |
3 | 6 | 10 | 20 |
|
Random force (KN) |
3 | 6 | 10 | 20 |
|
Shock Force(KN) |
6 | 12 | 20 | 40/60∗ |
|
Max. (m/s2) acceleration |
980 | 980 | 980 | 980 |
|
Max. speed (m/s) |
2 | 2 | 2 | 2 |
|
Max.(mmp-p) Displacement |
25/40 | 51 | 51 | 51/76 |
|
Max. load (Kg) |
70/120 | 200 | 200 | 300 |
| Suspension resonance frequency(Hz) | 3 | 3 | 3 | 3 |
|
Shaker body model |
JQ-03 | JQ-06 | JQ-10 | JQ-20 |
| Moving part mass (Kg) | 3 | 6 | 10 | 23 |
|
Armature Diameter (mm) |
150 | 230 | 240 | 335 |
|
Allowable eccentric moment(n*m) |
196 | 300 | 300 | 490 |
|
Outter size (mm) |
720*660* 540 |
790*700* 550 |
900*810* 570 |
1080*990* 860 |
|
Shaker weight
|
454 | 620 | 1150 | 1600 |
|
Power amplifier model |
PA-3 | PA-6 | PA-10 | PA-20 |
|
Max.ouput power (KVA) |
3 | 6 | 10 | 20 |
| Outter size (W*H*D) | 550*950*850 | 550*1570*850 | ||
|
Power amplier weight |
230 | 240 | 290 | 410 |
|
System power consumption (KVA) |
5 | 15 | 20 | 40 |
|
Cooling method
|
Air cooling force | |||
|
Fan model
|
FJ-300 | FJ-1000 | FJ-3000 | |
| Fan flow (m3/min) | 4 | 20 | 40 | |
| Rated air pressure (Kpa) | 1 | 3.5 | 3.5/8.8 | |
|
Fan power
|
0.75 | 4 | 7.5 | |
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
