Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Mass Scope Of Workpiece: | <900kg | Maxcapacity: | 10kn |
| Weight: | 1000-2000Kg | Power Source: | AC380V |
| Max. Speed: | 1.8m/S | Control: | Computer Control |
| High Light: | Electrodynamic Vibration Testing Machine,1.8m/S Vibration Testing Machine,10kn Vibration Tester |
||

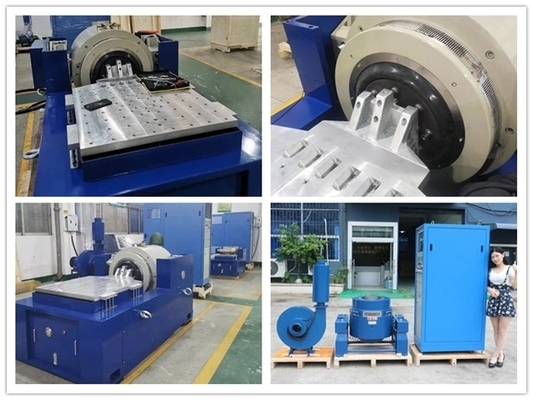

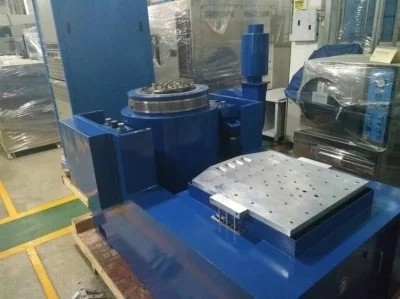

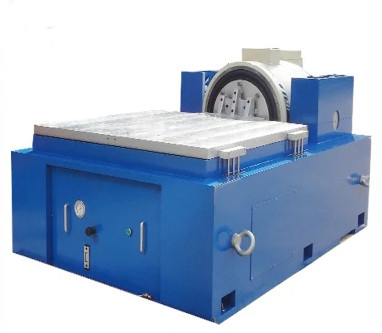

Laboratory Electric High Frequency Vibration Testing Machine Computer Control
product presentation of high frequency vibration testing machine:
Electric high frequency vibration testing machine for laboratory testing is suitable for teaching, scientific research and laboratory environment. GSA-478Q vibration testing machine adopts advanced modern technology and special technology such as double magnetic circuit structure, self-generated skeleton action coil, on-board support and roller bearing, linear guide, and transom isolation. It can complete X, Y, Z triaxial sinusoidal vibration test and broadband random vibration test, and can complete classic (half sine, trapezoidal, sawtooth wave) pulse and impact response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
feature:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
|
Name
|
Electrodynamic High Frequency Vibration Test Machine | ||||||||
|
Model
|
Rated Sine Force (N)
|
Rated Random Force (N)
|
Frequency Range (Hz)
|
Rated Acceleration (m/s2)
|
Rated Speed(m/s)
|
Rated displacement (p-p)mm
|
Max. Loading (Kg)
|
moving coil (Kg)
|
Dimension of Moving coil (mm)
|
|
GSA-478Q
|
6000
|
6000
|
3-3500
|
1000
|
1.6
|
25
|
180
|
6.5
|
Φ230
|
|
GSA-479Q
|
6000
|
6000
|
3-3500
|
1000
|
1.6
|
51
|
250
|
12
|
Φ230
|
|
GSA-480Q
|
10000
|
10000
|
3-3000
|
1000
|
1.8
|
51
|
270
|
14
|
Φ240
|
|
GSA-481Q
|
20000
|
20000
|
3-3000
|
1000
|
1.8
|
51
|
300
|
30
|
Φ320
|
|
GSA-482Q
|
30000
|
30000
|
3-2800
|
1000
|
1.8
|
5l
|
450
|
40
|
Φ450
|
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
