Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model: | GSA-368Y | Power Supply: | AC380V |
| Temperature Range: | -70~150c | Frequency: | 3~2000Hz |
| Humidity Range: | 20%R.H.~98%R.H. | Control: | Computer Control |
| High Light: | Battery Vibration Composite Environment Tester,AC380V Environment Tester,2000Hz Vibration Testing Machine |
||

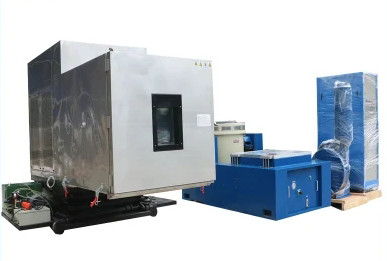

Battery Temperature, Humidity And Vibration Composite Environment Tester
product presentation:
Temperature and humidity vibration tester is a kind of test equipment which can be used to test the reliability and durability of products under different temperature, humidity and vibration conditions. It is composed of temperature control system, humidity control system, vibration control system, data acquisition system and test sample fixture. During the test, the test sample is fixed on the vibration table, and the durability and reliability indexes of the sample under different environments are measured by controlling the temperature, humidity and vibration amount, so as to evaluate the quality and reliability of the product. The test equipment is widely used in electronic, aviation, automobile, medical and other fields to measure the reliability performance of products under actual use conditions.
Features
1 Large LCD touch screen, easy operation.
2 140 patterns program memory, RS-232C computer interface.
3 Independent control systems: Vibration control system, constant temperature control system and constant humidity control system.
4 Mobile orbit design, easy to operate combined test.
5 Safety device
6 RS-232&RS-485 communication interface.
7 CE certification
8 Touch screen controller
Parameters:
|
Name
|
Temperature Humidity Vibration Combined Tester
|
||
|
Model
|
GSA-368Y
|
GSA-369Y
|
GSA-370Y
|
|
Internal Dimension WxHxD(mm)
|
600x850x800
|
1000x1000x1000
|
1500x1500x1500
|
|
External dimension WxHxD (mm)
|
850x1950x2100
|
1300x2200x2400
|
1800x2400x3000
|
|
Temperature Range
|
Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
High temperature:100ºC(150ºC)
|
||
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
|
||
|
Control Accuracy of temperature and humidity
|
±0.5ºC; ±2.5% R.H.
|
||
|
Temperature Rising / Falling Velocity
|
Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.3~1.0ºC/min; (Falling velocity Min.1.5ºC/min is optional) |
||
|
Protection Devices
|
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
|
||
|

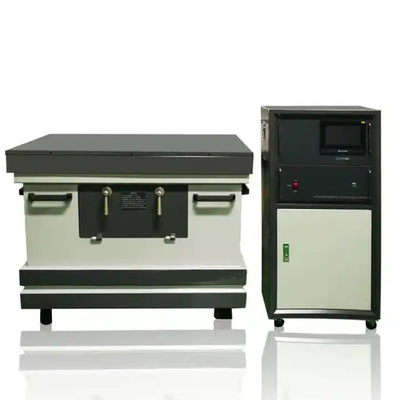

Vibration Test Equipment
|
Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
|
||
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
