Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model: | GSA-652E | Accuracy Grade: | 0.5 |
| Power Source: | AC380V | Maximum Load: | 120kg |
| Display: | Digital | Control: | Computer Control |
| High Light: | Electromechanical Vibration Test Bench,AC380V Vibration Test Bench,120kg Vibration Testing Machine |
||

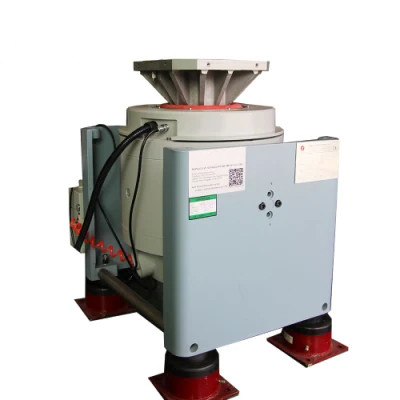

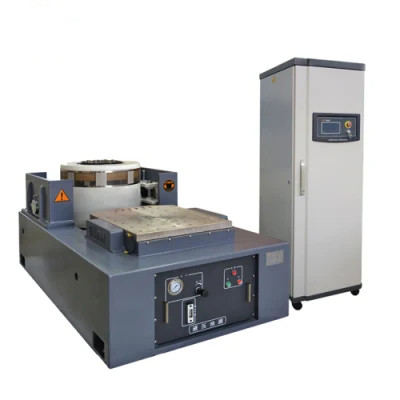

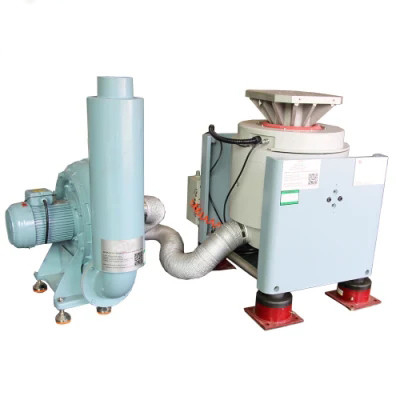

Electromechanical Vibration Test Bench For The Field Of Electronic Communication
product presentation:
Electric vibration test bench is widely used in national defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to detect early faults, simulate the actual working condition assessment and structural strength test. The product has a wide range of applications, wide application area, remarkable test effect and reliability.
The GSA-652E series electric vibration test stand is integrated with vertical and horizontal vibration to achieve different test results and solve the vibration requirements of various products; Precision design and manufacturing, machine base using high quality materials, easy installation, smooth operation, no need to install anchor screws; Control circuit digital control and display frequency, PID adjustment function, make the equipment work more stable and reliable; The control system adopts the original LCD touch screen control technology provided by Hitachi of Japan, the control frequency is more accurate and balanced, and the long-term operation does not drift; Sweep frequency and fixed frequency operation mode, adapt to the test requirements of different industries; Humanized control concept, smooth line appearance design, so that your product quality has a strong and reliable guarantee, technology has reached the international advanced level; Test time.
parameter specification of Electromechanical Vibration Test Bench:
| Transmission Structure | Electromagnetic Shaker |
| Works | Electrodynamic Vibration |
| Axis | 3 Axis |
| Frequency range | 5-2000Hz |
| Amplitude | 10-16hz+-10mm |
| Sweep rate | 1 octave/min |
| Number of axes | 3(X-Y-Z) |
| Duration | 90 min 2 cycles per axis |
| Supporting Device | Coil Spring |
| Customized | Customized |
| Rated Sine Force (N) | 1000 to 3500000 |
| Frequency Range (Hz) | 3 to 3500 |
| Rated Velocity(M/S) | 1.2 to 1.8 |
| Function | High Frequency Vibrating Screen |
| Usage | Experiments Shaker |
| Object | Electronic Parts |
| Running Track | Circular Vibrating Screen |
| Condition | New |
| Rated Random Force (N) | 1000 to 3500000 |
| Rated Acceleration(M/S2) | 400 to 1000 |
| Rated Displacement (P-P, mm) | 25 to 91 |
| Power | AC380V ,3 pH 3 Lines |
| Warranty | 1 Year |
| Certificate | CE |
FQA:
Q: What about the transportation?
A: We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your company by express.
Q: What about the Voltage?
A: We can change the voltage as your requirement, you can confirm the voltage to us before delivery.
Q: What about the after-sale service?
A: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems.
Overseas training, installation is available.
Q: What about the delivery date?
A: The test machine most are in stock,can delivery within 15-30 working days after received the payment.We can also accept the urgent order for
prompt shipment.
Q: What is the payment term?
A: Payment by T/T, L/C ,Western Union
