Product Details:
|
| Warranty: | 14 Months, 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-678 | Display: | Digital |
| Weight: | 100-500Kg | Size(L*W*H): | 675*560*660mm |
| Power Source: | AC220V | Control: | Computer Control |
| Highlight: | AC220V Vibration Testing Machine,600kgf Vibration Testing Machine,Electromagnetic Vibration Tester |
||

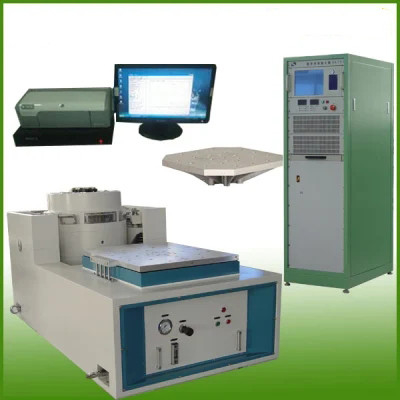

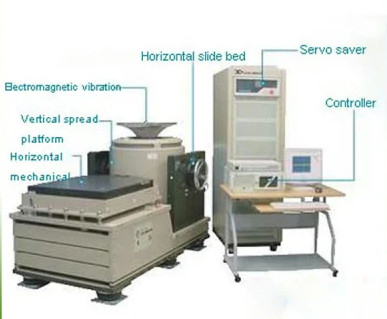

Laboratory Vibration Equipment Electronic Vibration Testing Machine Model GSA-N41
product presentation:
|
Sine thrust
|
600kgf
|
|
Random thrust
|
600kgf
|
|
Impact thrust
|
1200kgf
|
|
Frequency Range
|
5～2000Hz
|
|
Continued displacement
|
51mm
|
|
The impact of displacement
|
51mm
|
|
Maximum speed
|
2m/s
|
|
Maximum acceleration
|
981m/s2
|
|
Moving coil diameter
|
Φ150mm
|
|
Allow eccentric moment
|
＞190N.m
|
|
Load connection point
|
6 piont
|
|
Equivalent mass of moving parts
|
6kg
|
|
Countertops screw size (standard)
|
M8
|
|
Screw layout table (diameter, circumference)
|
8 on Φ100mm,8 on Φ,200mm.
|
|
Axial isolation frequency
|
＜3Hz
|
|
Maximum load
|
120Kg
|
|
Magnetic flux leakage
|
＜1mT
|
|
Dimensions (without packaging)(L×W×H)
|
1600mm×985mm×850mm
|
|
Vibration table Weight
|
1850kg
|
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while
considering of sea transportation, we can extend 2 months for our customers. If your machine doesn’t work, you can send E-mail to us and we will
try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or
provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are
in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put
your logo on the machine.
