Product Details:
|
| Warranty: | 1 Year, | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA-63W | Control: | PID |
| Preheating Temperature: | 60.00°C~200.00°C | Power: | Electronic |
| Ambient Temperature: | 0°~30° | Temperature Uniformity: | ±2.00°C |
| Highlight: | PID Thermal Cycling Chamber,SUS304 Thermal Cycling Chamber,380V Test Chambers |
||

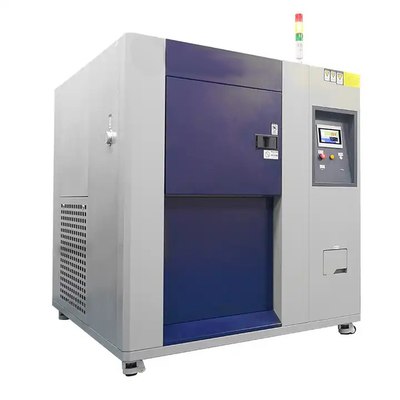

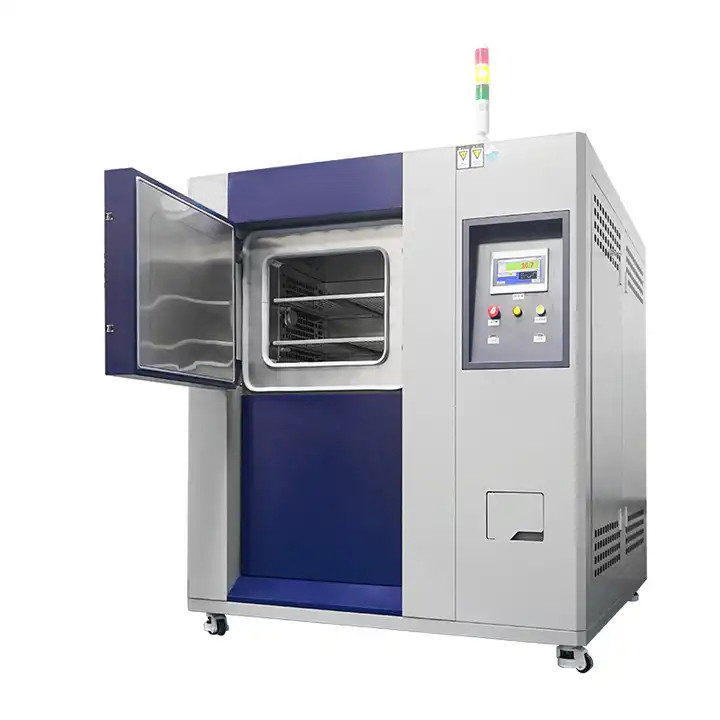

Cold And Hot Testing And Thermal Cycling Chamber For Scientific Research
product presentation:
thermal cycling chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.
Features:
1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
7. With RS-232C communication port for connecting PC to control, record and save test report.
| Test method | Pneumatic operated door switch 3 chambers |
| Inner dimension (W*D*H) | 500*450*450mm |
| External dimension (W*D*H) | 1380*1370*1980mm |
| Temperature range | -40 ~ +80℃ |
| High temperature chamber pre-heating range | 60 ~ 100℃ |
| Heating speed | +60→+100℃ about 10 minutes |
| Low temperature chamber pre-cooling range | -65 ~ 0 |
| Cooling speed | Ambient →-65℃ about 65 minutes |
| Temperature deviation | ±3℃ |
| Thermal recovery time | Within 5 minutes |
| External material | Antirust processing cold-rolled steel sheet |
| Internal material | SUS#304 stainless steel |
| Thermal insulation material | Polyurethane foam and fiberglass |
| Coolant | R404A / R23 |
| Cooling method | Air cooling |
| Pressure | 0.2 - 0.5Mpa |
| Power supply | Three phase, 380V, 50Hz |
1.Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
