Product Details:
|
| Material: | Stainless Steel | Voltage: | 3p 380V 50Hz |
|---|---|---|---|
| Air Shower Time (S): | 0-99s | Customized Support: | OEM |
| Exiting Velocity: | ≥25m/s | Power Supply: | AC, 3Ф-380/50Hz |
| Weight: | 400kg | Shower Time: | 0~99s (Adjustable) |
| High Light: | Air Shower Room,Air Shower System |
||

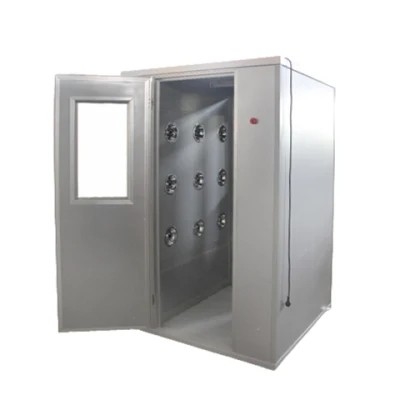

Automatic Sliding Door Cleaning Equipment Air Shower Room, Efficient Cleaning
product presentation:

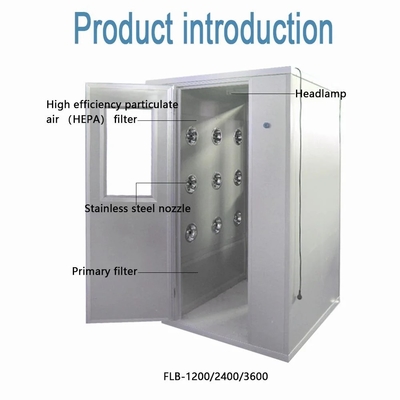

Advantages
1.Outer casing is made of high-quality cold-rolled steel plate treated by electrostatic spray, floor plate is made of stainless steel sheet.
2.Use double-speed air fans of high pressure and airflow, with features of small size, large air volume, high pressure, low noise etc.
3.Consists of high-quality primary filter and mini-pleat HEPA panel filter..
4.Stainless steel nozzles, air outlet velocity ≥ 25m/s.
5.Omron infrared sensors.
6.Single swinging door made of stainless steel, equipped with OPEL door closer.
7.Programmable logic control system; imported electrical components; automatic blowing through sensing; blowing time (0~99s adjustable) displayed via LED.
Material Instructions
1.Outer casing material: Outer wall is cold-rolled steel plate (electrostatic spray and surface powder) with matte white; the internal wall is made of stainless steel sheet; the floor is laid with stainless steel plate; the entrance and exit are equipped with stainless steel single door separately. The whole cabinet is equipped with OPEL door closer which is imported from Germany.
2.Control system: Adopt full-computer voice control system. The doors work under electronic interlock (if one doors is open, the other one will be locked). Air blowing works automatically with OMRON Infrared Sensor. The blowing time is controlled by LED time counter, adjustable from 0s to 99s.
3.Blowing way: Both doors are closed when blows; stainless steel nozzles; air outlet velocity ≥25m/s.
4.The fan: Specified centrifugal fan; power: 380V/50HZ.
5.Filtration system: Mini-pleat HEPA filter work together with primary efficiency panel filter, overall efficiency reaches 99.99%@0.3um.
6.Lighting: Small round LED energy saving lamp.
Application
Air shower series is applied to clean workshop and serve as corollary equipment for small fabricated clean rooms. It is used to blow off the surface dust of staff and carried things entering the clean room. At the same time, air shower also plays the role of air brake to prevent access of unclean air to clean area. It is effective equipment for personal purification and preventing outdoors air from polluting indoors.
| Common Specifications | ||||
| Model | GSA-X517 | GSA-X518 | GSA-X519 | GSA-X520 |
| Type | 1-man/2-side blowing | 1-man/1-side blowing | 2-man/2-side blowing | 2-man/1-side blowing |
| HEPA Efficiency | ≥99.9%@0.5μm | |||
| Shower Time | 0~99s (Adjustable) | |||
| Exiting Velocity | ≥25m/s | |||
| Nozzle Diameter, Qty | Φ38mm, 16pcs | Φ38mm, 8pcs | Φ38mm, 32pcs | Φ38mm, 16pcs |
| Power Supply | AC, 3Ф-380/50Hz | |||
| Power Dissipation | ≤ 800W | ≤ 400W | ≤ 1600W | ≤ 800W |
| External Dimensions (W×D×H) (mm) |
1300×1000×2150 | 1100×900×2150 | 1300×2000×2150 | 1100×1800×2150 |
| Shower Area (W1×D1×H1) (mm) |
800×920×2000 | 800×820×2000 | 800×1920×2000 | 800×1720×2000 |
| Weight | ~400kg | ~350kg | ~700kg | ~600kg |
| HEPA Specification | 610×610×70 (mm) 2pcs |
610×610×70 (mm) 1pcs |
610×610×70 (mm) 4pcs |
610×610×70 (mm) 2pcs |
