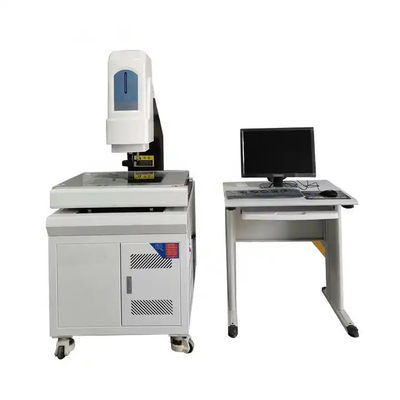

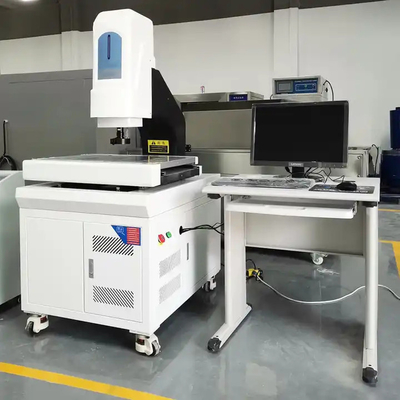

Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m

Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m
Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m

Large Image :  Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m

Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA-T65
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T,
Supply Ability: 150 Set / Sets per Month

Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m

Description
Place Of Origin: Guangdong,China Warranty: 1 Year
Glass Table Size(mm): 350*250mm Instrument Precision(μm): X,Y (3+L/200)μm
Certificate: CE ISO Weight (KG): 250KG
Actual Run Size(mm): 300*200*200mm Total Video Magnification(X): 30~190X
High Light:

Video Measurement System

,

Visual Measuring System

3D Vision Measurement System With Resolution Of 0.001m, Necessary In Laboratory



product presentation:



The advanced 3D vision measurement system independently developed by our company is a Machine that measures various parameters of objects by using optical principles. Common vision measurement systems include laser scanners, goniometer, microscopes, projectors, etc., which have been widely used in precision automatic measurement in mechanical, electronic, mold and other fields. Designed specifically for rapid and precise measurement and batch testing in fields such as machinery, electronics, and molds,


The characteristics of the GSA-T65 vision measuring Machine are as follows:



1. Utilize the multi point positioning function with clear observation to measure points, lines, circles, arcs, ellipses, and rectangles, improving accuracy.

2. Coordinate measurement, translation, and coordinate correction.

3. Directly create measurement data into AutoCAD drawings and general 3D model files

4. Record user programs, edit and execute commands.

In terms of metrology, this machine can test width, length, height, thickness, and straightness,

Flatness, verticality, roundness, coaxiality, etc.



Specification

item
value
Warranty
1 year
Customized support
OEM, ODM, OBM
Place of Origin
China

Guangdong
Brand Name
GSKA
Model Number
GSA-T65
Power
Electronic
Usage
Video measuring instrument
Machine size (mm)
740*660*970mm
Glass table size(mm)
350*250mm
Actual run size(mm)
300*200*200mm
The camera
High definition Color 1/3 "CCD camera
Raster resolution
0.001m0.001mmm
Instrument precision(μm)
X,Y (3+L/200)μm
Total video magnification(X)
30~190X
Weight (KG)
250KWeight (KG): 250KGG
Product name
measuring test machine





Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m 0



Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m 1

Necessary In Laboratory 3D Vision Measurement System With Resolution Of 0.001m 2
