Product Details:
|
| Warranty: | 1year | Model: | GSA-87R |
|---|---|---|---|
| Dimension(mm)(L*W*H): | 600*740*890 | Measuring Range(mm)(X*Y*Z): | 300*200*200 |
| Measuring Accuracy (μm): | 2.5+L/100 | Repeatability (μm): | 2.5 |
| Weight (kg): | 190kg | Linear Scale Resolution: | 0.5μm |
| High Light: | Vision Measurement System,Optical Vision System |
||
The Optical Vision System Accurately Measured The Linear Resolution Of 0.5μM
product presentation:

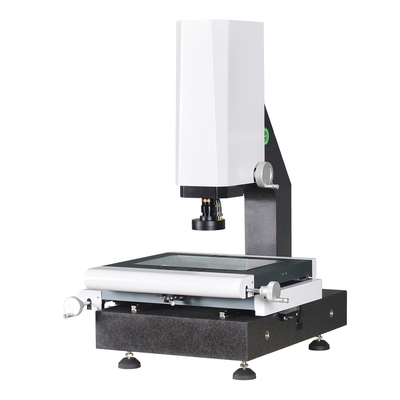

GSA Series optical measuring machine is an important instrument used in your product’s quality control process. It ensures your product’s dimension accuracy, makes your products more competitive.
High accuracy hardware configuration
The series is configured with high accuracy linear guideway, provides unique dynamic performance and end-user experience. Also includes full programmable 8 sections LED surface illumination ring, 3-axis 0.0005mm high-resolution linear transducers, and powerful measuring software.
Reverse engineering

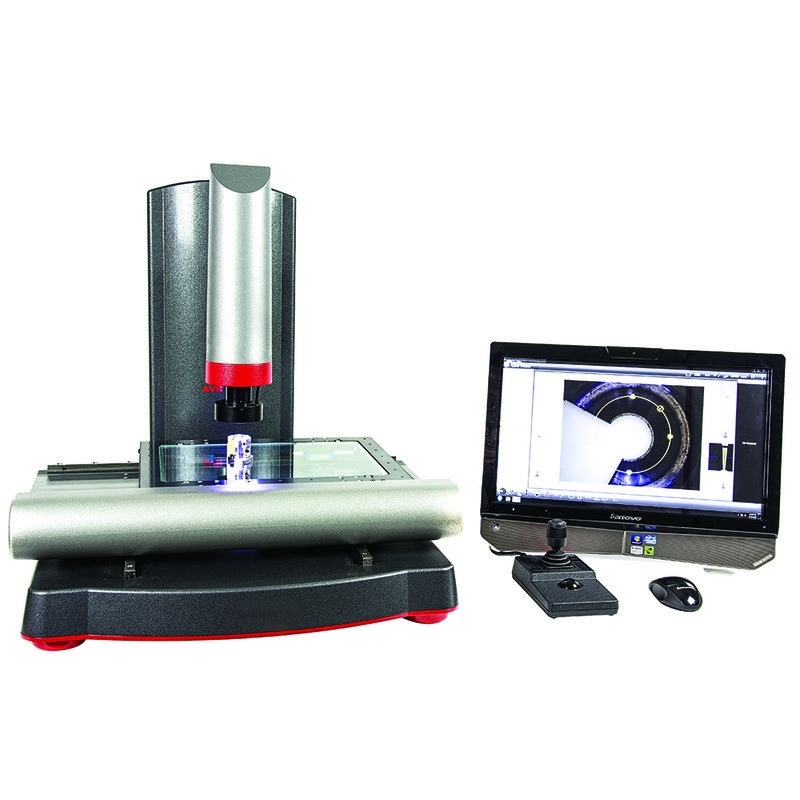

GSA series VMM is compatible with Renishaw touch probe as an optional configuration. Users can easily achieve 2D and 3D measuring functions in one machine. The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be output as 3D drawings for reverse engineering.
Compact and accurate
GSA series VMM is the most common model for most of the factories manufacturing accurate parts. It is fit for small quantity samples measuring applications. 3 axis manual control, with user-friendly software, allows the operator to manage using the machine in a very short time.
SPECIFICATION
| Items | GSA-87R | |
| Dimension(mm)(L*W*H) | 600*740*890 | |
| Measuring range(mm)(X*Y*Z) | 300*200*200 | |
| Measuring Accuracy (μm) | 2.5+L/100 | |
| Repeatability (μm) | 2.5 | |
| Weight (kg) | 190kg | |
| Image and Measuring | CCD | 1.2million pixel digital camera |
| Lens | Manual dented zoom lens 0.7 -4.5X(optional electronic magnification signal feedback lens) | |
| Magnification | 18-195X(For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.1~1.3mm(For reference only, with different camera and lens combination, the value will be different) | |
| Working distance | 90mm | |
| Linear scale resolution | 0.5μm | |
| Driving system | X/Y/Z axis manual control | |
| Illumination |
Programmable LED8 zone ring surface light, LED bottom parallel light (optional: coaxial light)
|
|
