Product Details:
|
| Warranty: | 1year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Traveling Range X,Y-axis: | 100x100m(4inx4in) | Traveling Range Z-axis: | 100mm (4in) |
| Measuring Accuracy (U1XY): | ±(5+0.08L)µm L = Measuring Length (mm) | CCD Camera: | Megapixels Color CCD Camera |
| Stage Glass Size: | 6.7×6.7in 170x170mm | Max.loading: | 5kg 11lbs |
| High Light: | Vision Measurement System,Optical Vision System |
||

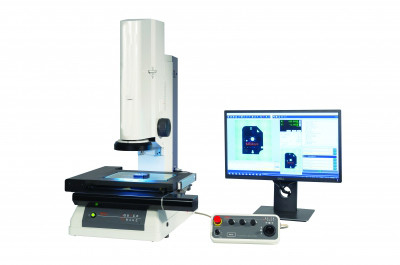

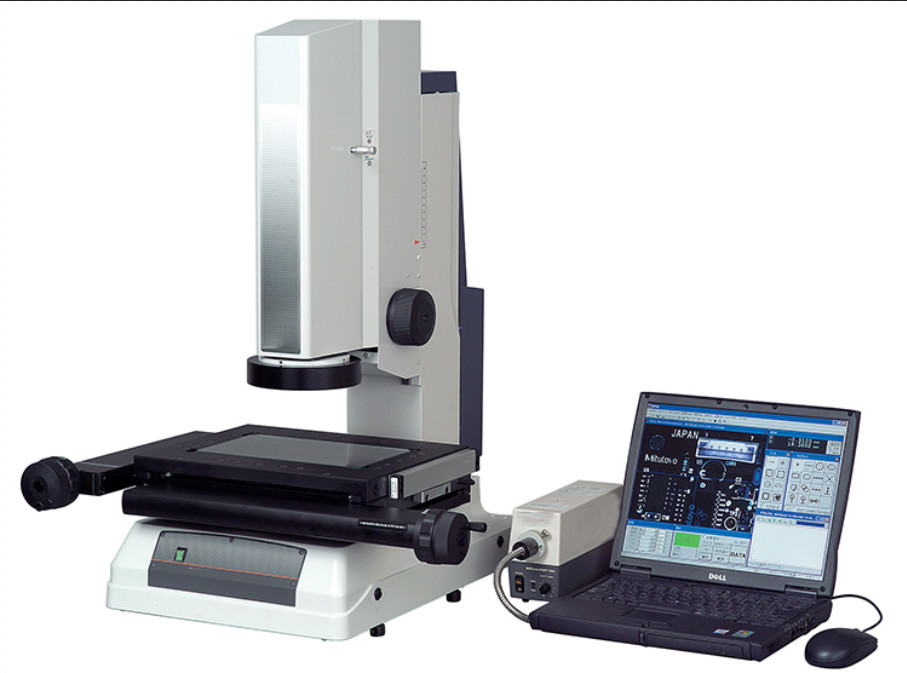

2D Vision Measurement Instrument Rapid Imaging Model GSA-T361
product presentation:
The GSA series visual measurement system features a wide field of view (32 x 24 mm), focal depth (up to ± 11mm), fully electric XY stage, and the latest QIPAK software, providing users with automatic measurement throughout the entire stage travel range. The telecentric optical system, combined with the image stitching function of QIPAK V6.1, can achieve fully automatic wide area measurement. The GSA series offers 0.2X optical magnification, measurement accuracy of (3.5+0.2L) µ m, and measurement range options of 200mm x 100mm, 200mm x 170mm, and 300mm x 170mm.
The measurement results are directly displayed in real-time on the video image, and the tolerance judgment is clear at a glance. With higher measurement accuracy, Quick Image ensures first-class quality and functionality. The high brightness and megapixel color camera with built-in LED lighting can use high-resolution images for observation and measurement.
| Model | GSA-T361 | GSA-T362 | GSA-T363 |
| Traveling Range X,Y-axis | 100x100m(4inx4in) | 100x100m(4inx4in) | 200x100mm(8inx4in) |
| Traveling Range Z-axis | 100mm (4in) | 100mm (4in) | 100mm (4in) |
| Measuring mode | High-resolution mode and Normal mode | High-resolution mode and Normal mode | High-resolution mode and Normal mode |
| Accuracy(on monitor) | ±5µm(high resolution mode),±8µm(normal mode) QI-B models ±2.7µm (high resolution mode)±4µm(normal mode) | ±5µm(high resolution mode),±8µm(normal mode) QI-B models ±2.7µm (high resolution mode)±4µm(normal mode) | ±5µm(high resolution mode),±8µm(normal mode) QI-B models ±2.7µm (high resolution mode)±4µm(normal mode) |
| Repeatability | 1µm (high-resolution mode), ±2µm (normal mode) QI-B models:0.7µm (high resolution mode)1µm(normal mode) | 1µm (high-resolution mode), ±2µm (normal mode) QI-B models:0.7µm (high resolution mode)1µm(normal mode) | 1µm (high-resolution mode), ±2µm (normal mode) QI-B models:0.7µm (high resolution mode)1µm(normal mode) |
| Measuring accuracy (U1XY) | ±(5+0.08L)µm L = measuring length (mm) | ±(5+0.08L)µm L = measuring length (mm) | ±(5+0.08L)µm L = measuring length (mm) |
| CCD Camera | Megapixels color CCD camera | Megapixels color CCD camera | Megapixels color CCD camera |
| Optical system | Magnification- 0.2X, double telecentric system Working distance-90mm Depth of focus-±0.6mm (high-resolution mode), ±11mm (normal mode) |
Magnification- 0.2X, double telecentric system Working distance-90mm Depth of focus-±0.6mm (high-resolution mode), ±11mm (normal mode) |
Magnification- 0.2X, double telecentric system Working distance-90mm Depth of focus-±0.6mm (high-resolution mode), ±11mm (normal mode) |
| Illumination | Contour Surface 4-quadrant LED | Contour Surface 4-quadrant LED | Contour Surface 4-quadrant LED |
| Stage glass size | 6.7×6.7in 170x170mm | 6.7×6.7in 170x170mm | 9.5×5.5in 242x140mm |
| Max.loading | 5kg 11lbs | 5kg 11lbs | 10kg 22lbs |
| Mass | 132lbs 60kg | 132lbs 60kg | 140lbs 64kg |
