Product Details:
|
| Core Components: | PLC, Motor | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Voltage: | 380V / 220V | Dimension(L*W*H): | 1000*1440*2100 |
| Warranty: | 1 Year | Application: | Cleanroom Entrance |
| Weight: | 370 KG | Power: | 2.2kw |

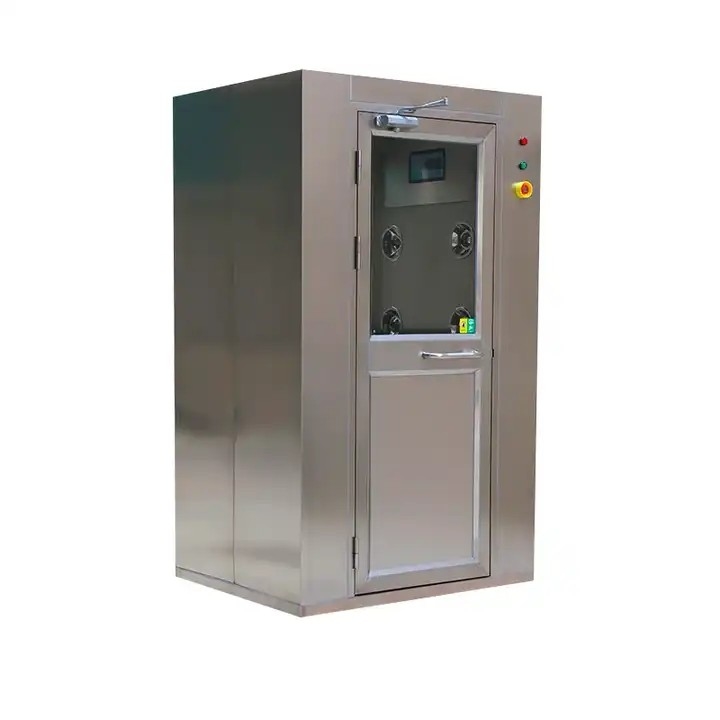

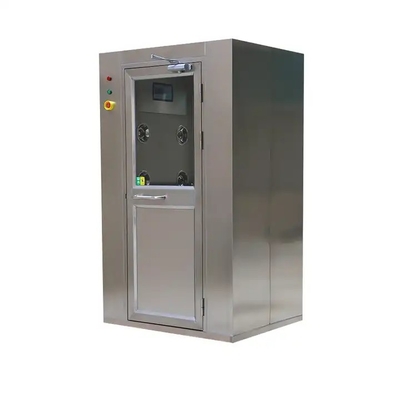

370kg Stainless Steel Air Shower For Factory Clean Room Entrance
product presentation:

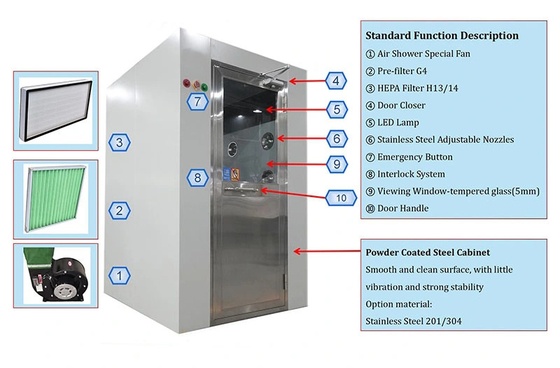

1. The air shower room is composed of box, stainless steel door, high efficiency filter, fan, distribution box, nozzle and other major components.
2. The bottom plate of the air shower is made of steel plate bending and welding, and the surface is milky white baking paint.
3. The box is made of high quality cold rolled steel plate, the surface is treated with electrostatic spray, beautiful and generous, and the inner bottom plate is made of stainless steel plate, which is resistant to friction and easy to clean.
4. The main materials and dimensions of the box can be customized according to customer requirements.
product usage:
The air shower room is the necessary purification equipment for personnel to enter the clean room dust-free workshop. It has strong versatility and can be used with all clean rooms and clean workshops. When the staff enter the workshop, they must pass through this equipment, spray the strong clean air from all directions by the rotating nozzle to the human body, effectively and quickly remove the dust, hair, hair crumbs and other sundries attached to the clothes. It can reduce pollution problems caused by people entering and leaving clean rooms. The two doors of the air shower room are electronically interlocked, which can also play the role of the air lock room to prevent the polluted and unpurified air from entering the clean area. Prevent the staff to bring hair, dust, bacteria into the workshop, to meet the strict dust-free purification standards of the work site, to produce high quality products
|
Model
|
GSA623
|
GSA624
|
|
External Dimension(W*D*H)(mm)
|
1000*1440*2100
|
1200*1600*2100
|
|
Internal Dimension (W*D*H)(mm)
|
800*900*1950
|
800*1400*1950
|
|
Air Velocity(m/s)
|
≥25
|
|
|
HEPA Filter
|
H14,570*570*70mm,2pcs
|
H14,570*570*70mm,2pcs
|
|
Nozzle(pcs)
|
12
|
18
|
|
Power(kw)
|
2
|
2.5
|
|
Applicable Person
|
1
|
2
|
|
Door Material
|
Powder Coated Steel Plate/SUS304(Optional)
|
|
|
Case Material
|
Powder Coated Steel Plate/Full SUS304(Optional)
|
|
|
Power Supply
|
AC380/220V,3 Phase,50/60Hz(Optional)
|
|
