Product Details:
|
| Application: | Cleanroom Entrance | Voltage: | AC220/380V |
|---|---|---|---|
| Warranty: | 2 Year | Air Velocity: | 30m/S ± 5% |
| Case Material: | Powder Coated Steel Plate/Full SUS304(Optional) | Dimension(L*W*H): | 1100*1000*2080mm |
| Place Of Origin: | Donggaun,china | Door Material: | Powder Coated Steel/SUS304(Optional) |
ce certification of high quality clean air shower for catering factory
product presentation:

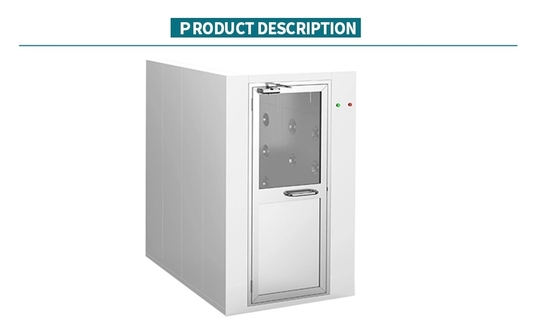

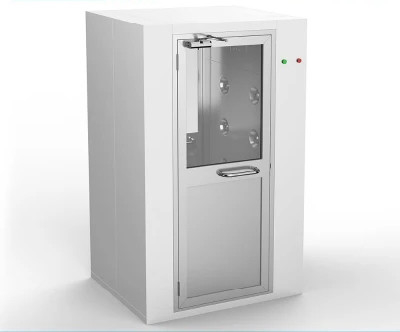

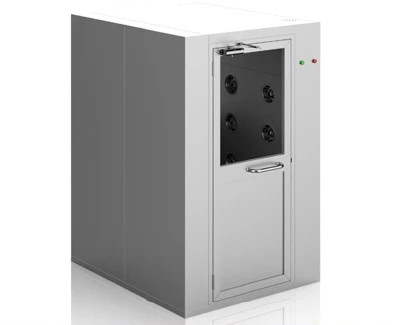

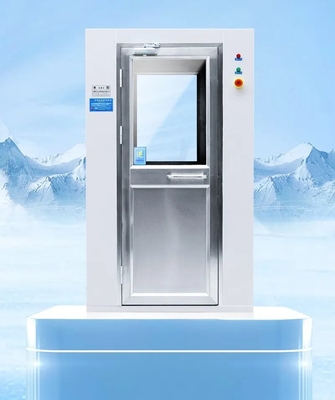

1. The air shower room is composed of box, stainless steel door, high efficiency filter, fan, distribution box, nozzle and other major components.
2. The bottom plate of the air shower is made of steel plate bending and welding, and the surface is milky white baking paint.
3. The box is made of high quality cold rolled steel plate, the surface is treated with electrostatic spray, beautiful and generous, and the inner bottom plate is made of stainless steel plate, which is resistant to friction and easy to clean.
4. The main materials and dimensions of the box can be customized according to customer requirements.
Air shower room, also known as the air shower room, air shower door, dust bathroom, air shower machine, air shower room, air disinfection room, mainly composed of fan, high efficiency filter, control circuit, box and other components. Air shower room is the necessary purification equipment at the entrance of clean room. The working principle of the air shower is to first use the high efficiency air filter to filter the air flow, and then through the rotating nozzle 360° spray people and materials, so as to remove the dust on the surface of people and materials. The dusty air is then passed through the primary and HEPA filters and re-circulated. The whole design of the air shower room uses the dynamic fluid science, the internal automatic infrared induction shower. Double door interlock, air shower room at work, the double door closed, intelligent voice prompts the operation of the shower.
Technical Parameter:
| Model | GSA-65 | GSA-66 | GSA-67 |
| Type | Single person Double blow | Double person Double blow | Three person Double blow |
| Operator number | 1-2 | 3-4 | 3-6 |
| Body material (external) | : 1.2mm cold rolled steel plate (Electrostatic paint) : 304/316# stainless steel (mirror/sanding) |
||
| Internal material | 304/316# stainless steel (mirror/sanding) | ||
| Channel bottom plate | 304/316# stainless steel | ||
| Door | 5mm tempered glass window | ||
| Interlocking function | Adopts fully automatic control operation, double-door electronic interlocking, induction automatic blowing. | ||
| Filter purification efficiency | ≥0.5um at ≥99.99% | ||
| HEPA Filter Size&Qty | 610*610*100x1 | 610*610*100x2 | 610*610*100x3 |
| Nozzle wind speed | 23-25m/s | ||
| Nozzle | 304/316# stainless steel | ||
| Number of nozzle | 12 | 24 | 36 |
| Air shower time | 0~99 seconds (adjustable) | ||
| Circulating air volume | 800~1000m³/h | ||
| Power | 3φ 380V-50Hz | ||
| Maximum power | 0.75KW | 0.75KW*2 | 0.75KW*3 |
| Outside size (W*D*H) |
1100*1000*2080mm | 1100*2000*2080mm | 1240*3000*2180mm |
| Working size (W*D*H) |
730*900*1930mm | 730*1900*1930mm | 790*2900*1950mm |
