Product Details:
|
| Usage: | Dust-Free Clean Room | Voltage: | AC220V/AC380V |
|---|---|---|---|
| Warranty: | 2 Year | Air Velocity: | 30m/S ± 5% |
| Case Material: | Powder Coated Steel Plate/Full SUS304(Optional) | Dimension(L*W*H): | 1100*1000*2080mm |
| Authentication Certificate: | Ce | Door Material: | Powder Coated Steel/SUS304(Optional) |

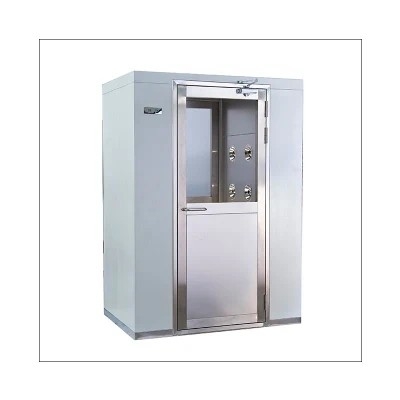

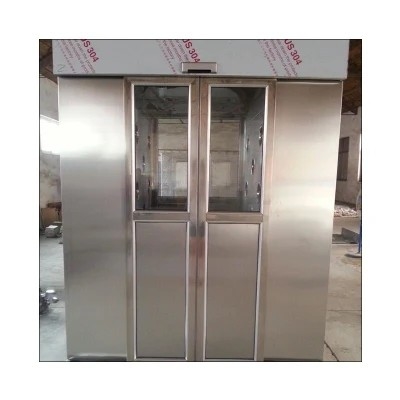

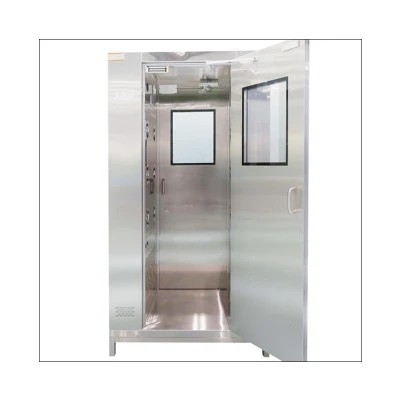

Automatic Push Door Stainless Steel Air Shower With Air Interlocking System
product presentation:
This Air shower is a purifying equipment ,It's Install in the partition between clean room and unclean room,It's used for shower and removing dust when personnel or objects entering into the clean room,It Can Effectively reduce dust source
Shower Method: singel side shower, single-side shower, double-side shower, three-side shower, top shower.
Removes surface-deposited particles from personnel prior to entering the cleanroom
|
Model
|
GSA-101
|
GSA-102
|
GSA-103
|
GSA-104
|
|
Applicable Number of People
|
1
|
2-4
|
4-5
|
5-6
|
|
Air Shower Time
|
0- 99s (Adjustable)
|
|||
|
Number of Nozzle
|
12 (Two Sides)
|
24 (Two Sides)
|
36 (Two Sides)
|
48 (Two Sides)
|
|
Mouth Diameter of Nozzle
|
Φ 30 mm
|
Φ 30 mm
|
Φ30 mm
|
Φ30 mm
|
|
Speed of Air Flow at the Nozzle
|
>25m/s
|
>25m/s
|
>25m/s
|
>25m/s
|
|
Dimension of High Efficiency Air Filter (mm)
|
600×600×120
|
600 ×600×120
|
600×600×120
|
600×600×120
|
|
Dimension of Air Shower Area (mm)
|
800×900×1960
|
800×1900×1960
|
800×2900×1960
|
800×3900×1960
|
|
Outside Dimension (mm)
|
1400×1000×2100
|
1400×2000×2100
|
1400×3000×2100
|
1400×4000×2100
|
|
Power Supply :380V,50HZ, we can made nonstandard voltage for different country.
|
||||
|
Maximum Power Consumption
|
1.1KW
|
2.2KW
|
3.3KW
|
4.4KW
|
FAQ:
1. who are we?
A:We are based in Guangdong, China, more than 10years in clean room business,. There are total about 51-100 people in our company.
2. how can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
A:clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.
4. why should you buy from us not from other suppliers?
A:1.Has a number of industry clean room design experts. 2.More than ten years experience in cleaning equipment manufacturing. 3.Advanced
production equipment. 4.Through the ISO certification.
5. what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
Contact Person: Ms. Kris Zhang
Tel: 0086-0769-85914911
