Product Details:
|
| Usage: | Dust-Free Clean Room | Voltage: | AC220V/AC380V |
|---|---|---|---|
| Air Shower Time (s): | Default Setting Is 10s, 10-99s (adjustable) | Air Velocity: | 30m/S ± 5% |
| Case Material: | Powder Coated Steel Plate/Full SUS304(Optional) | Dimension(L*W*H): | W2000xL2000xH2180 |
| Weight: | 500 KG | Material: | Stainless Steel |
| High Light: | AC220V Air Shower Room,Rotary Nozzle Air Shower Room |
||

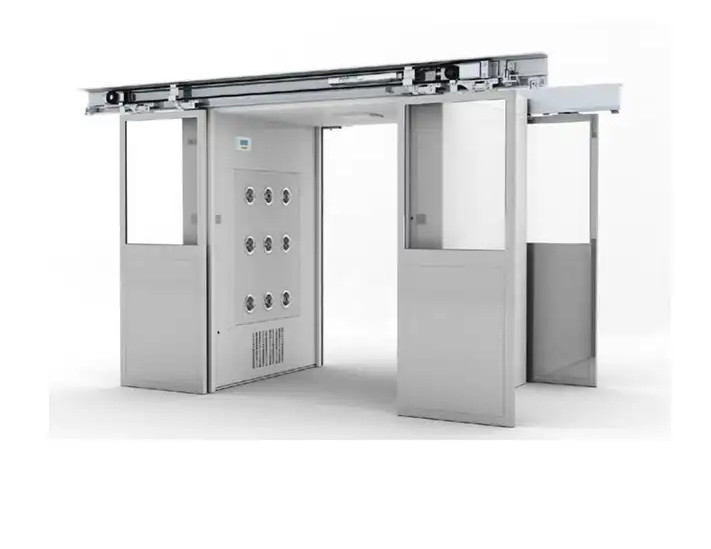

Rotary Nozzle Automatic Double Door Cargo Shower Channel Air Shower Room
product presentation:
Cargo shower channel is also often called cargo shower room, cargo shower door, cargo air shower room, cargo air shower channel and so on. The air shower room is used to blow the dust particles carried by the body, the same as the goods shower type to clean the dust particles and impurities on the surface of the goods. It is a large clean equipment channel for staff and large goods to enter and leave the clean space, which can effectively reduce the dust on the surface of people or goods and reduce the amount of dust in the clean space. Cargo shower channel is generally used in the need of large equipment such as forklift trucks, trucks in and out of the place, as a channel in the appearance of its length, width and depth than the common air shower room covers an area of large.
Characteristics of air shower room in cargo shower channel:
1. The cargo air shower channel box is generally made of stainless steel, stainless steel outside the paint plate, which has the advantage of being beautiful and generous at the same time compared with the purification plate color steel plate and other materials to have a long service life.
2. If the automatic translation door is used, the translation door is made of high quality stainless steel, with beautiful glass doors, rolling shutter door material with hard
3. The cargo shower channel adopts automatic induction control system operation, double door interlock device, infrared induction automatic shower, humanized voice prompt and so on
4. Automatic opening and closing can facilitate the entry and exit of personnel and goods, while satisfying the purification work, greatly improving the work efficiency.
5. In the installation design, the goods shower channel adopts the modular design, the structure is set up reasonably, and the piecewise assembly method is adopted. On the one hand, it is convenient to install and transport, on the other hand, the design scheme can be changed according to the customer needs.
Technical Parameters:
| Model | GA501 | GA502 |
| Dimensions (mm) | W2000×L2000×H2180 | W2000×L3000×H2180 |
| Air shower dimensions (mm) | W1200×L2000×H1980 | W1200×L3000×H1980 |
| Nozzle air speed (m/s) | 18-22 | |
| Nozzle quantity | 24 | 36 |
| Cargo shower time (s) | Default setting is 10s, 10-99s (adjustable) | |
| Cabinet material | 1.2mm cold-rolled steel sheet, with surface powder-coated | |
| Door material | Stainless steel | |
| Auto-door mechanism | 2 sets | 2 sets of door covers |
| HEPA filter size | 610*610*69*4 | 610*610*69*6 |
| Filtration efficiency | 99.99at0.3μm | |
| Fan power (W) | 750*4 | 750*6 |
| LED light power | 12*2 | 12*3 |
| Power supply voltage | 380V50Hz | |
