Product Details:
|
| Product Name: | Air Shower | Voltage: | AC220/380V |
|---|---|---|---|
| Origin: | China | Air Velocity: | ≥25m/s |
| Case Material: | Powder Coated Steel Plate/Full SUS304(Optional) | Power: | 2000/2500 |
| Certificate: | CE SGS ROHS UL | Door Material: | Powder Coated Steel/SUS304(Optional) |
| High Light: | AC380V Air Shower Room,25m/s Air Shower Room |
||

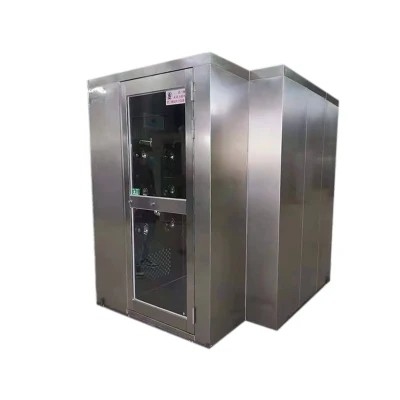

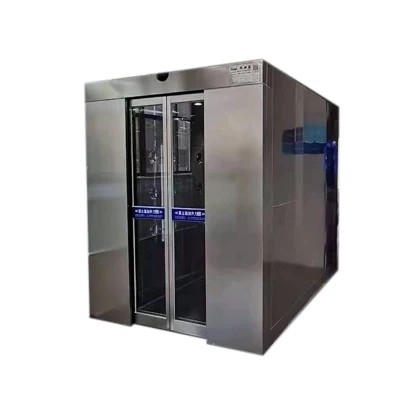

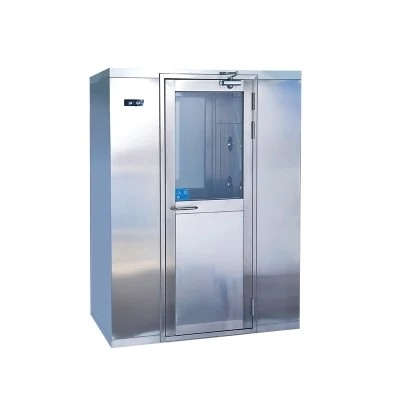

Factory Dust-Free Equipment Clean Shed Explosion-Proof Air Shower Room
product presentation:
1. The air shower room is composed of box, stainless steel door, high efficiency filter, fan, distribution box, nozzle and other major components.
2. The bottom plate of the air shower is made of steel plate bending and welding, and the surface is milky white baking paint.
3. The box is made of high quality cold rolled steel plate, the surface is treated with electrostatic spray, beautiful and generous, and the inner bottom plate is made of stainless steel plate, which is resistant to friction and easy to clean.
4. The main materials and dimensions of the box can be customized according to customer requirements.
product usage:
The air shower is a necessary passage for entering the clean room. Air shower room is used for purifying
equipment of pharmaceutical,health, raw and cooked food processing, precision instruments, meters ,aviation
and other industries .Before the operators enter the workshop, the hair, dust, and other debris attached on the
operator's garment surface can be removed when they pass through air shower. It is more beneficial to meet
the hygienic standard,and improve the quality of products. Ours machinery is a professional air shower production
manufacturer ,entered the industry for 15 years by the users of the trust and support. The main product air shower
is exported to all over the world,with EU CE certification,quality assurance and the best price.
|
Model
|
GSA-302
|
GSA-303
|
GSA-304
|
|
|
Outer Dimensions
W×D×H(mm) |
1400×1000×2100
|
1400×1500×2100
|
1400×3000×2100
|
|
|
Inner Dimensions
W1×D1×H1(mm) |
800×910×1980
|
800×1410×1980
|
800×1910×1980
|
|
|
Speed (m/s)
|
22~28
|
|||
|
Nozzle No.
|
20
|
24
|
32
|
|
|
Structure
|
Cabin: 304 Stainless steel
|
|||
|
Door: Sliding door or manual swing door
|
||||
|
Lighting
|
LED, built-in type
|
|||
|
Dust Collection Efficiency
|
Over 99.9% 0.5 μm
|
|||
|
HEPA Dimension ×Quantity
|
2 pcs Combustion blower
per unit air flow is 2550 m³/h, pressure 1150 pa.
|
4 pcs Combustion blower per unit air flow is 2550 m³/h, pressure 1150 pa.
|
6 pcs Combustion blower per unit air flow is 2550 m³/h, pressure 1150 pa.
|
|
|
Showering Time
|
0-99s adjustable(FACTORY SETTING 10S)
|
|||
|
Power Supply
|
380V 50Hz, 3Phase/220V 60Hz 1Phase,can be customized
|
|||
