Product Details:
|
| Model NO.: | GSA201 | Curtain: | PVC |
|---|---|---|---|
| Light: | UV Light | Air Velocity: | 30m/S ± 5% |
| Case Material: | Powder Coated Steel Plate/Full SUS304(Optional) | Dimension(L*W*H): | 1100*1000*2080mm |
| Clean Time: | 0-99 Seconds | Material: | Stainless Steel |
| High Light: | UL Air Shower Room,PVC Curtain Air Shower Room |
||

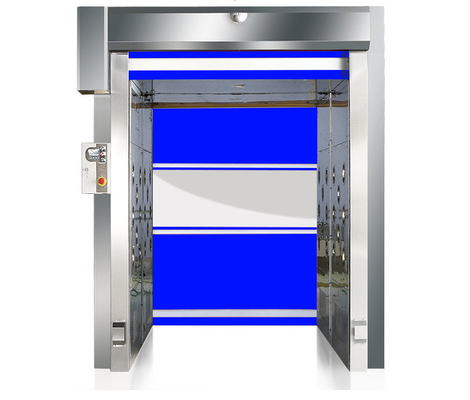

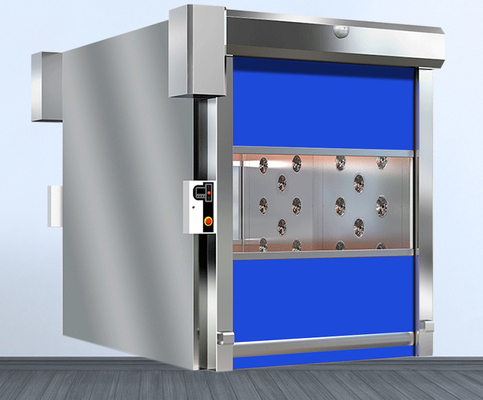

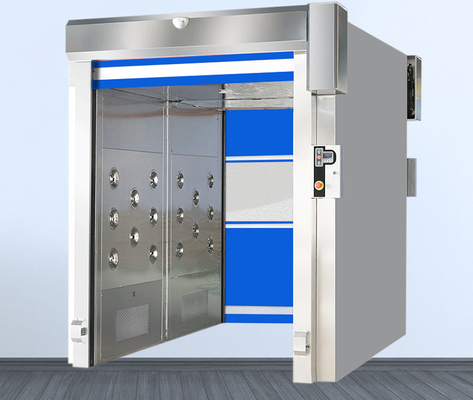

Fast Shutter Door Air Shower Room For Clean Workshop Entrance
product presentation:
Fast shutter door air shower is a kind of local air purification device, is also the first step in the construction of clean workshop, its role is to enter the air shower room before the personnel or goods enter the clean workshop, the dust and other impurities on the surface of the body or object blow off, the filter is blown through two layers of filter, repeated until clean. In this process, the fast shutter door air shower not only plays the role of purification, but also plays the role of buffer room. When clean, the air in the air shower room is clean, which lays a good foundation for the establishment of the car-free workshop.
Fast rolling shutter doors have many advantages, such as temperature maintenance, wind and dust prevention, fire and flame retardant, odor prevention, sound insulation and noise reduction, insect prevention and health, natural lighting and so on. They are simple to install, stable to run and affordable. They are widely used in many industries and many places, and can effectively improve their cleanliness. Another advantage of fast rolling door is energy saving. Fast switching can isolate the trouble caused by external temperature difference, reduce energy consumption and improve the overall production efficiency of enterprises
|
Model
|
GSA201
|
GSA202
|
GSA203
|
GSA204
|
|
Applicable Number of People
|
1
|
2-4
|
4-5
|
5-6
|
|
Air Shower Time
|
0- 99s (Adjustable)
|
|||
|
Number of Nozzle
|
12 (Two Sides)
|
24 (Two Sides)
|
36 (Two Sides)
|
48 (Two Sides)
|
|
Mouth Diameter of Nozzle
|
Φ 30 mm
|
Φ 30 mm
|
Φ30 mm
|
Φ30 mm
|
|
Speed of Air Flow at the Nozzle
|
>25m/s
|
>25m/s
|
>25m/s
|
>25m/s
|
|
Dimension of High Efficiency Air Filter (mm)
|
600×600×120
|
600 ×600×120
|
600×600×120
|
600×600×120
|
|
Dimension of Air Shower Area (mm)
|
800×900×1960
|
800×1900×1960
|
800×2900×1960
|
800×3900×1960
|
|
Outside Dimension (mm)
|
1400×1000×2100
|
1400×2000×2100
|
1400×3000×2100
|
1400×4000×2100
|
|
Power Supply :380V,50HZ, we can made nonstandard voltage for different country.
|
||||
|
Maximum Power Consumption
|
1.1KW
|
2.2KW
|
3.3KW
|
4.4KW
|
