Product Details:
|
| Place Of Origin: | China | Air Shower Time: | 0-99s Adjustable |
|---|---|---|---|
| Dimension(L*W*H): | 1200*1500*2300 | Air Velocity: | 30m/S ± 5% |
| Weight: | 350 KG | Power: | 600W*2 |
| Warranty: | 1 Year | Base Plate Material: | Stainless Steel |
| High Light: | 600W Air Shower Room,30m/S Air Shower Room |
||

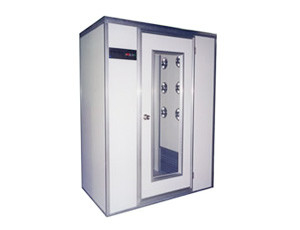

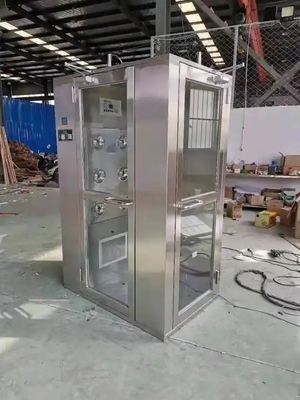

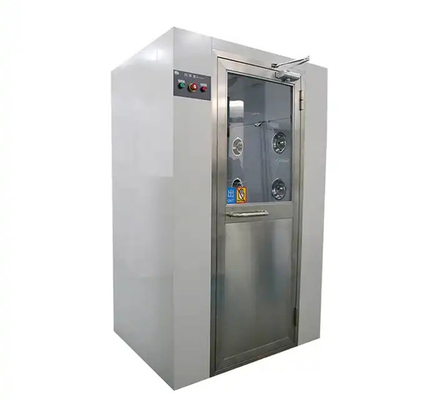

Intelligent Air Shower Room With Voice System, Equipment Status Monitoring
product presentation:
Intelligent voice air shower room with voice prompt system, in the shower by the automatic voice system prompts people to complete the whole process of blowing dust removal in order to achieve effective purification effect, the clean air filtered by the high efficiency filter from the rotating nozzle from all directions to the body, effectively and quickly remove dust particles, The dust particles after removal are filtered by the primary and high efficiency filters and then recycled to the air shower area.
Intelligent speech features:
Automatic control, electronic interlock, double door lock when blowing, infrared induction automatic blowing. Stainless steel semi-glass door automatic door closers, transparent Windows, inner low plate is made of stainless steel; Software test controller, LED display and set blowing time, range of 0~99 seconds adjustable, internal use of circular involute duct, high wind speed, low noise.
1, humanized control panel design, clear indicator light, to give clear air shower flow instructions. Soft key touch type time relay;
2, high cleanliness, high wind speed: the use of primary, high efficiency filter two-stage filtration system, no diaphragm low resistance high efficiency filter, filtration efficiency is :99.99%, to ensure the purification level. Equipped with stainless steel multi-angle adjustable nozzles, double vortex shell outer rotor large air volume low noise fan, air nozzle outlet wind speed up to 25m/s above, blowing to the human body wind speed of 18m/s above.
3. Modular structure, the air shower box adopts modular design scheme, which can be assembled into various lengths of air shower size according to actual needs. A typhoon shower room is composed of one or more sections of the air shower unit, for large volume of the air shower equipment, can be divided into multiple modules, making the production, transportation, installation especially convenient and fast;
4, high performance, high sealing: imported electronic components, stable and reliable operation performance, advanced noise reduction and mute device system and the use of EVA sealing material, high sealing performance.
|
Model
|
GSA-621
|
GSA-622
|
GSA-623
|
GSA-624
|
|
|
External Dimension
|
1290×1000×2130
|
1290×1000×2130
|
1290×2000×2130
|
2000×2000×2130
|
|
|
Internal Work Zone
|
790×860×1910
|
790×860×1910
|
790×1860×1910
|
790×4860×1910
|
|
|
Suitable Number
|
1-2 person
|
1-2 person
|
2-4 person
|
Tunnel type
|
|
|
Noise Level(dB)
|
＜62
|
＜62
|
＜62
|
＜62
|
|
|
Stainless Steel Nozzle
|
6pcs
|
12pcs
|
24pcs
|
72pcs
|
|
|
Wind Speed
|
≥25m/s
|
≥25m/s
|
≥25m/s
|
≥25m/s
|
|
|
Prefilter
|
Size
|
775×380×17×1pc
|
775×380×17×2pcs
|
775×380×17×4pcs
|
775×380×17×8pcs
|
|
Efficiency
|
G4
|
G4
|
G4
|
G4
|
|
|
HEPA Filter
|
Size
|
610×610×120×1pc
|
610×610×120×2pcs
|
610×610×120×4pcs
|
610×610×120×8pcs
|
|
Efficiency
|
99.99%@0.3µm
|
99.99%@0.3µm
|
99.99%@0.3µm
|
99.99%@0.3µm
|
|
|
Fluorescent Lamp
|
20W×1
|
20W×2
|
20W×4
|
40W×4
|
|
|
Power Supply
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
|
Total Power
|
780W
|
780W
|
780W
|
780W
|
|
