Product Details:
|
Core Components: | PLC, Motor | Place Of Origin: | Guangdong, China |
---|---|---|---|
Voltage: | 380V / 220V | Dimension(L*W*H): | 1160*1000*2050 |
Warranty: | 1 Year | Air Speed: | 20-25m/s |
Weight: | 370 KG | Power: | 2.2kw |
High Light: | 25m/s Shower Room,2.2kw Shower Room |

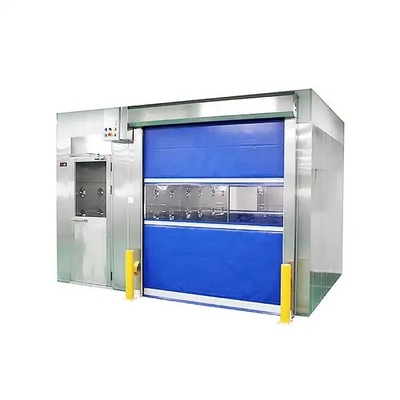

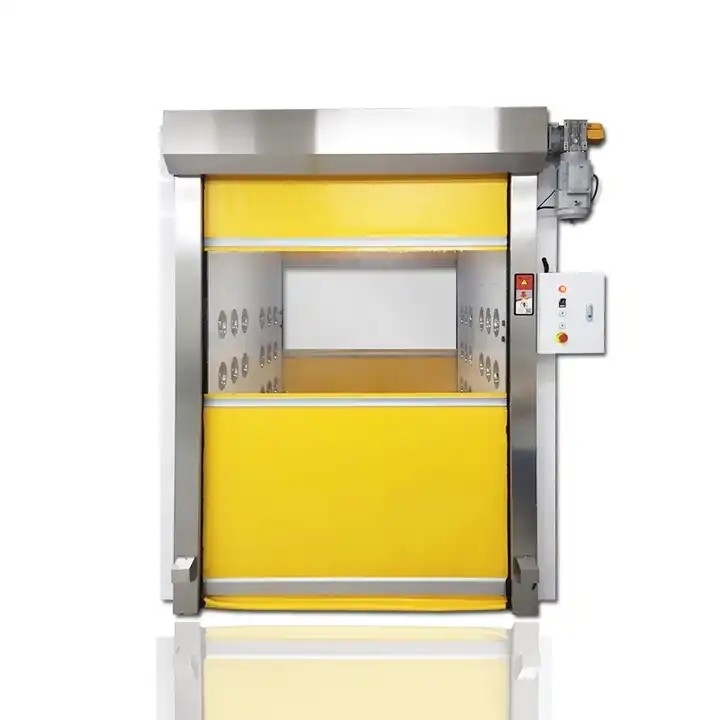

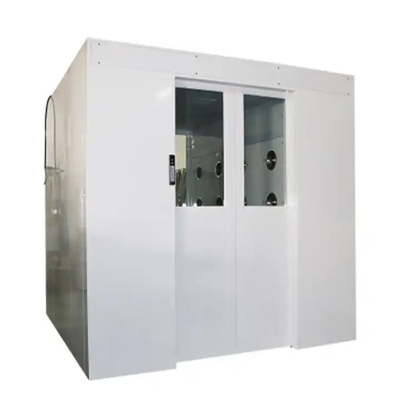

Cargo Special Shower Room Can Be Used For Large Plant Equipment
product presentation:
The two doors of the cargo shower room are interlocked electronically, which can also play the role of the air lock room to prevent unpurified air from entering the clean room. The high-tech intelligent voice cargo shower room has a voice prompt system, which is prompted by the automatic voice system when blowing. The humanized voice prompt gives a person a kind of friendly feeling, and achieves an effective purification effect. The clean air filtered by the high efficiency filter is sprayed to the surface of the object from all directions by the rotating nozzle, effectively and quickly remove dust particles, and the air with dust particles is recycled to the air shower area by the primary and high efficiency filter.
product characteristic:
1, the material of the goods shower box: the goods shower box is usually made of high-quality cold steel plate baking paint, stainless steel, color steel plate and other materials;
2. The material of the floor of the cargo shower room: generally, it is made of high-quality stainless steel material that is easy to clean and resistant to wear;
3, the material of the goods shower door body: its raw materials are basically cold steel plate baking paint, stainless steel, color steel plate, etc.;
4, cargo shower nozzle: generally use adjustable mirror light stainless steel nozzle, diameter of about φ25mm;
5, the cargo shower filter: generally the selection of multistage filter equipment, filtering power can reach 99.99%;
6, cargo shower door control system: equipped with stainless steel electric plug lock, safe and reliable;
7, the cargo shower room low noise centrifugal fan: the wind speed can reach 22- 25m/s, for the useful eradication of dust provides a high guarantee;
Model
|
GSA-5B
|
GSA-5C
|
GSA-5D
|
GSA-5H
|
External size
|
1160*1000*2050
|
1290*1500*2050
|
1390*2000*2050
|
1390*2500*2050
|
Internal size
|
790*1000*1950
|
790*1500*1950
|
790*2000*1950
|
800*2500*1950
|
Power supply
|
AC 220V or AC 110V , 50/60Hz
|
|||
Consumed power
|
1100W
|
1500W
|
2200W
|
2500W
|
No of nozzles
|
12pcs
|
18pcs
|
24pcs
|
48pcs
|
Air speed
|
20-25m/s
|
|||
Air shower time
|
0-99s adjustable, standard is 10s
|
|||
Hepa filter
|
H13 or H14, 99.99%@0.3um or 99.995%@0.3um
|
|||
Material
|
SUS201,SUS304,Baking finished optional
|
|||
NO.of person capacity
|
1-2
|
2-3
|
3-4
|
4-6
|
Remark
|
Specification can be customized according to customer 's requirement
|
