Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door

Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door
Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door

Large Image :  Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Air shower room
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: PP film and wooden case,or as required.
Delivery Time: 30-50working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door

Description
Control System: Touchable Screen Board Noise: Less Than 75db
Per-filter: 755x450x17 Air Speed: More Than 23m/s
HEPA Filter: 595x595x80mm HEPA: 99.99%@0.3UM
Weight: 500 KG Brand: GSKA
High Light:

Interlock Swing Door Cleanroom Air Shower

,

75db Air Shower Room

Automatic Blow Cleanroom Air Shower / Air Shower Room With Interlock Swing Door



Introduction:



Cleanroom Air shower is the personnel or goods into the clean area by the fan through
the air shower nozzle through efficient filtering clean surface adsorption dust winds blow
people or object of a strong commonality of partial purification equipment. Also known as
air shower, air shower, clean purification air shower, air shower room, shower room, air
shower door, shower room, shower, blowing dust air shower channel, air shower.



Applications:



it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.



operating features :



1: Microelectrinoic control system with LED display for the shower time.

2: the air shower duration time adjustable from 0-99second.

3: Infrared ray inductor for inside personal shower automatic from two side

4: Human being voice remind of user progress in chamber.

5: Emergency switch help you out of trouble, Comply with CE Test



Technical Parameters:



Model GAS1300-P2
External size(mm) (WXDXH) 1200x2000x2180
Work zone (mm)(WXDXH) 800x1930x1910
Persons per cycle 2-4 person
Air shower Duration Factory set at 12 second (adjustable)
Material Steel with white color epoxy power-coated or Stainless steel
Fan consumption 0.75KWX2 sets
Air flow of fan(m3/h) 1300m3/h
Fan run (r/min) 2800r/min
Nozzle in stain less steel 32pcs
Wind speed(m/s) > 22-27m/s
Noise level(dB) <62dB
LED Fluorescent Lamp 20wx2





HEPA Filter

Size(mm) 630X630X69mm
Efficiency 99.99%@0.3um
Air velocity 1000(m3/h)
Resistance <220pa





Pre-filter

Size(mm) 785x385x21
Efficiency 75% @ 5um
Resistance <30 Pa
Electrical Power supply 380v/50Hz

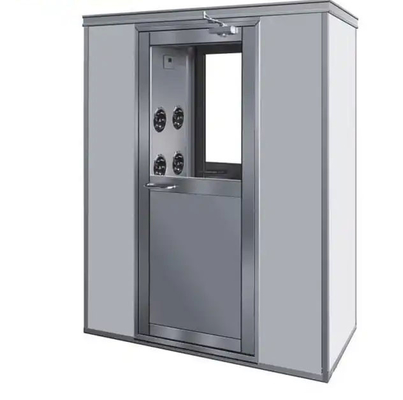

Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door 0

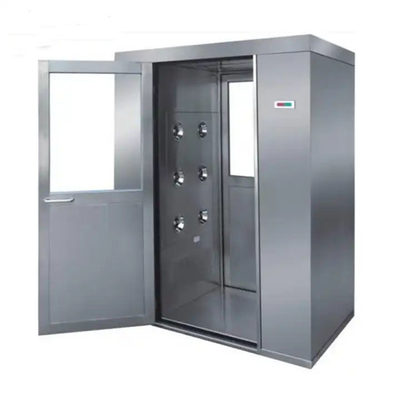

Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door 1

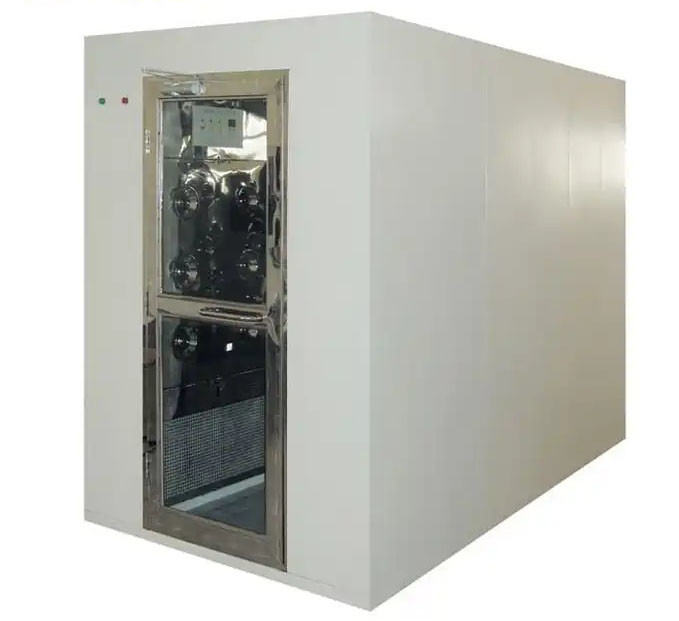

Automatic Blow Cleanroom Air Shower , Air Shower Room With Interlock Swing Door 2



FAQ:



1. who are we?

A:We are based in Guangdong, China, more than 10years in clean room business,. There are total about 51-100 people in our company.

2. how can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment;

3.what can you buy from us?

A:clean room,air shower,clean booth,laminar flow,hepa filter, all parts related to clean room industry.

4. why should you buy from us not from other suppliers?

A:1.Has a number of industry clean room design experts. 2.More than ten years experience in cleaning equipment manufacturing. 3.Advanced

production equipment. 4.Through the ISO certification.

5. what services can we provide?

A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,Express Delivery;

Accepted Payment Currency:USD,EUR,HKD,CNY;

Accepted Payment Type: T/T,L/C,PayPal,Western Union;

Language Spoken:English,Chinese
