Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control
Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control

Large Image :  Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE
Model Number: vision measurement system
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in foam firstly,and then reinforced with strong carton box for outer packing
Delivery Time: 7-10working days after received deposit
Supply Ability: 100 Set / Sets per Month

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control

Description
Warranty: 1 Year Place Of Origin: Guangdong
X Y Axis Accuracy(μm): ≤3+L/200(L Is The Unit Of Measure Mm) Working Distanceresolution: 82mm
Objective Magnification: 0.7X-4.5X Power: Electronic
Z Axis Accuracy(μm): ≤3+L/100(L Is The Unit Of Measure Mm) Resolution: 0.1μm
Highlight:

82mm Vision Measurement System

,

0.1um Vision Measurement System

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control



Description:



CNC automatic image measuring instrument. Flexible manual amplification, optimized hardware and software configuration, perfect to achieve a variety of two-dimensional size of the batch automatic measurement requirements. Widely used in mold, precision hardware, mobile phone panel, glass, touch screen and other industries.



Characteristics:



(1) repeatability

Visual recognition systems can do the same thing over and over again without getting tired. The human eye, by contrast, detects a product slightly differently each time, even if it is identical.

(2) Accuracy

Because of the physical limitations of the human eye, machines have obvious advantages in accuracy. Even if the human eye relies on a magnifying glass or microscope to examine a product, a visual recognition system would still be more accurate, with accuracy up to a thousandth of an inch.

(3) High efficiency

Visual recognition system can detect products faster. Especially when detecting objects moving at high speeds, such as on a production line, machines can increase productivity.



Technical Specifications And Parameters:



  GSA3020 GSA4030 GSA5040
Measurement stroke

(mm)

X Y Z

300*200*150 400*300*180 500*400*200
Machine weight (kg)
285 350 450
Bearing weight
15kg
X Y axis accuracy (μm)
≤ 3 + L/200(L is measured length unit mm)
Z-axis accuracy (μm)
≤ 3 + L/100(L is measured length unit mm)
Working distance
82mm
Resolution
0.1μm
Objective lens magnification
0.7X-4.5X
Comprehensive magnification
20~128X
Control system
CNC closed-loop control system
lighting system
The surface and transmission light source
are both LED, and the brightness is adjustable
Select accessory probes
Point laser (measure sample height. Flatness ..)

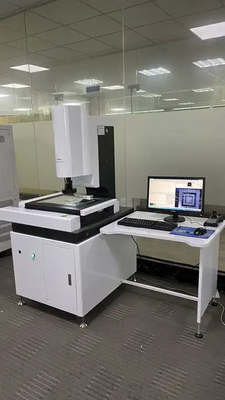

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control 0

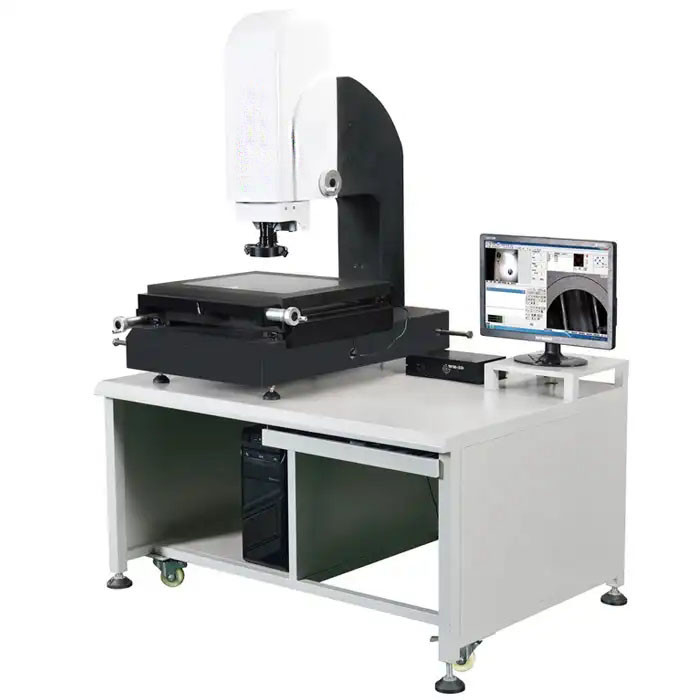

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control 1

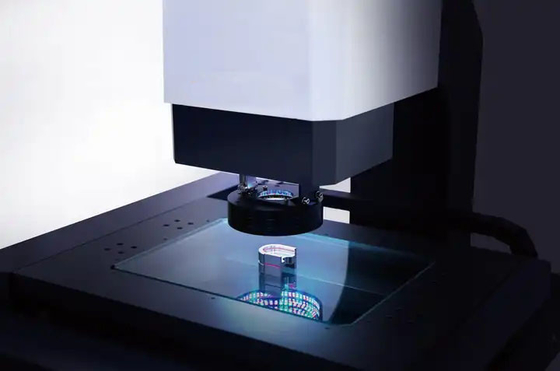

Mitutoyo High Precision Vision Measurement System CNC Closed Loop Control 2



FQA:



1.Are your company a trading one or a factory ?


Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.

2.How to choose the most suitable products?



Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are



in urgent need, we can consider making special arrangement for you.

4.Do you accept customization service?



Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your



requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?



Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

6.Do you have customers of our country before?



Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,



Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.

7.How about your warranty?



Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers



may go to your place for better service.

8.How about the packing for machine, is it safely protected during transportation?



Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air



without damage.

9.What is the order process?



Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -



delivery - customer receiving - after service.

10.How to install and use the product



The product is shipped with an operating instructions and video of English version.
