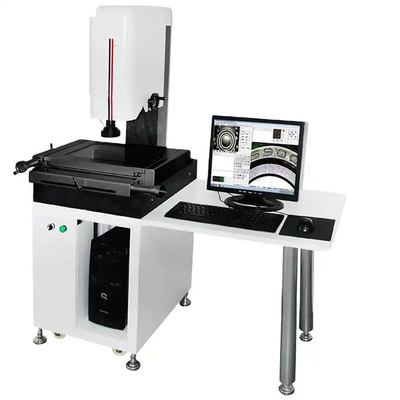

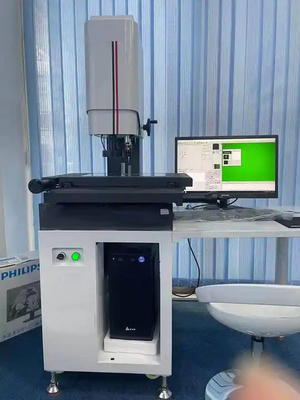

3D Color CNC Vision Measurement Machine With Resolution Of 3um

3D Color CNC Vision Measurement Machine With Resolution Of 3um
3D Color CNC Vision Measurement Machine With Resolution Of 3um 3D Color CNC Vision Measurement Machine With Resolution Of 3um

Large Image :  3D Color CNC Vision Measurement Machine With Resolution Of 3um

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE
Model Number: vision measurement system
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in foam firstly,and then reinforced with strong carton box for outer packing
Delivery Time: 7-10working days after received deposit
Supply Ability: 100 Set / Sets per Month

3D Color CNC Vision Measurement Machine With Resolution Of 3um

Description
Warranty: 1 Year Place Of Origin: Guangdong
Magnetic Grid Resolution: 0.2um Repeat Accuracy: 3μm
Machine Size: 760x600x1100mm Power: Electronic
Magnification: 16~180X Working Distance: 92mm
High Light:

3D Color Vision Measurement Machine

,

3um Vision Measurement System

A 3D Color CNC Vision Measurement System With Resolution Of 3μm



Description:



Vision measurement system is composed of camera, lens, light source, image acquisition card and computer, through the image acquisition card to the image of the object to be measured to the computer, after image processing, will obtain the measured object size, geometric shape and surface quality information for calculation and processing, and then according to the preset target parameters for automatic measurement or manual measurement. In the production process, the functional characteristics of the machine vision measurement system can be summarized through the use of the process.



Characteristics:



First, non-contact measurement



Non-contact measurement technology is the non-contact measurement of the measured object through the CCD camera, or directly with the image acquisition card, special image acquisition card and other equipment connected to the measured object, using the CCD camera to input the image of the object into the computer, and the corresponding image processing and analysis, and then the obtained results and the corresponding standards are compared. To realize the size of the object, shape, surface quality and other information measurement. According to the structure and installation of CCD camera, it can be divided into traditional CCD camera measurement and industrial lens measurement. Due to the high price of industrial lenses, most of the traditional cameras are used to achieve non-contact measurement.



Second, accuracy



machine vision measurement system in the visual measurement, the edge of the detected object is segmented and positioned, according to the characteristics of its contour calculation, through these calculations can get the size of the object. In order to ensure the accuracy of measurement, the method of multi-sensor measurement is generally adopted in dimension calculation. And to ensure that each measurement position can obtain the corresponding information, so as to ensure the measurement accuracy. In addition, in the use of machine vision measurement system can also use a variety of different kinds of sensors. For example, the combination of visual sensors and motion sensors can detect information in the direction of an object's motion; The thickness of an object can be measured by combining vision with laser sensors. A combination of visual and vibration sensors can detect things like cracks on the surface.



Three, good repetition



Because the machine vision measurement system is based on the principle of machine vision, that is, the use of computers to detect automatically, so the stability in the process of operation will be better. In general, you can automatically determine whether there is a detection error according to the set threshold, and the accuracy of repeated detection will be higher after parameter adjustment.



Technical Specifications And Parameters:



Machine Model
GSA-322CNC
Test Area
300x200x200mm
Machine size
760x600x1100mm
Glass bearing
30kg
Machine weight
280kg
Accuracy of measurement
X,Y:(3+L/200)μm
Repeat accuracy
3μm
Magnetic grid resolution
0.2um
CCD
1.3 million Hikon digital cameras
camera lens
0.7 ~ 4.5x continuous zoom lens
magnification
16~180X
Working distance
92mm
Measuring software
YR-CNC
Servo Motor
Delta
UP light source
3 ring 8 zone surface ring LED cold light source, brightness adjustable
Bottom light source
Parallel light path design, endless continuous adjustable LED cold light source
guide rail
Taiwan high precision sliding guide rail





3D Color CNC Vision Measurement Machine With Resolution Of 3um 0

3D Color CNC Vision Measurement Machine With Resolution Of 3um 1



FQA:



1.Are your company a trading one or a factory ?


Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.

2.How to choose the most suitable products?



Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.What’s the delivery term?



At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are



in urgent need, we can consider making special arrangement for you.

4.Do you accept customization service?



Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your



requirement, we will try our best to meet your needs.

5.Can we visit your factory before order?



Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

6.Do you have customers of our country before?



Now our testing machines have been sold to more than 70 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India,



Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.

7.How about your warranty?



Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers



may go to your place for better service.

8.How about the packing for machine, is it safely protected during transportation?



Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air



without damage.

9.What is the order process?



Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing -



delivery - customer receiving - after service.

10.How to install and use the product



The product is shipped with an operating instructions and video of English version.
