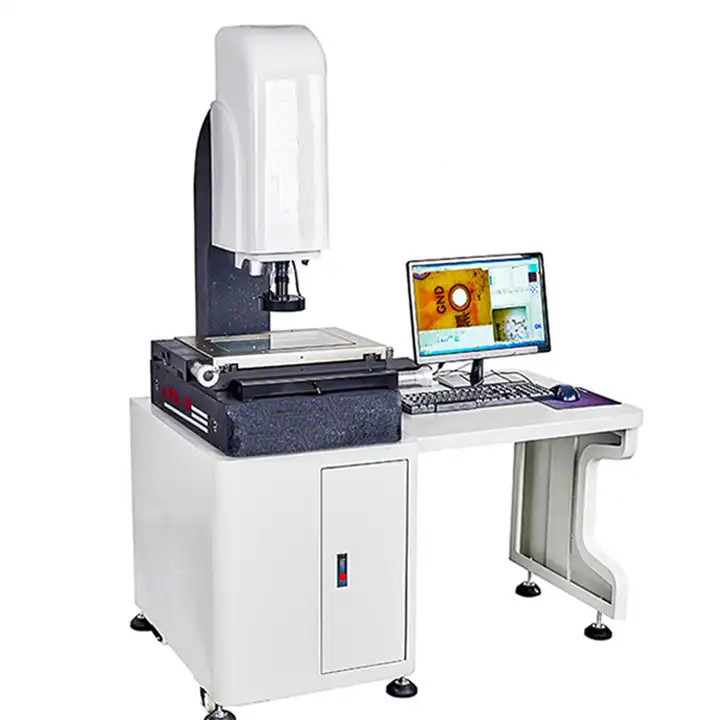

Manual Two-Dimensional Vision Measuring Machine CNC Optical System
product presentation:
GSA series vision measuring machine is a high-precision and high-strength machine newly developed by our company. It consists of general camera, light source, image processing and data processing automation software, etc. It can be applied to quality control, detection and testing and other fields to ensure product quality and performance. Vision measuring machine is often used in machining, electronics, manufacturing, medical, safety inspection and other industries

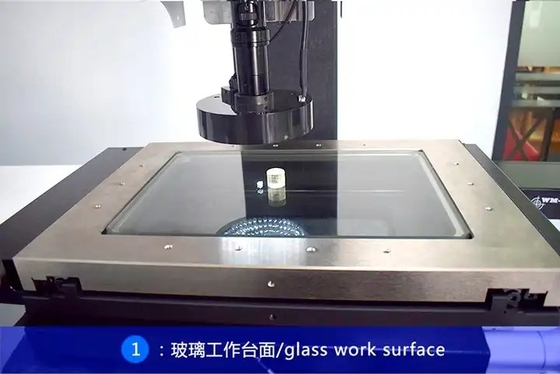

High precision and high strength machine:00 marble base / upright cloumn / worktable, high precision and good stability.
XYZ three axis imported precision v type guide rail / imported optic axis drive system, long service life, good stability.
wMContinuous zoom optical lens,d ifferent frames, different magnification, without zoom correction.
HD Japanese SoNY ccD camera, high quality measuring screen.
Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.
Surface light , LED profile light , coaxial light . choose match programmable three ring eight area light.
The laser pointer indicates the position of measuring,rapid positioning and convenient measurement.
Can match foot switch, easy to operate at any place.
Characteristic:
Measurement method variety (automatic discriminant, mining point measuring contrast measurement, tolerance measurement comparison. Preset element), can satisfy different customers' needs, greatly improve the ease of use and measuring precision.Single point sampling method mining point, there are a variety of mouse reticle edge point, amplified by points. Closed to measure the perimeter of the cloud line, area and center of gravity, the use of three interpolation algorithm, for the most accurate measuring method of cloud line.Can undertake box to choose measurement more round, fast and accurate measurement of multiple round at a time.The measured data can be saved as a DXF file, or BMP images, and the user program formatCan measure the 12 kinds of elements (point, line, circle, arc, ellipse, rectangle, trough, O shape, distance and Angle, open cloud cloud line and closing lines).

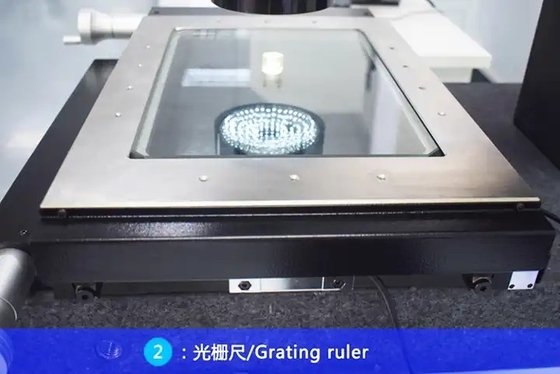

| Items | GSA-L36 | GSA-L36 | GSA-L36 | GSA-L36 | |||
| Dimension(mm)(L×W×H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |||
| Measuring range(mm)(X×Y×Z) | 200*100*200 | 300*200*200 | 400*300*200 | 500*400*200 | |||
| Measuring Accuracy(μm | 3+L/200 | 3+L/200 | 3+L/200 | 3+L/200 | |||
| Repeatability (μm) | 3 | 3 | 3 | 3 | |||
| Weight(kg) | 150 | 180 | 200 | 240 | |||
| Image and Measuring | CCD | Japanese SOnYCcD | |||||
| Len | WM HD zoom lens / continuous magnification 0.7-4,5x | ||||||
| Magnification | 30-210X | ||||||
| ptical scale resolution | X/Y/zaxis 0.0005mm ( 0.5um | ||||||
| Measuring range | 9.omm-1.35mm | ||||||
| measuring system | Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe, | ||||||
| Driving system | versatile data processor can measures points, lines, loops, circles, angles, etc. | ||||||
| Illumination | Surface light and projection light , cold light, long life, brightness adjustable | ||||||
