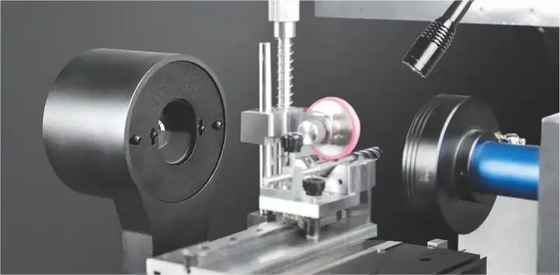

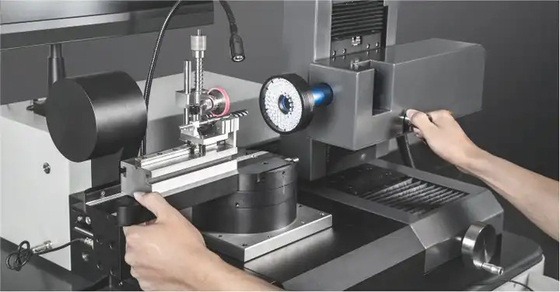

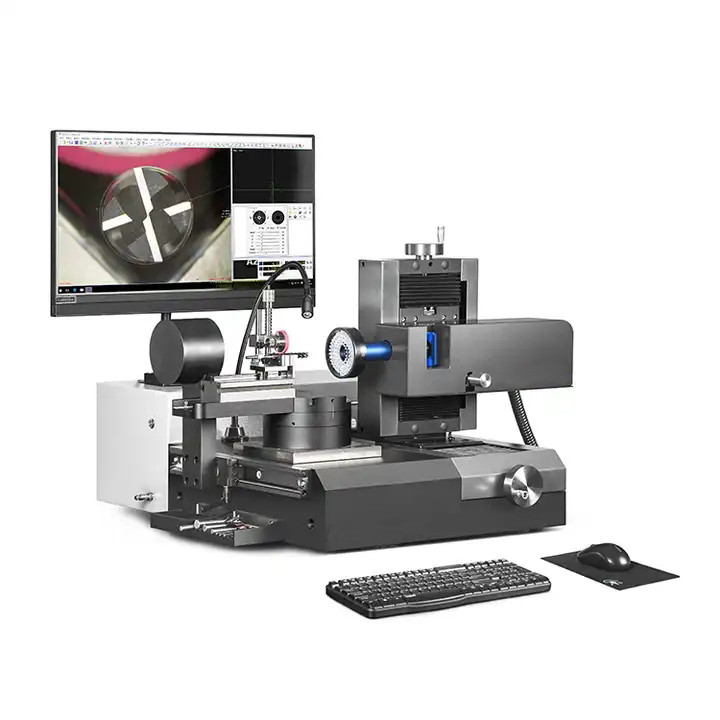

Programmable tool video measuring machine used in machinery factory

Programmable tool video measuring machine used in machinery factory
Programmable tool video measuring machine used in machinery factory Programmable tool video measuring machine used in machinery factory Programmable tool video measuring machine used in machinery factory Programmable tool video measuring machine used in machinery factory

Large Image :  Programmable tool video measuring machine used in machinery factory

Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA-Z4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: Import and export standard packing.
Delivery Time: 10-15working days after received deposit
Payment Terms: L/C, T/T,
Supply Ability: 160 Set / Sets per Month

Programmable tool video measuring machine used in machinery factory

Description
Place Of Origin: Guangdong, China Model Number: GSA-Z4
Working Distance: 90mm Warranty: 1 Year
Lens: 0.7-4.5X Dented Zoom Lens Linear Scale Resolution: 0.0001mm
Magnification: 12.6X~79.2X/25.2X~158.4X(Optional) Field Of View: 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm(Optional)
High Light:

Video Measurement System

,

Visual Measuring System

Programmable Tool Video Measuring Machine Used In Machinery Factory​



product presentation:



Tool Video Measuring Machines is a universal measuring machine for drill, milling cutter and countertop under flexible lighting systems. Due to its compact design and excellent stability, the GSA-Z4 Tool Video Measuring Machines can be used in measuring rooms, receiving inspection, or directly in production. The GSA-Z4 Tool Video Measuring Machines is equipped with SMARTOOL universal measurement software, making it the best instrument for all types of metal tools, from quickly checking a single standard, such as outer profile or Angle, to completing control of special tool geometry. With the GSA-Z4, users can easily implement the place-Measurement-analyze measurement process. Special tool geometry control. With the GSA-Z4, users can easily implement the place-Measurement-analyze measurement process.



Advanced Design

--Ergonomic design and solid construction.
--HD image capturing and display combination, also microscope magnification level is optional.
--Stable and accurate V block for easy tools holding and alignment.
--Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
--High accuracy encoder is embedded in the rotary table, offers precise angle location for users.

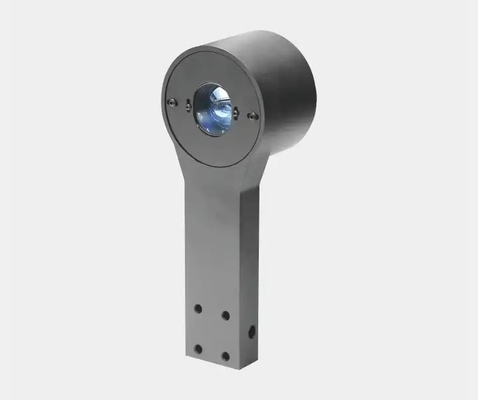

--Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
--SMARTOOL measuring software offers specific measuring function for cutting tools.
--Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
--Measuring result fast output to EXCEL file report or CAD file.
--ALL-IN-ONE PC system makes the machine more stable.

Programmable tool video measuring machine used in machinery factory 0

Multiple Angles

For a more fast and precise tools angle location during the measuring process, the rotary table of the GSA-Z4 Tool Video Measuring Machines offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc. If other angle location should be required, users can also use the accurate encoder which is embedded in the rotary table to obtain. The angle reading is display in the software.
Programmable tool video measuring machine used in machinery factory 1
0 degree
Programmable tool video measuring machine used in machinery factory 2
45 degrees
Programmable tool video measuring machine used in machinery factory 3
90 degrees
Parameters
X axis travel
80mm
Y axis Travel
60mm
Z axis measuring range
60mm
Max tool Diameter
50mm
Max tool length
300mm
Working distance
90mm
Lens
0.7-4.5X dented zoom lens
Camera
2M pixel HD camera/5M pixel HD camera(Optionsl)
Linear scale resolution
0.0001mm
Magnification
12.6X~79.2X/25.2X~158.4X(Optional)
Field of view
27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm(Optional)
Measuring accuracy
X~Y,(2.5+L/100)µm,L is the measured length
PC
ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination
8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable.
Input format
DXF files
Output format
EXCEL,DXF



Leading Features
Programmable tool video measuring machine used in machinery factory 4

Easy operation

High resolution image display and graphical operation interface. All function keys and control panel are displayed on the software window.
Programmable tool video measuring machine used in machinery factory 5

Dynamic Real Time curve view

The software offers real time edge detecting curve view, makes the edge analyse and measuring more intuitive and clear. Users are able to switch to the curve view mode at any time during measuring process.
Programmable tool video measuring machine used in machinery factory 6

Fast angle measuring with retical

The reticle displayed in the image area of the SMARTOOL software is freely rotatable and able to display angles. Users can achieve fast angle measuring easily by using the retical for edge comparison.
Programmable tool video measuring machine used in machinery factory 7

CAD comparison

The SMARTOOL measuring software is supporting CAD comparison function. Users can directly input the CAD drawing of the tool to the software as reference, and compare the real image to the drawing to evaluate the geometries of the cutting tools.

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
