Product Details:
Place of Origin: Guangdong,China
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA-T56
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T,
Supply Ability: 160 Set / Sets per Month

High Precision Visual Measuring System For Measure Product Dimensional Accuracy

Description
Place Of Origin: Guangdong, China Model Number: GSA-T56
Lens: 0.7~4.5X Field Of View: 8.1mm ~ 1.3 Mm
Linear Scale Resolution: 0.5μm (0.1μm Optional) Warranty: 24 Mothes
Magnification: 18~195 X Working Distance: 80 Mm
High Light:

Video Measurement System

,

Visual Measuring System

High Precision Visual Measuring System For Measure Product Dimensional Accuracy



product presentation:



Visual measurement machine is an instrument used for precise measurement of physical dimensions, with an accuracy of up to micrometers. It is an optical measurement instrument that uses a camera to capture images of workpieces, analyze image pixels, and calculate two-dimensional dimensions using measurement software.



The GSK series visual measuring machine is a popular model designed and developed by our company for precise two-dimensional dimensional measurement applications and end users in different industries such as mold, electronics, semiconductor, injection molding, 3C products, medical, aviation, etc. It is an important instrument used in the quality control process of your product, ensuring the dimensional accuracy of your product and making it more competitive.



The GSA-T56 model is the most commonly used model for producing precision parts in most factories. Suitable for measuring small quantities of samples. 3-axis manual control with user-friendly software allows operators to manage and use the machine in a short period of time.



characteristic:



Using high-precision and stable granite as the base and column, 3-axis 0.0005mm high-resolution linear sensor

----Ensure the high performance and accuracy of each machine.



Adopting HIWIN linear guide rail and high-precision linear guide rail, combined with aluminum workbench and hard anodized surface treatment.

----Ensure high dynamic performance and long life cycle use of the machine.



Using the company's newly developed integrated core control box for linear scale, light control, and touch probe signal transmission.

----Ensure easy wiring and maintenance. Greatly increases the stability of the machine.



Programmable contour LED light with parallel light path to avoid image deformation.

----Ensure measurement accuracy.



8-segment software controls LED circular lights, providing multiple lighting angles and brightness.

----Suitable for parts of different shapes and materials.



The lighting parameters can be recorded in the part measurement program, and users do not need to adjust them during the measurement process.

----Friendly and convenient to use.



ARDEARE CONFIGURATION
High Precision Visual Measuring System For Measure Product Dimensional Accuracy 0

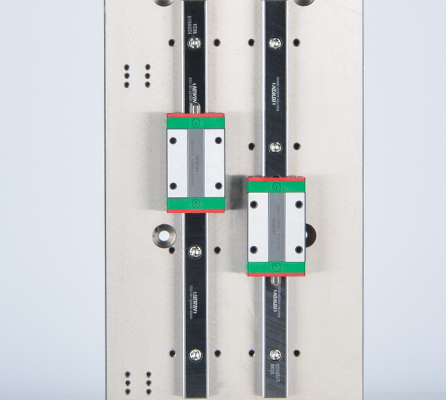

HIWIN linear guide way

High Precision Visual Measuring System For Measure Product Dimensional Accuracy 1

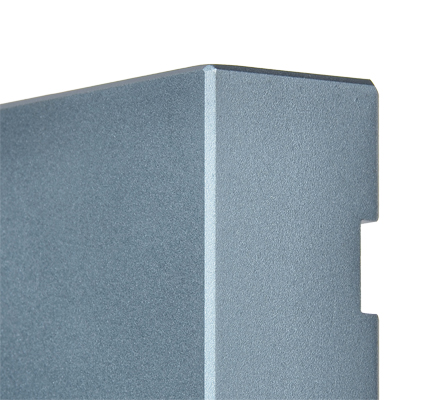

Aluminum work stage and hard anodizing



High Precision Visual Measuring System For Measure Product Dimensional Accuracy 2

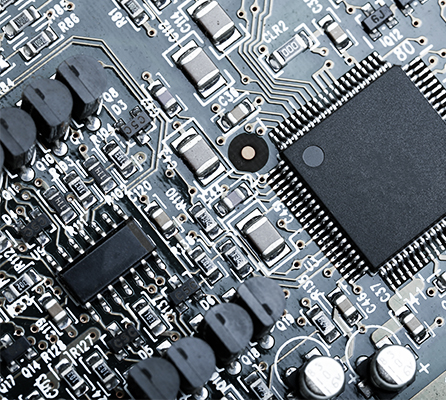

Integrated core control box



High Precision Visual Measuring System For Measure Product Dimensional Accuracy 3

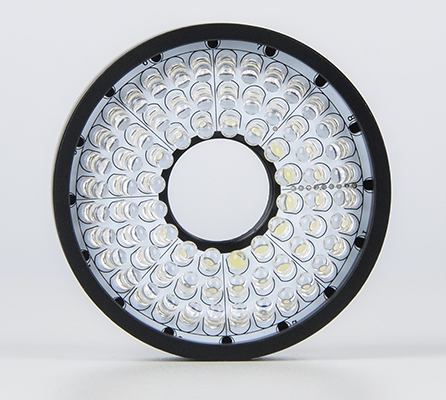

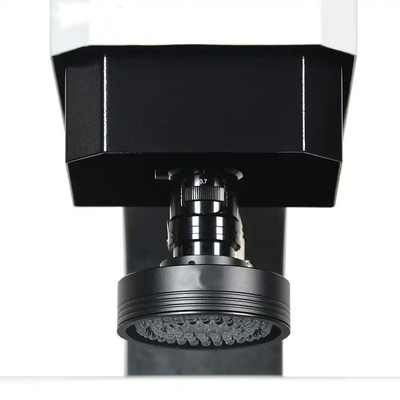

Multi function LED parallel light group

.
High Precision Visual Measuring System For Measure Product Dimensional Accuracy 4

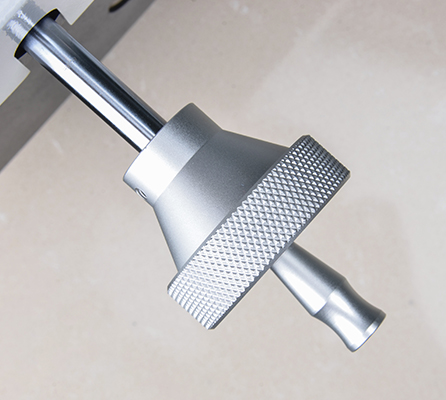

3 axis 0.5um resolution linear scales

High Precision Visual Measuring System For Measure Product Dimensional Accuracy 5

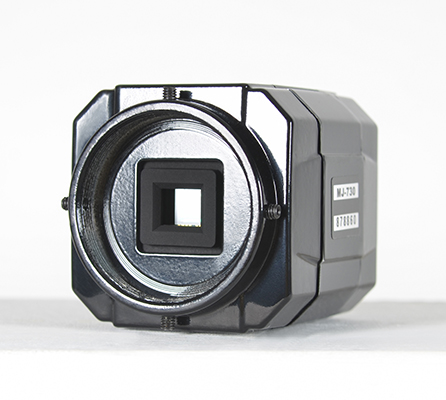

Industrial grade high resolution CCD camera


model GSA-T56 GSA-T57 GSA-T58 GSA-T59
Dimension(mm)(L×W×H) 550*540*930 600*740*980 700*840*980 800*940*980
Measuring range(mm)(X×Y×Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy(μm) 2.5 + L / 100 3.0 + L / 100
Repeatability (μm) 2.5 3
Weight (kg) 140 190 240 290
Image and Measuring Camera Industrial grade high resolution CCD camera
Lens 0.7~4.5X manual dented zoom lens with high repeatability
Magnification 18~195 X
Field of View 8.1mm ~ 1.3 mm
Working distance 80 mm
Linear scale resolution 0.5μm  ( 0.1μm Optional )
Driving system X / Y / Z  manual control
Illumination Programmable LED 8 sections /single section ring surface light, parallel LED contour light



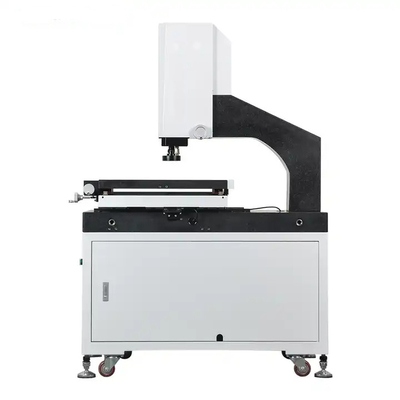

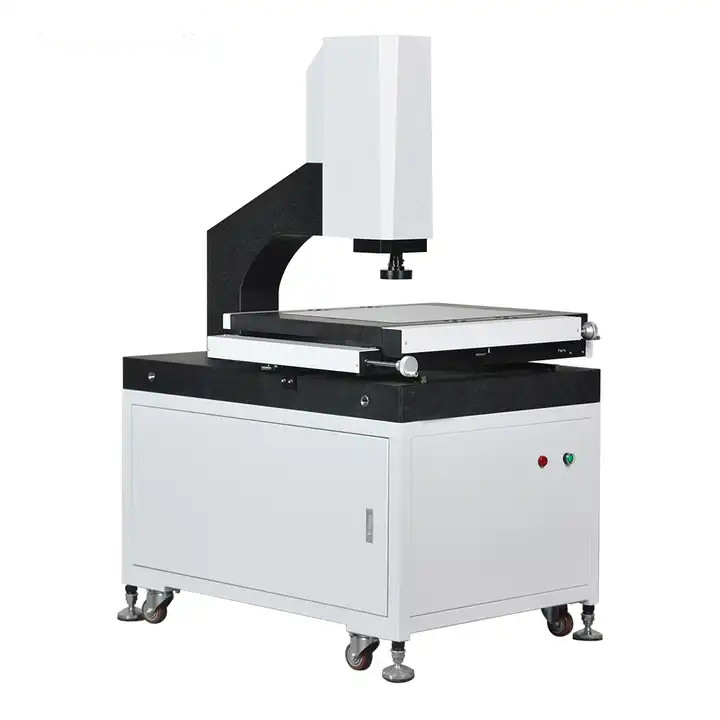

High Precision Visual Measuring System For Measure Product Dimensional Accuracy 6

High Precision Visual Measuring System For Measure Product Dimensional Accuracy 7


High Precision Visual Measuring System For Measure Product Dimensional Accuracy 8

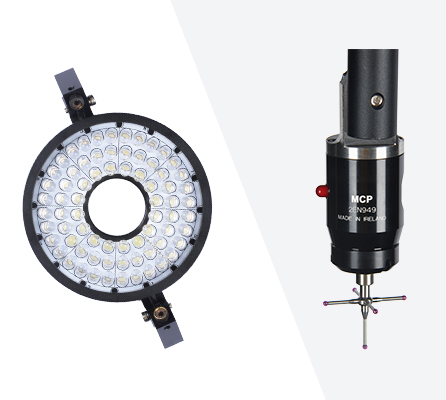

Supporting multiple external accessories
