Product Details:
|
| Place Of Origin: | Guangdong,China | Usage: | Vision Measuring Machine |
|---|---|---|---|
| OEM/ODM: | OEM For Customized | Certificate: | CE SGS ROHS UL |
| Resolution: | 0.5um | Power Supply: | 220V 50Hz |
| Weight: | 266KG | Metal Table Size: | 500X330mm |
| High Light: | Video Measurement System,Visual Measuring System |
||

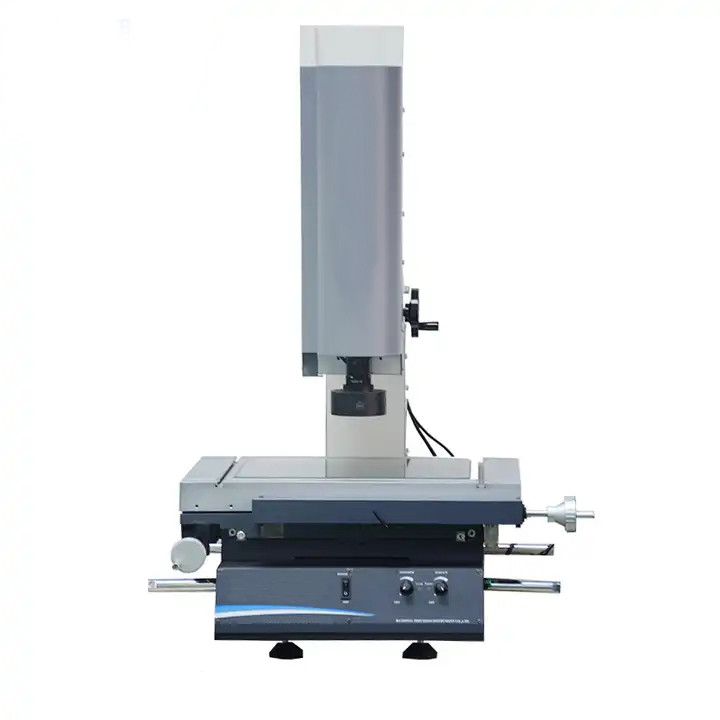

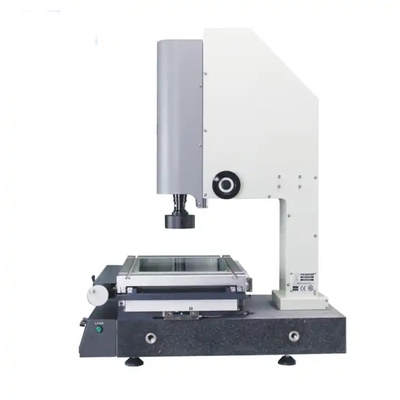

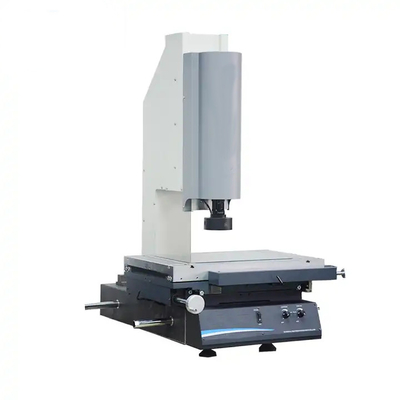

Vision Measurement Systems With 0.5um Resolution Are Used In Machinery Plants
product presentation:
The GSK series Vision Measurement system is mainly used for two-dimensional measurement and can support certain specific three-dimensional measurements as needed, such as electronics, instruments, meters, clocks, light industry, plastics, as well as measurement rooms, research institutes, metrological verification departments, and workshops.
GSK-78L Vision Measurement Systems Features:
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
Specifications:
| Model | GSK-78L | |||||
| Working table | Metal table size (mm) | 500*330 | ||||
| Glass table size (mm) | 350*250 | |||||
| Travel (mm) | 300*200 | |||||
| Linear scale resolution | 0.5μm | |||||
| Indication error | E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm) | |||||
| Dimension (mm) | 970X670X940 | |||||
| Weight (kg) | 140 | |||||
| Z-axis travel (mm) | 200mm (Can be customized to 300mm) | |||||
| Accessories | 1X lens tube (Standard) | 0.5X lens tube (Optional) | Working distance (mm) | |||
| Zoom lens | 0.7-4.5X | 0.7-4.5X | ||||
| Additional lens | Magnification | Field of view (mm) | Magnification | Field of view (mm) | ||
| 0.5X (Optional) | 13.3X-85.5X | 16.2-2.6 | 6.65X-42.7X | 32.4-5.2 | 175 | |
| 1X (Standard) | 26.6X-171X | 8.1-1.3 | 13.3X-85.5X | 16.2-2.6 | 92 | |
| 2X (Optional) | 53.2X-342X | 4-0.7 | 26.6X-171X | 8.1-1.3 | 36 | |
| Brand PC (Standard), joystick (Standard) | ||||||
| Power supply: AC 100-240V 50/60Hz. Power: 50W (excluding PC) | ||||||
Q. When can I get the price of the cnc spare parts?
A. We usually quote within 24 hours after we got your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q. How can I get the accurate price ?
A.There are some basic specs we need to know for price calculate, that are: Exact drawings, Materials, Surface treatment. Please suggest us your order quantity too.
Q. Do you accept the OEM?
A. OEM is welcome. We can custom the good according to your design.
Q. What is the shipping ?
A:By express(FedEx, UPS, DHL, TNT, EMS, etc...),By Air,by shipping.
Q. How do I pay for the order?
A.The common payments are T/T(Telegraphic Transfer),western union ,
Q. I have an idea for a new product, but don't know if it can be manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
