Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong,China |
|---|---|---|---|
| Power: | Electronic | Electronic: | Granite,steel |
| Measuring Range: | 200*100*150mm | Accuracy: | 3um |
| Resolution: | 0.001mm | Lens Magnification: | 0.7-4.5X |
| High Light: | Video Measurement System,Visual Measuring System |
||

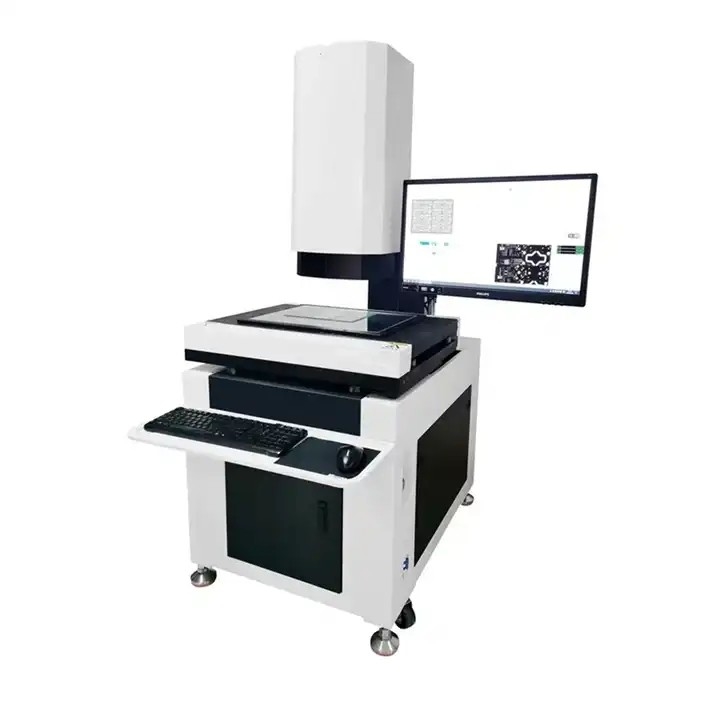

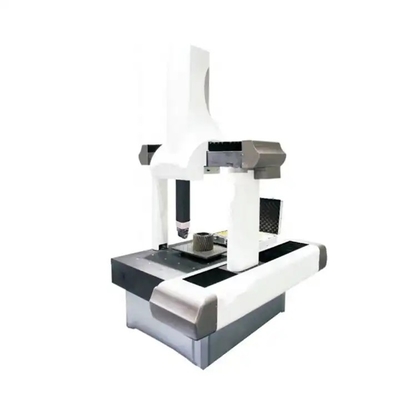

Manual Programmable VideoMeasurement Machine For Plastics Industry
product presentation:

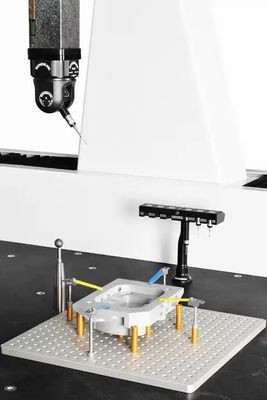

The GSK series is a basic manual video measurement system with multi-point positioning function, which can measure points, lines, circles, arcs, ellipses, and rectangles to improve accuracy. In terms of metrology, this machine can test and measure width, length, height, thickness, diameter, angle, straightness, flatness, verticality, roundness, coaxiality, etc. It has been widely used for precision measurement in industries such as machinery, electronics, aerospace, automotive, military, and mold.
video measurement system Features:
1. It adopts TEO™ 1 / 3'' color CCD camera, the cross-line generator is the measuring aiming system.
2. Digital measurement and data processing system are made up by the two coordinate's studio, the optical grating and the professional video card.
3. It has RS-232 interface with a computer and specialized measurement software which can also processes and output circular mapping. Measurement data can be directly transformed into AutoCAD file and make a full work circle. The data also can be exported in Excel, Word to generate reports for statistical analysis.
Sepcifications
| Model | GSK621 | GSK622 | GSK623 | |
| Worktable | Worktable D(mm) | 500*330 | 606*466 | 706*566 |
| Glass Table Size(mm) | 350*280 | 450*350 | 550*450 | |
| X,Y Stroke(mm) | 300*200 | 400*300 | 500*400 | |
| Load Capacity | approx. 20 kg | approx. 30 kg | approx. 35 kg | |
| Resolution | 1um | 1um | 1um | 1um |
| Accuracy E1* | Ex, y ≤ (3.0+L/200) μm | |||
| Accuracy E2* | Ex, y ≤ (3.0+L/300) μm | |||
| Accuracy E3* | Ex, y ≤ (3.0+L/150) μm | |||
| Z-axis Stroke (mm) | 150(Focus) | 150(Focus) | 150(Focus) | |
| Instrument Weight (kg) | 270 | 325 | 500 | |
| Dimension (mm) | 670*660*950 | 670*660*950 | 800*1040*1020 | |
| Motor | Three-axis Max. Velocity | X,Y: 400mm/s Z: 200mm/s | ||
| Three-Axis Positioning Accuracy | 0.001mm | |||
| Camera | TEO™ Color 1 / 2 "CCD Camera | |||
| Imaging System | Zoom Lens | coaxial optical manual zoom lens | ||
| Zoom Lens Magnification | 0.7-4.5X | |||
| Video Magnification | 20-128X | |||
| FOV | 11.1-1.7mm | |||
| Power Consumption | 600W | |||
FQA:
Q1: What kind of equipment do you mainly produce?
A: Hello! Our main production equipment are:automatic image measuring instrument,manual image measuring instrument,large gantry image
measuring instrument,one key measuring instrument.Automatic vision screening equipment,non-standard vision detection equipment, etc.
Q2: Do you accept custom service? Can I print my logo on the machine?
A: Yes, all of our products can be customized, if you have a logo requirement,
Q3: why do you choose us?we can also customize for you.
A: 1. We have focused on the measurement ofproducts for more than 10 years, with a professional R & D team and after-sales team.A2.It is
located in Dongguan City, a world-famous manufacturing city.A3: after-sales service for 12 months, simple problems within 48 hours todeal with
timely.
Q4: what is your delivery time? What about the packing?A: Our delivery time is 5 working days after receiving the deposit or order confimation,
and 10-20 working days for customized machines. Our packaging is wrappedand fixed with professional machine packaging film inside, and
woodenbox packaging and screw fixing are used on the outside.Ensure that theproduct arrives safely without damage.
Q5:What are the payment terms?
A: T/T, L/C, Western Union, etc.
Q6. What are your payment tems?
A: T/T 30% as a deposit, 70% before delivery. Before you pay the balance, we will show you the photos ofthe product and packaging.Or 100% L/C
at sight.
