Product Details:
|
| Warranty: | 1 Year | PackagePlace Of Origin: | Guangdong,China |
|---|---|---|---|
| Model Number: | GSA-4Y | X/Y/Z Axis Travel (mm): | 400*300*200 |
| Measure Accuracy: | X,Y≤(1.5um+L/200)um | Optical Scale Resolution: | X/Y/Z 0.0005mm(0.5μm) |
| Guide Rail: | High Precision P-class Linear Guide | Image Sensor: | 1.3 - 20 Million Resolution Selectable |
| High Light: | Video Measurement System,Visual Measuring System |
||
Automaton Optical CMM Video Measurement System Is Used In The Medical Industry
product presentation:

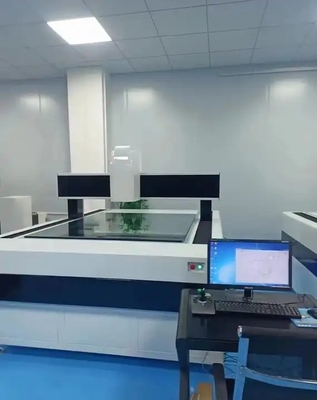

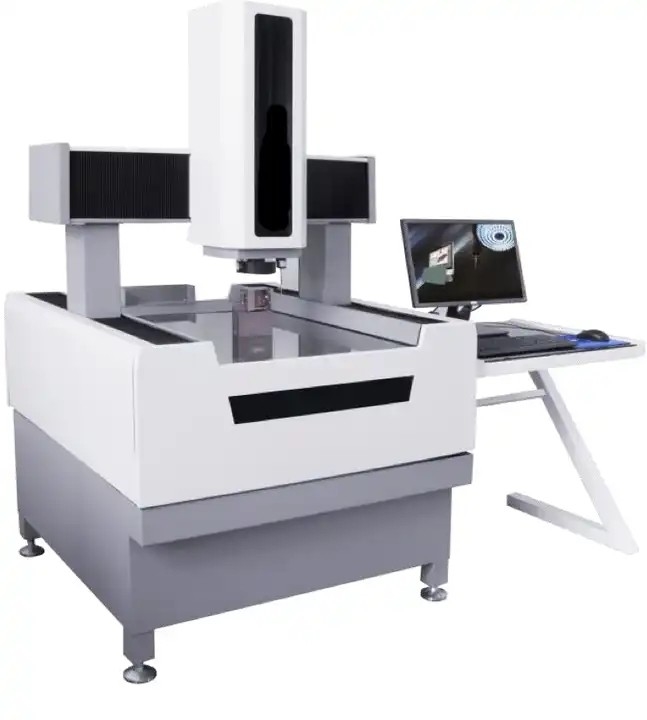

The GSA-4Y three-dimensional Vision measurement system is a high-precision measuring instrument that can perform non-contact measurements of three-dimensional objects. The system uses a digital camera and light source for scanning, generating a large amount of point cloud data, and then uses 3D modeling software to process the data to obtain a 3D model of the object. This Vision measurement system has the characteristics of simplicity, speed, efficiency, and accuracy, and is widely used in product quality inspection, product design, and manufacturing in industries such as automobiles, aviation, electronics, and healthcare.
|
Machine Model
|
GSA-4Y
|
GSA-5Y |
GSA-6Y
|
|
X/Y/Z axis travel (mm)
|
400*300*200
|
600*500*300
|
800*600*300
|
|
Measure accuracy
|
X,Y≤(1.5um+L/200)um
|
||
|
Optical scale resolution
|
X/Y/Z 0.0005mm(0.5μm)
|
||
|
Guide Rail
|
High precision P-class linear guide
|
||
|
Image Sensor
|
1.3 - 20 million resolution selectable
|
||
|
Optical Lens
|
high definition zoom lens/Continuous magnification PMS 0.7-4.5X
|
||
|
Camera Magnification
|
30-230X
|
||
|
Light source
|
Contour Light: LED Parallel Coaxial Cold Light Source
Surface light: Eight divisions of LED cold light source
|
||
|
Measurement Software
|
Special software for fully automatic measurement with multi-segment compensation
|
||
|
External dimension(mm)
|
980*940*1350
|
1300*1000*1700
|
1510*1170*1780
|
|
Weight (kg)
|
340
|
880
|
1100
|
|
Weight-bearing (kg)
|
50
|
60
|
60
|
FQA:
Q: Are your company a trading one or a factory ?
A: We have our own factory and we set up in China by technical guys from Taiwan in 1990s, has now grown to be a dominatingsupplier for Linear Scales, Video Measuring Systems, Profile Projectors in China, Korea and Vietnam and a main supplier in manyother countries in Asia. for more options (in order to make the business more simple) for more than 24 years focusing on test instruments field and 18 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome fromall of you as long as you confirm us with your requirement.
