Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Dongguan, China |
|---|---|---|---|
| Stroke (X*Y*Z, Mm): | 300*200*150 | Diemension(L)x(W)x(H): | 670 X 660 X 950 |
| Total Magnification: | 140-1400X | Weight (kg): | 230 |
| Objective: | 5X, 10X , 20X, 50X | Accuracy: | Ex, Y ≤ (2.5+L/200)μm |
| High Light: | Video Measurement System,Visual Measuring System |
||

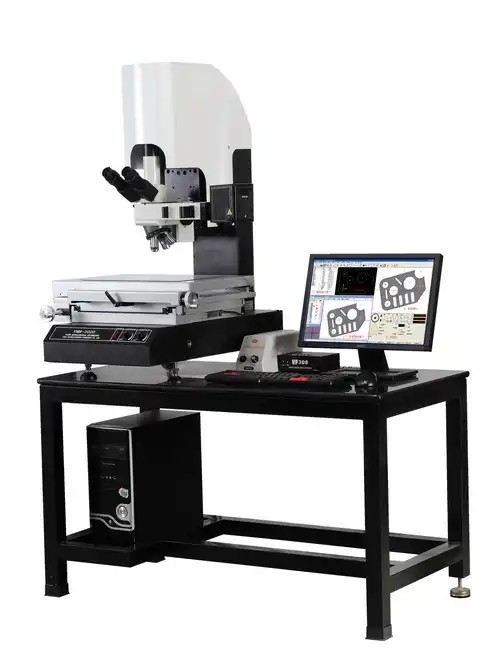

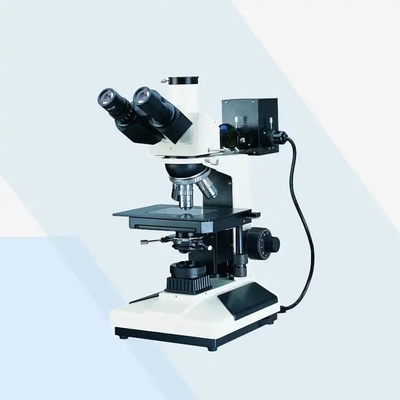

CE Certified Digital Video Measuring Machine, Magnification Up To 2800
product presentation:
GSA-23J series digital video measuring machine, is our company's new research and development of a high rate, micron level industrial measuring instrument. Combined with powerful microscopic detection technology, it has been widely used in the following fields :1. Used as an observation microscope, using comparative method to test the surface finish of the workpiece, metallurgical ore sample identification, photographic printing test, textile fiber inspection, etc. 2. Measure the length in Cartesian coordinates. Such as measuring pitch, base surface distance, line distance, line width, slot width, seam width, through hole diameter. 3, Angle measurement, such as dial, template, gauge, drill die and other structural complex parts of the Angle measurement. 4.GSA-23J series digital video measuring machine is a high rate, micron level industrial measuring instrument newly developed by our company. Combined with powerful microscopic detection technology, it has been widely used in the following fields :1. Used as an observation microscope, using comparative method to test the surface finish of the workpiece, metallurgical ore sample identification, photographic printing test, textile fiber inspection, etc. 2. Measure the length in Cartesian coordinates. Such as measuring pitch, base surface distance, line distance, line width, slot width, seam width, through hole diameter. 3, Angle measurement, such as dial, template, gauge, drill die and other structural complex parts of the Angle measurement. 4. With PC and powerful measurement software, there are not only microscopes, but also visual measurement system, can realize professional measurement data management. With PC and powerful measurement software, not only a microscope, but also a visual measurement system, can achieve professional measurement data management.
| Model | GSA-23J | GSA-24J | GSA-25J | ||
| Stroke (X*Y*Z, mm) | 300*200*150 | 400*300*150 | 500*400*150 | ||
| Load Capacity | approx. 15 kg | approx. 20 kg | approx. 30 kg | ||
| Dimension(L*W*H,mm) | 670 x 660 x 950 | 720*950*1020 | 800*1040*1020 | ||
| Machine Weight(kg) | 230 | 315 | 500 | ||
| Accuracy E1* | Ex, y ≤ (2.5+L/200)μm | ||||
| Accuracy E2* | Exy ≤ (3.5+L/300)μm | ||||
| Resolution | 0.5 μm | ||||
|
Microscope Camera |
1.3 MP color CCD Camera | ||||
| Optical system | Infinity-corrected optical system | ||||
| Eyepiece | WF/ 10X(Ø22mm) | ||||
| Objective | standard | optional | |||
| PL 5X,10X,20X,50X | PL L100X | ||||
| Nosepiece | Intilted quintuple nosepiece for bright field | ||||
|
Focus System |
Coaxial coarse and fine adjustment, coarse adjustment distance 32mm, precision of fine adjustment: 0.002mm, with tense adjusting device to prevent gliding. | ||||
|
Illumination System |
6V 30W/12V 50W halogen and brightness adjustable. | ||||
| Integrated field diaphragm, aperture diaphragm and pullerty polarizer | |||||
| Equipped with frosted glass, yellow/green/blue filters | |||||
| Video Magnification | 140~1400x(Objective* 1/2’’ CCD Camera) | ||||
| Work-piece Height Limit | 150mm | ||||
| Power Supply | AC110V/60Hz, 220V/50Hz | ||||
