Product Details:
|
| Warranty: | 1 Year, 12months | Place Of Origin: | Dongguan, China |
|---|---|---|---|
| Size: | 510lx490wx400h | Available Lens Range: | 22mm~100mm |
| Weight: | 51kg | The Lens Material: | CR,glass Pc |
| Brand: | GSKA | Authentication Certificate: | CE |
| High Light: | Video Measurement System,Visual Measuring System |
||

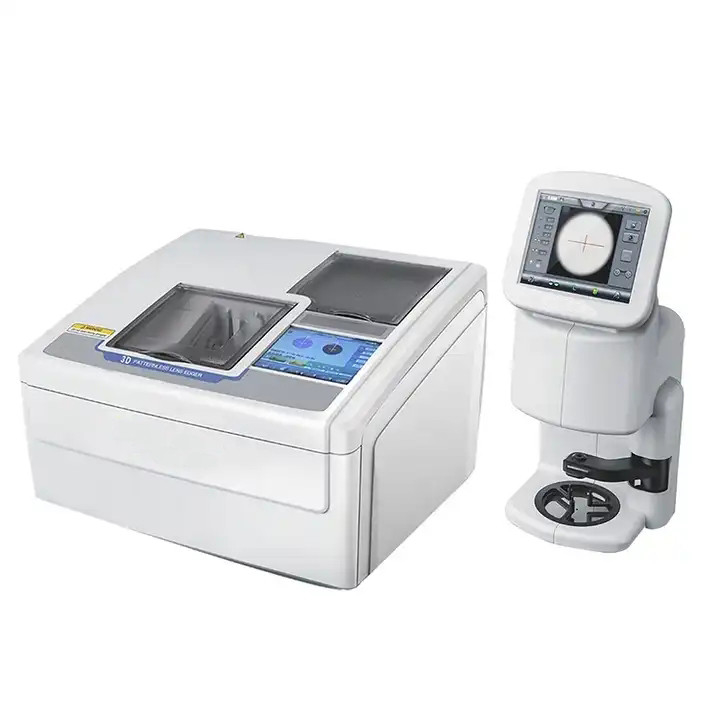

Optical laboratory machine semi-automatic edging machine available range 22mm~100mm
product presentation:
A semi-automatic edge grinding machine is a machine used for automatic edge grinding of objects such as glass, metal, plastic, etc. It controls the movement of the machining head through automation technology and precise calculations to grind along the edges according to a predetermined path and remove unnecessary materials. This type of machine can greatly improve production efficiency, reduce labor costs, and improve processing accuracy and repeatability. Semi automatic is widely used in industries such as glass processing, mold manufacturing, and metal processing.
Features:
1. Flexible and versatile
2. User-friendly color LCD panel
3. Integrated tracing and centering device
4. The display can be tilted
5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically
6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.
7. 3D lens inspection system
8. Grooving and safety beveling
9. Processing mode for various kinds of lens materials
Specifications:
| GSA-F68 | ||
|
Processing system
|
Beveling, flat edging, grooving, polishing and chamfering | |
| Auto mode and guide mode | ||
| Processing lens | glass, plastic, polycarbonate | |
| Processing pressure | approx. 4.Skg (fixed) | |
|

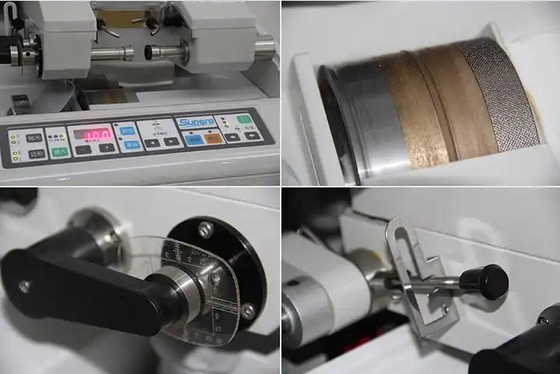

Wheels
|
Roughing wheel for glass lens | 100mm in diameter, 17mm in width |
| Roughing wheel for plastic lens | 100mm in diameter, 17mm in width | |
| Finishing wheel | 100mm in diameter, 23mm in width | |
| Polishing wheel (for flat edge) | 100mm in diameter, 12mm in width | |
| water supply system | Pump circulation | AC 100~230V |
|
Processing accuracy
|
Size accuracy | ±0.05mm |
| Axis angle | ±1. | |
| Whole system | Display | 5.6’’LCD/TFT |
| Dirnensrons | 520mm•485mm•330mm | |
| Weight | -45Kg(only main body) | |
| Power supply | 110/220V 50/60HZ | |
| Power consumption | 1.2KVA(max. during processing) | |
FQA:
1. How to Choose the Appropriate Specification
After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.
2. What is the delivery term of your products?
Normally we have standard products in stock. For bigger sizes (larger than 1000mm),
we can discuss and determine on the delivery time, generally,7-10 working days after receipt of the
payment. in urgent , we will try to make special arrangement.
Various shipping modes choices,shipping from Shenzhen port.
3. Do you accept customized service?
Yes OEM is welcome .
4. What is your warranty period?
12 Months warranty,after the warranty,the professional after-sales service team will provide
comprehensive technical support to help customers solve problems encountered when using our products and promptly handle customer problems and complaints.
5.Have you ever had clients in our country before?
Our equipment has been widely supplied to Malaysia,India,Japan,
Pakistan, Philippines, Singapore,Thailand and Vietnam, Korea, UK, Italy, Germany,USA, Poland, Russia,
Turkey,Mexico,Ecuador,Canada,Israel and so on more than 30 countries.
