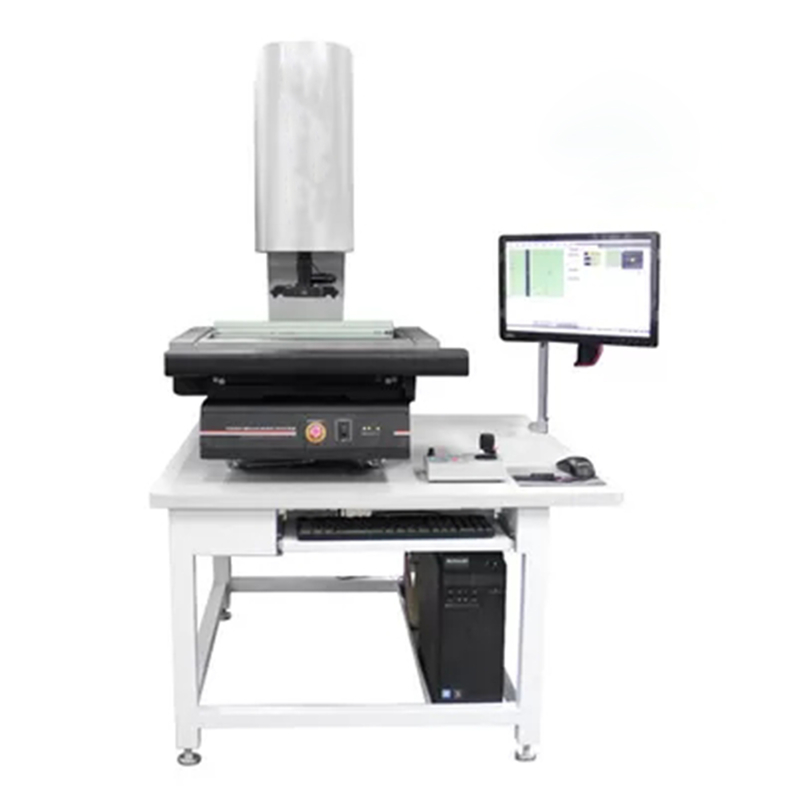

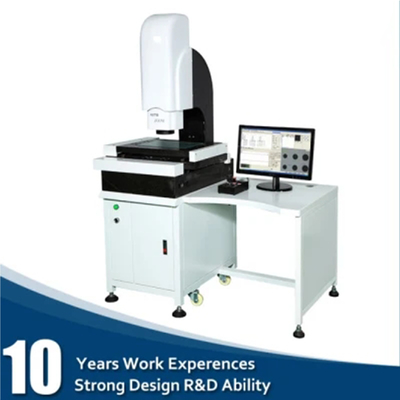

Cmm 3d Cnc Video Measuring Machine , High Accuracy Vision Measuring System

High Accuracy Cmm 3d Cnc Video Measuring Machine / Vision Measuring System

Features:

1.Marble base, column, good stability, strong structural rigidity

2.Marble work surface, two-layer workbench structure, reduce mechanical errors, and ensure the accuracy of X, Y horizontal movement

3.Marble X, Y verticality is high, ensuring the measurement accuracy of (3+L/200)um, even if the workpiece is not squared, it can achieve high measurement accuracy

4.CCD1 measuring camera, high resolution color 1/3" CCD 800TVL

5.CCD2 navigation camera, convenient and fast to find the measurement location, improve the measurement efficiency

6.Fully automatic zoom lens, change the lens magnification, automatically recall, avoid misoperation of scale selection, and improve efficiency at the same time

7.Metal grating ruler 0.0002mm high-precision self-adhesive, high precision, good reliability, effectively avoid return error and zero problem

8.The use of precision linear guides completely solves the problem of the misalignment of the V-shaped guide cage, with stronger load-bearing capacity, longer life, and more accurate accuracy.

9.Using Taiwan imported high-precision grinding grade ball screw, the accuracy and stability are at the leading level in the industry

10.Using Taiwan imported high-precision P-level rails, the accuracy and stability are at the leading level in the industry

11.Using closed-loop high-performance servo motor (three-axis), high positioning accuracy and long service life

12.Equipped with self-developed fully closed-loop motion controller to realize the function of linear difference compensation, and at the same time, it can quickly and accurately position, with high speed and low noise

13.Light source: LED 5 ring 8 zone surface ring light + bottom parallel backlight, all programmable control, can provide N kinds of lighting combinations

14.Using independent research and development data controller, data processing stability is good, maintenance is convenient 15. Provide long warranty period, lifetime maintenance, once selected, no worries

Specifications:

Our Services:

committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.

If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.

We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.

We devote ourselves to providing continuous technical support and services including but not limited to the followings:

1. Process control and enhancement.

2. Machinery training and upgrading.

3. Machinery, metrology, sales and services.

4. Specialist maintenance repair, and refurbishment.

5. Consultancy and advisory services.

6. Online technical support.

7. Onsite training and after-sale service by our distributors worldwide.

Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
