Product Details:
|
| X/Y Accuracy: | (2+L/250)Um Unit Of L: Mm | Measuring Range: | 600*500*200mm |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | 240V Visual Measuring System,250W Visual Measuring System,Newton 600h Video Measuring Instrument |
||

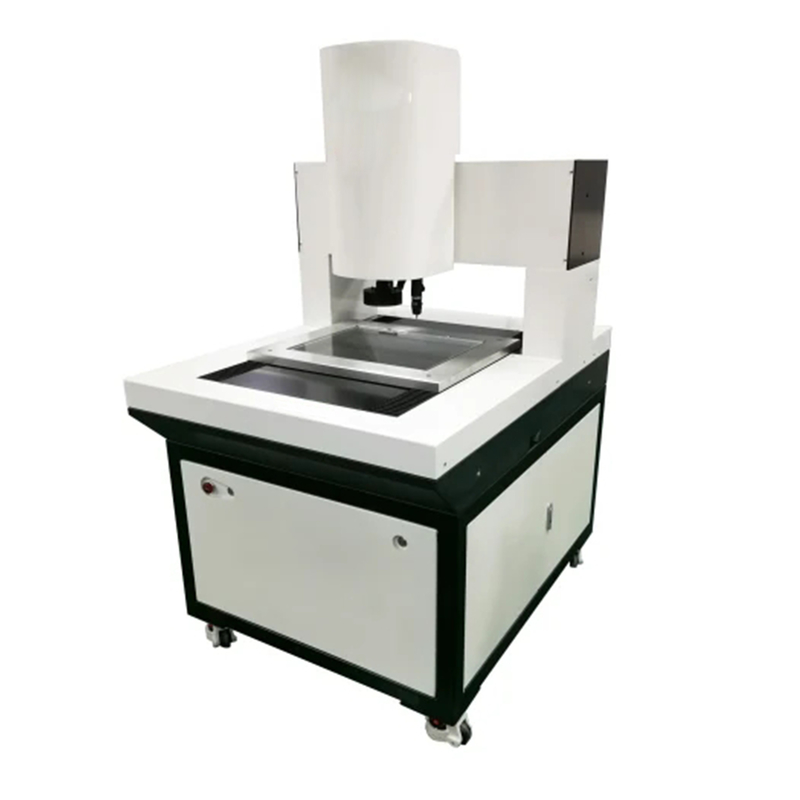

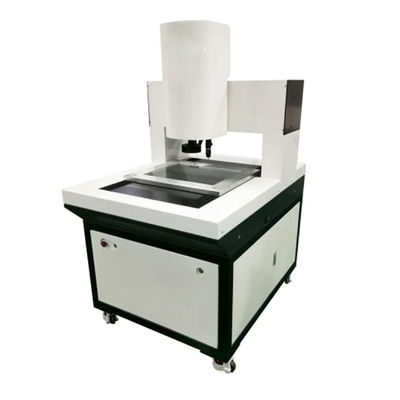

High Precision Visual Measuring System Video Measuring Instrument Newton 600h
Features:
Newton H vision measuring instrument is designed for high-precision detection. It integrates advanced design concept, perfect design and strict production process control to ensure the accuracy and stability of the machine.
1. THK high precision linear guide
2. Reducing Abbe error by intermediate transmission of platform
3. Integrated structure is convenient for transportation and saves space.
4. Optional: confocal, laser, probe measurement
5. The resolution of high precision grating scale can reach 0.10μm
6. Marble platform with bridge structure ensures the machine run more accurately.
Specifications:
| Model | GSKA-2515 | GSKA-4030 | |||
| Working table | Metal table size (mm) | 450×280 | 606×466 | ||
| Glass table size (mm) | 306×196 | 450×350 | |||
| Travel (mm) | 220×120 | 370×270 | |||
| Linear scale resolution | 0.5μm | ||||
| Indication error | E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm) | ||||
| Consistency error of origin in different sections | E0≤20 (every 100mm displacement in Z axis) | ||||
| Dimension (mm) | 760×600×900 | 970×670×940 | |||
| Weight (kg) | 146 | 266 | |||
| Z-axis travel (mm) | 150 (Can be customized to 300mm) | ||||
| Accessories | 1X lens tube (Standard) | 0.5X lens tube (Optional) | Working distance (mm) | ||
| Zoom lens | 0.7-4.5X | 0.7-4.5X | |||
| Additional lens | Magnification | Field of view (mm) | Magnification | ||
| 0.5X (Optional) | 10-64X | 22-3.4 | 5-32X | 175 | |
| 1X (Standard) | 20-128X | 11.1-1.7 | 10-64X | 92 | |
| 2X (Optional) | 40-256X | 5.5-0.9 | 20-128X | 36 | |
| Brand PC (Standard), joystick (Standard) | |||||
| Video system | 1/2” color CCD camera. Brand zoom lens (Optional) | ||||
| Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (19.5 inches display. Resolution: 1440*900) | |||||
| Field of view: 11.1mm~1.7m | |||||
| Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC) | |||||
