Product Details:
|
| Auto Zoom Lens Magnification: | 0.58X~7.5X | Travel (mm): | 300×200 |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | 150mm Vision Measurement System,0.58X Vision Measurement System,7.5X Vision Measurement System |
||

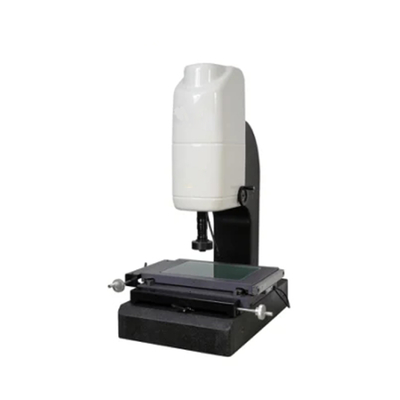

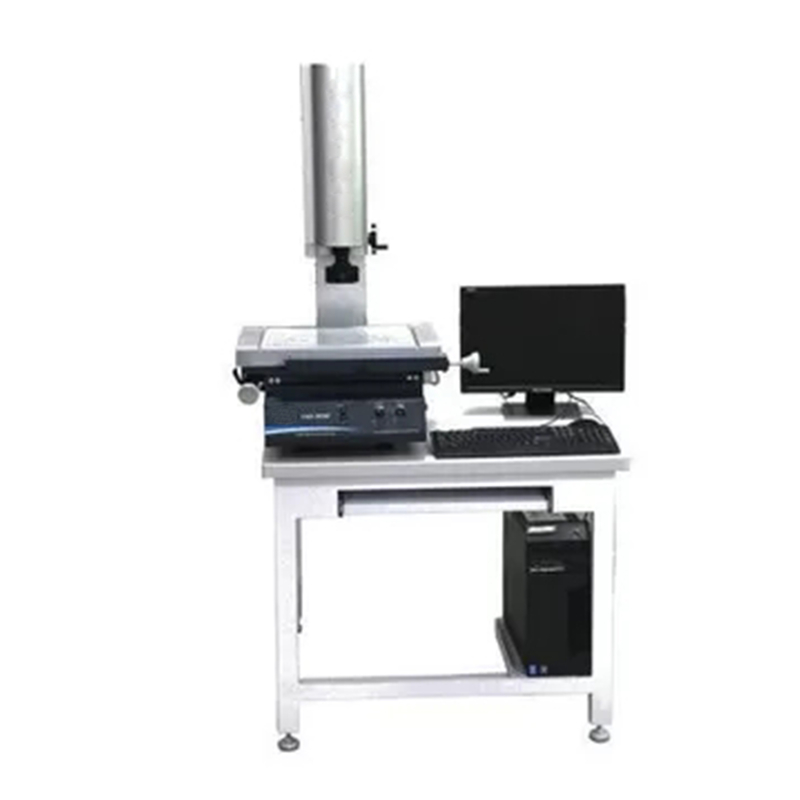

High Precision Vision Measurement System 0.58X~7.5X Auto Zoom Lens Magnification
Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
Specifications:
| Working table | Model | GSKA-2010 | GSKA-3020 | GSKA-4030 |
| Metal table size (mm) | 404×228 | 500×330 | 606×466 | |
| Glass table size (mm) | 260*160 | 350*250 | 450*350 | |
| Travel (mm) | 200×100 | 300×200 | 400×300 | |
| Z-axis travel (mm) | 150(can be custom made to 400 | |||
| Consistency error of origin in different sections (μm) | F series:E0≤20(100mm)every 100mm in Z axis | |||
| X,Y,Z Linear scale resolution:0.5μm X,Y-axis indication error:(2.5+L/100)μm (L is the length of the measured object. Unit: mm) | ||||
| Video system | F series | |||
| GIGE Color Camera | ||||
| Auto zoom lens magnification: 0.58X~7.5X | ||||
| Magnification: 27.4~351.3X(24"display) | ||||
| Object view: 14mm~1.4mm | ||||
| Surface lighting and transmission lighting both adopt adjustable LED | ||||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Our Services:
committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
