Product Details:
|
| Power Supply: | AC90~264V 50/60Hz | CCD: | SONYchip1/3 Color CCD |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | AC90V Video Measurement System,2.5D Video Measurement System,AQC Vision Measurement System |
||

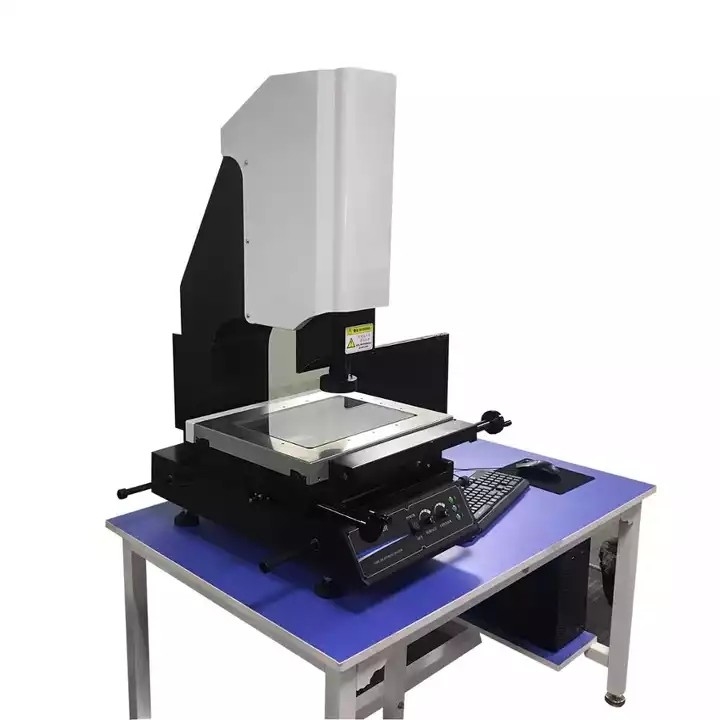

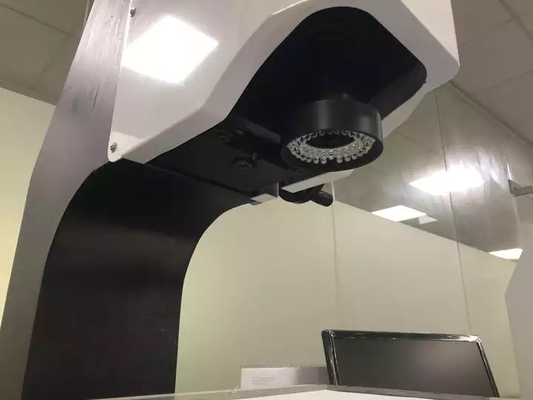

Semi-automatic manual 2.5D visual image video measurement system machine
Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
1. Adopt AQC series measuring software for processing and output ,Powerful and complete functions,available for manual program measuring
2. Adopted high-precision granite structure ,difficult deformation, high stability, high-end good looking
3. High precision grating system, with extremelM. alihigh stability
4. Adjust through LED light source software ,easy to operate.
5. Adjust high precision polish rod transmission enabling to fine tune and move rapidly ,achieve more high efficiency measuring
6. Software focusing indication function , well -illustrated report output system
Specifications:
| Model | GSKA-1510 Manual | GSKA-2010Manual | GSKA-3020Manual | GSKA- 4030Manual |
| Main size | 700*560*850mm | 700*560*850mm | 850*600*900mm | 970*670*940mm |
| Metal platform size | 345*250mm | 345*250mm | 450*350mm | 650*350mm |
| Glass platform size | 220*150mm | 220*150mm | 340*240mm | 480*370mm |
| Real impulse stroke | 150*100*120mm | 200*100*130mm | 300*200*150mm | 400*300*150mm |
| Weight | 130KG | 140KG | 200KG | 250KG |
| Machine bottom | 00level granite | |||
| Linear accuracy | (3+L/75)µm | |||
| Surface lighting | LED ring form super bright cold light source(luminance adjustable) | |||
| Outline shining | LED super bright roundness light(luminance adjustable) | |||
| Calculate, calculate function | REICA 2.5D precision measurement system software | |||
| Analysis force | 0.001mm | |||
| Repeat accuracy | 0.002mm | |||
| CCD | SONYchip1/3 color CCD | |||
| eyepiece | 0.5X(can choose 1X,2x) | |||
| object glass | 0.7X~4.5X amplification factor 20X~120X | |||
| power supply | AC90~264V 50/60Hz | |||
| Load | 30KG | |||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Our Services:
committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
