Product Details:
|
| Repeated Accuracy(mm): | 0.005 | X ,Y Measure Accuracy (μm): | 3.0+L/200 |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | FPC Gear Measuring Machine,CNC Gear Measuring Machine,0.005mm Accuracy Vision Measurement System |
||

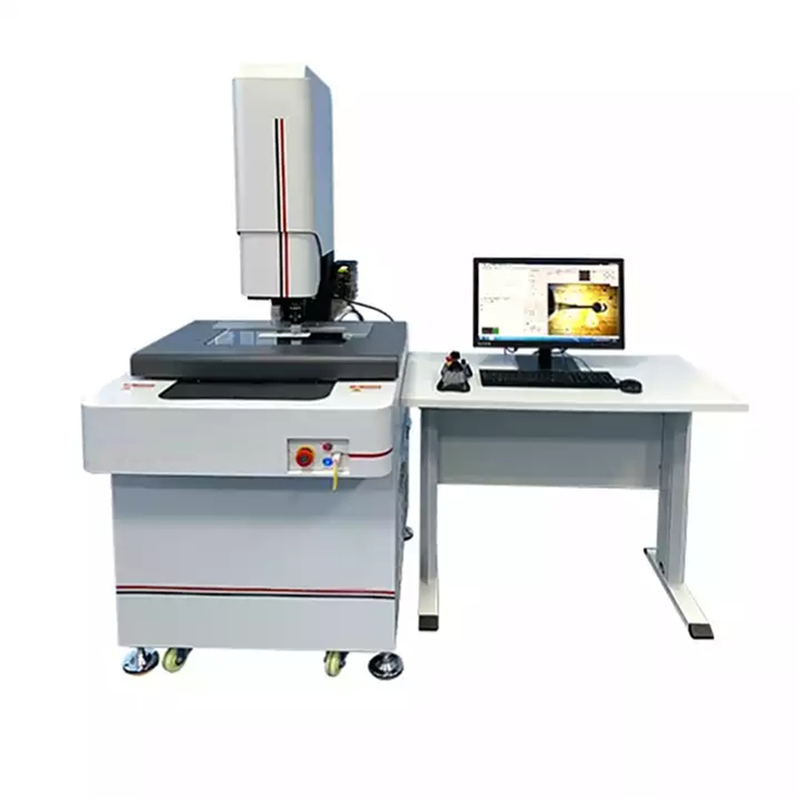

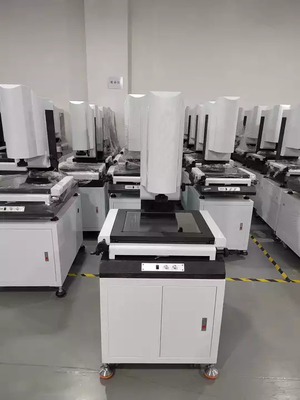

Multifunctional Vision System Optical Equipment Video CNC Gear Measuring Machine
Product introduction:
The image measuring instrument can accurately measure points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring a wide range of products in large quantities.
Widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, computers (computers), liquid crystal televisions (LCD), printing Circuit boards (circuit boards, PCB), automobiles, medical equipment, clocks, instruments, and other industries.
Measurement object:
LCD, FPC, PCB, circuit boards, screws, springs, watches, watches, meters, connectors (connectors, terminals), gears, cams, threads, radius templates, thread templates, wires and cables, tools, bearings, hardware , Stamping parts, screens, test screens, cement screens, mesh panels (steel mesh, SMT template), etc.
Measuring element:
Length, width, height, hole distance, spacing, Pin spacing, thickness, arc, diameter, radius, groove, angle, R angle, etc.
The image measuring instrument body and application features:
1. The mobile device breaks through the transmission design to achieve stable and fast movement.
2. The column and base are made of high-precision granite structure, which is stable and reliable.
3. Equipped with SBK-E multi-function measurement software to meet different measurement needs.
4. DXF files can be imported for quick detection.
5. Measurement data can be imported into Word, Excel, and AutoCAD.
6. Graphical output function, easy to output test results.
7. X.Y axis precision cross roller guide to ensure machine accuracy and service life.
8. Z-axis adopts silver linear guide rail to ensure stable Z-axis focus and solve secondary focus and image measurement accuracy.

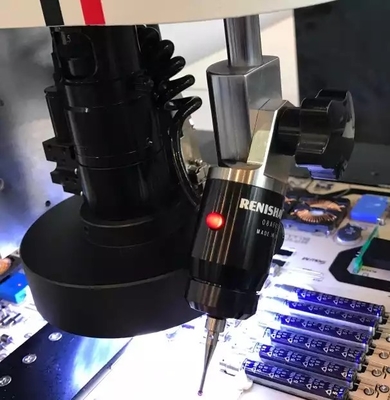

9. High-definition lens and high-resolution CCD for high-definition measurement of products.
10. The industry's advanced card position lens, easy to achieve magnification switching.
Specifications:
| Model | GSKA-1510 Manual | GSKA-2010Manual | GSKA-3020Manual | GSKA- 4030Manual |
| Main size | 700*560*850mm | 700*560*850mm | 850*600*900mm | 970*670*940mm |
| Metal platform size | 345*250mm | 345*250mm | 450*350mm | 650*350mm |
| Glass platform size | 220*150mm | 220*150mm | 340*240mm | 480*370mm |
| Real impulse stroke | 150*100*120mm | 200*100*130mm | 300*200*150mm | 400*300*150mm |
| Weight | 130KG | 140KG | 200KG | 250KG |
| Machine bottom | 00level granite | |||
| Linear accuracy | (3+L/75)µm | |||
| Surface lighting | LED ring form super bright cold light source(luminance adjustable) | |||
| Outline shining | LED super bright roundness light(luminance adjustable) | |||
| Calculate, calculate function | REICA 2.5D precision measurement system software | |||
| Analysis force | 0.001mm | |||
| Repeat accuracy | 0.002mm | |||
| CCD | SONYchip1/3 color CCD | |||
| eyepiece | 0.5X(can choose 1X,2x) | |||
| object glass | 0.7X~4.5X amplification factor 20X~120X | |||
| power supply | AC90~264V 50/60Hz | |||
| Load | 30KG | |||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Our Services:
committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
