Product Details:
|

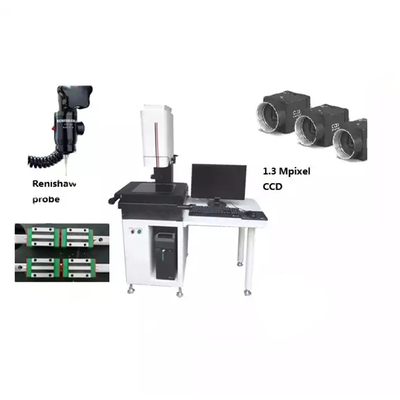

| Optical Magnification: | 0.7-4.5X | Optional Probe: | Renishaw MCP PROBE |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | 60Hz Vision Measuring System,0.7X Vision Measuring System,4.5X Optical Measuring Instrument |
||

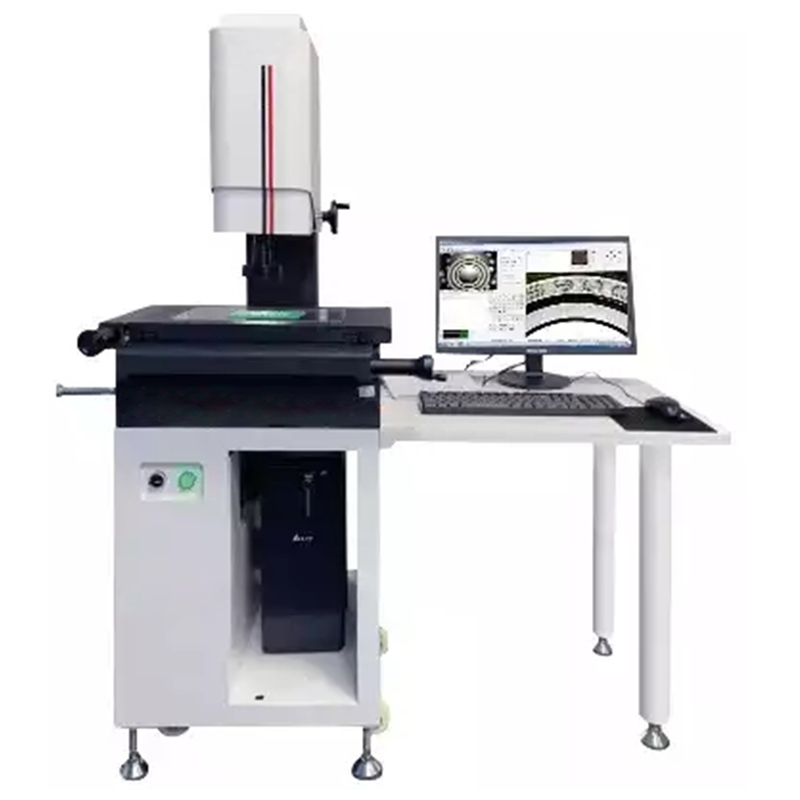

Two Dimensional Three Dimensional Vision Measuring System Optical Measuring Instrument
The principle of:
Manual image measuring instrument is to use a zoom objective lens to magnify the measured object, through the CCD industrial camera device to input the image into the computer, the amplified image of the measured object is transmitted to the measurement software, for non-contact, efficient detection of various complex workpiece geometry measurement.
Product Features:
Compared with the automatic image measuring instrument, the three axes of the automatic image measuring instrument are driven by motors, which can realize automatic measurement. Manual image measuring instrument three axis by the operator manual control measurement. The disadvantage is the measurement speed is slow, repeated measurement accuracy is poor; Advantages are low cost, operation without programming, more convenient to test a single product. With the development of automatic control technology, manual image measuring instrument has been replaced by automatic image measuring instrument.
use:
It is suitable for non-contact measurement of stamping parts, plastic parts, thin film, easy to deform, easy to damage and small size of the workpiece, such as rubber, plastic, hardware, watches, light industry and other industries.
Specifications:
| Model | GSKA-1510 Manual | GSKA-2010Manual | GSKA-3020Manual | GSKA- 4030Manual |
| Main size | 700*560*850mm | 700*560*850mm | 850*600*900mm | 970*670*940mm |
| Metal platform size | 345*250mm | 345*250mm | 450*350mm | 650*350mm |
| Glass platform size | 220*150mm | 220*150mm | 340*240mm | 480*370mm |
| Real impulse stroke | 150*100*120mm | 200*100*130mm | 300*200*150mm | 400*300*150mm |
| Weight | 130KG | 140KG | 200KG | 250KG |
| Machine bottom | 00level granite | |||
| Linear accuracy | (3+L/75)µm | |||
| Surface lighting | LED ring form super bright cold light source(luminance adjustable) | |||
| Outline shining | LED super bright roundness light(luminance adjustable) | |||
| Calculate, calculate function | REICA 2.5D precision measurement system software | |||
| Analysis force | 0.001mm | |||
| Repeat accuracy | 0.002mm | |||
| CCD | SONYchip1/3 color CCD | |||
| eyepiece | 0.5X(can choose 1X,2x) | |||
| object glass | 0.7X~4.5X amplification factor 20X~120X | |||
| power supply | AC90~264V 50/60Hz | |||
| Load | 30KG | |||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
