Product Details:
|
| Camera: | 1/3”color CCD | Travel (mm): | 300*200 |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | 0.7X Video Measuring System,4.5X Video Measuring System,CCD Vision Measurement System |
||

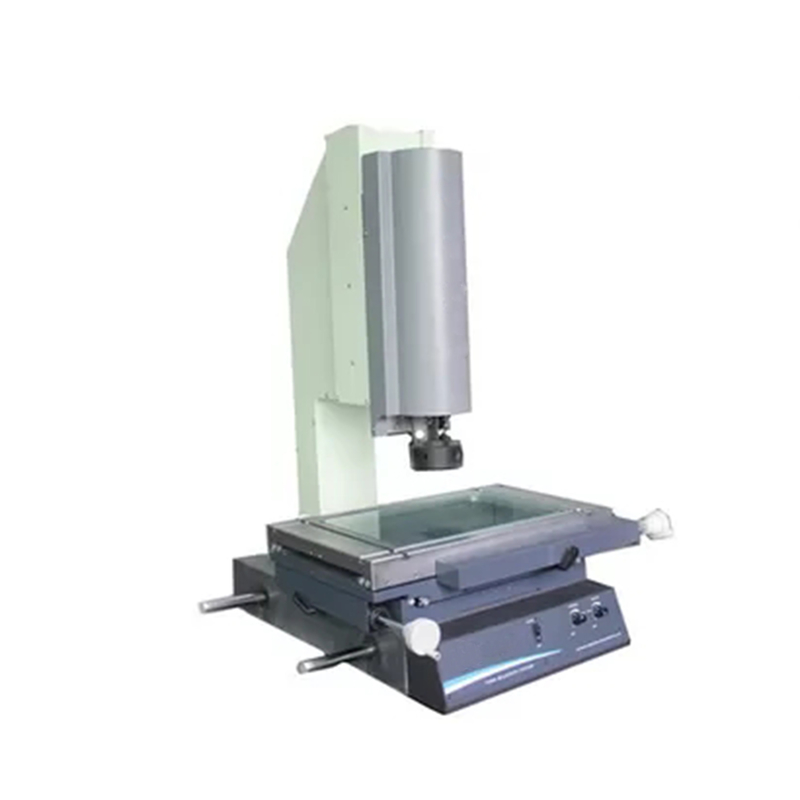

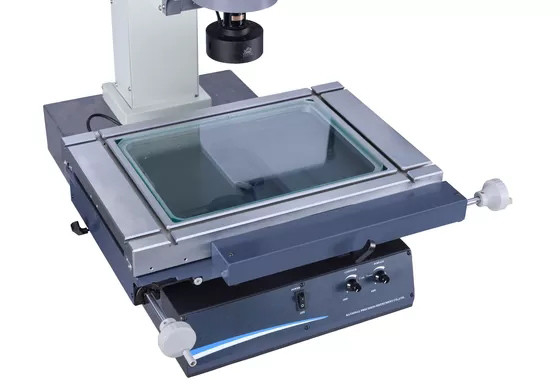

OEM Manual Video Measuring System 0.7X~4.5X Auto Zoom Lens Magnification
The principle of:
Manual image measuring instrument is to use a zoom objective lens to magnify the measured object, through the CCD industrial camera device to input the image into the computer, the amplified image of the measured object is transmitted to the measurement software, for non-contact, efficient detection of various complex workpiece geometry measurement.
Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
Specifications:
| Model | GSKA-1510 Manual | GSKA-2010Manual | GSKA-3020Manual | GSKA- 4030Manual |
| Main size | 700*560*850mm | 700*560*850mm | 850*600*900mm | 970*670*940mm |
| Metal platform size | 345*250mm | 345*250mm | 450*350mm | 650*350mm |
| Glass platform size | 220*150mm | 220*150mm | 340*240mm | 480*370mm |
| Real impulse stroke | 150*100*120mm | 200*100*130mm | 300*200*150mm | 400*300*150mm |
| Weight | 130KG | 140KG | 200KG | 250KG |
| Machine bottom | 00level granite | |||
| Linear accuracy | (3+L/75)µm | |||
| Surface lighting | LED ring form super bright cold light source(luminance adjustable) | |||
| Outline shining | LED super bright roundness light(luminance adjustable) | |||
| Calculate, calculate function | REICA 2.5D precision measurement system software | |||
| Analysis force | 0.001mm | |||
| Repeat accuracy | 0.002mm | |||
| CCD | SONYchip1/3 color CCD | |||
| eyepiece | 0.5X(can choose 1X,2x) | |||
| object glass | 0.7X~4.5X amplification factor 20X~120X | |||
| power supply | AC90~264V 50/60Hz | |||
| Load | 30KG | |||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Our Services:
committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
