| Application: | 2D Measurement | Usage: | Optical System |
|---|---|---|---|
| Linear Scale Resolution: | 0.5μm | Z-axis Travel (mm): | 150 (Can Be Customized To 300mm) |
| Software: | Self Developed Measuring Software | Warranty: | 1 Year |
| High Light: | CMM Visual Measurement System,2.5D Visual Measurement System,0.5um Vision Measurement System |
||

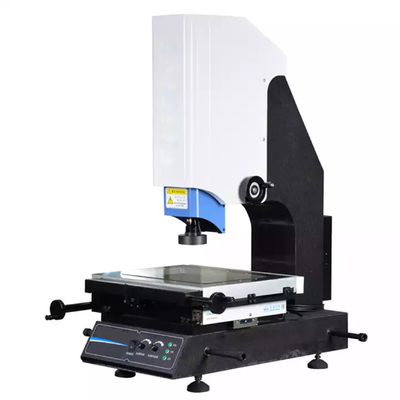

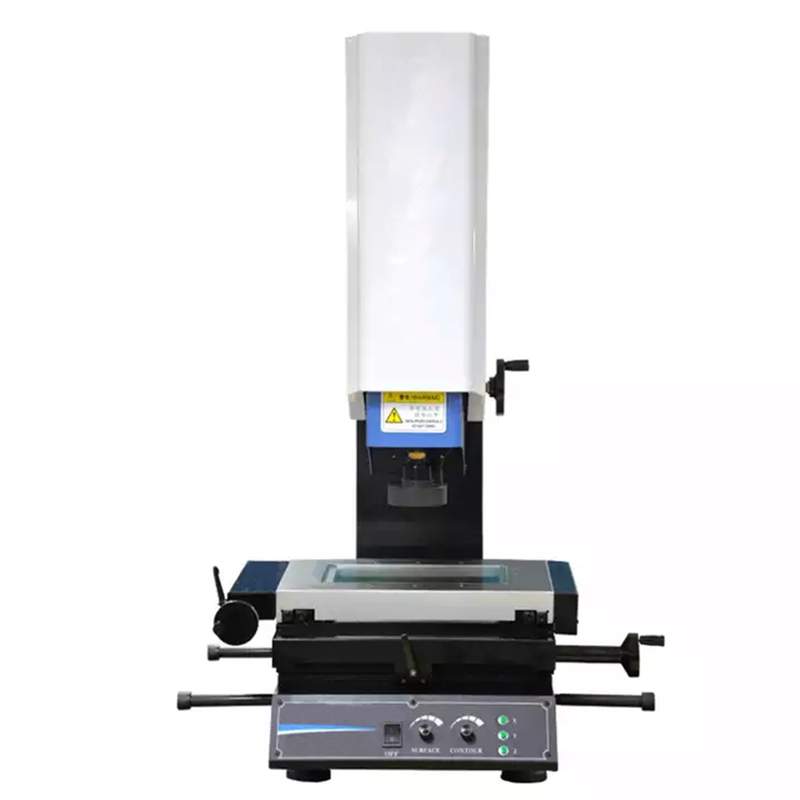

CMM Optical Visual Instrument 2.5D Manual Video Metal Parts Measurement System
Product brief:
AICEYI Video measuring machines Applied mainly for 2D measurement, including points, lines, circles, arcs, rectangles and other geometric elements and parts of the length, angle, contour shape, surface shape, etc. this instrument is a high precision and high efficiency measuring machine. And have been used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Video Measuring Machine Features:
1.The testing machine is designed to measure the two coordinates in all applicated areas.
2. Optical vision measuring machine is widely used in mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic etc.
3.Optical vision measuring machine can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point
positioning function .
4.The flexible and harmonious translation of coordinates make the measurement more convenient and efficient.At the same time it improves the measurement efficiently.
5.The measuring data can be directly output into Word,Excel, CAD .
6. The marble base and column looks simple and elegant.
Specifications:
| Model | GSKA-1510 Manual | GSKA-2010Manual | GSKA-3020Manual | GSKA- 4030Manual |
| Main size | 700*560*850mm | 700*560*850mm | 850*600*900mm | 970*670*940mm |
| Metal platform size | 345*250mm | 345*250mm | 450*350mm | 650*350mm |
| Glass platform size | 220*150mm | 220*150mm | 340*240mm | 480*370mm |
| Real impulse stroke | 150*100*120mm | 200*100*130mm | 300*200*150mm | 400*300*150mm |
| Weight | 130KG | 140KG | 200KG | 250KG |
| Machine bottom | 00level granite | |||
| Linear accuracy | (3+L/75)µm | |||
| Surface lighting | LED ring form super bright cold light source(luminance adjustable) | |||
| Outline shining | LED super bright roundness light(luminance adjustable) | |||
| Calculate, calculate function | REICA 2.5D precision measurement system software | |||
| Analysis force | 0.001mm | |||
| Repeat accuracy | 0.002mm | |||
| CCD | SONYchip1/3 color CCD | |||
| eyepiece | 0.5X(can choose 1X,2x) | |||
| object glass | 0.7X~4.5X amplification factor 20X~120X | |||
| power supply | AC90~264V 50/60Hz | |||
| Load | 30KG | |||
Proposed table: Loading capacity≥350KG; dimension (L*W*H): 1000×600×500(mm)
Our Services:
committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
