Product Details:
|
| Name: | Projection Presetters | Resolution: | 0.0005mm |
|---|---|---|---|
| Dimension: | 780×530×950(mm) | Application: | Measure The Exact Coordinate Position |
| Illumination: | Brightness Adjustable | Warranty: | 1 Year |
| High Light: | Brightness Adjustable Tool Presetters,Coordinate Position Tool Presetters,Projection Tool Presetters |
||
High Efficiency Projection Presetters Measure The Exact Coordinate Position
Product brief:

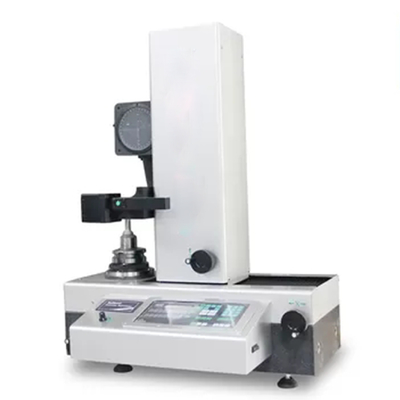

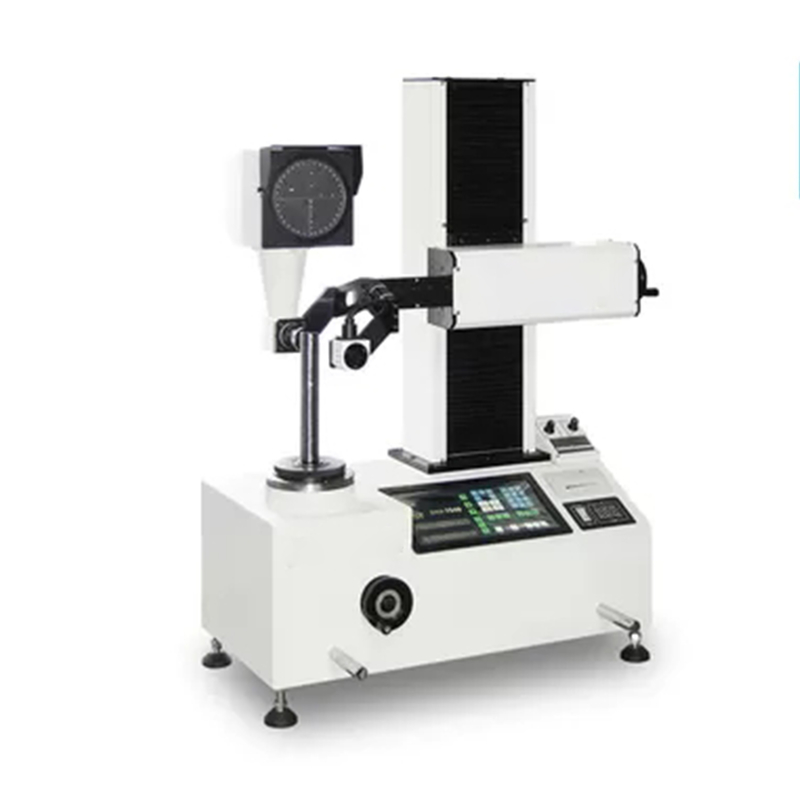

This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.
Specifications:
|
Product Character
|
|
X and Z-axis all adopt granite pedestal X and Z-axis all open linear scale. Operate with drag handle and which ensure aiming and efficiency fine-turning hand wheel |
| Principal axis | Available in BT30, BT40 or BT50 in accordance with customized requirement. |
| Measuring range | iameter (X axis): 300mm Height (Z axis): 30~400mm |
| Digital Measuring System | Linear scale resolution (X, Y-axis): 0.0005mm |
| Diameter, semi-diameter, height, angle, arc, cutting angle, or back bevel angle available by DTP-1540 | |
| Sampling by foot-switch; output by RS232; output by printer | |
| Aiming System | HD CCD camera, 17color display |
| 0.5X lens (Total magnification: 20X) | |
| Standard: cross curve | |
| Illumination | Profile illumination is LED. Surface illumination is halogen lamp (24V, 30W). Brightness adjustable. |
| Dimension (L×W×H) | 780×530×950(mm) |
| Weight |
90 or so |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
