Product Details:
|
| Name: | Microscope | Application: | 2D Measurement, 3D Measurement |
|---|---|---|---|
| Feature: | Two Sighting Systems | Dimension (mm)s: | 590 X 530 X 850 |
| Lens: | Rational Profile Projector, Video Profile Projector | Warranty: | 1 Year |
| High Light: | 2D Measurement 10X Microscope,High Precision 10X Microscope,Polarizing Measurement 10X Microscope |
||

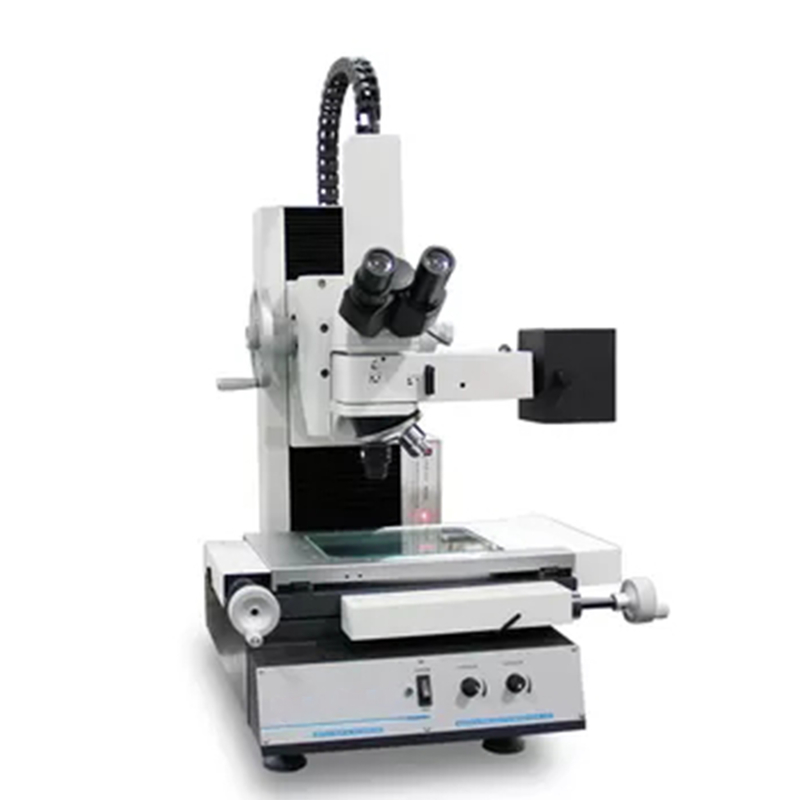

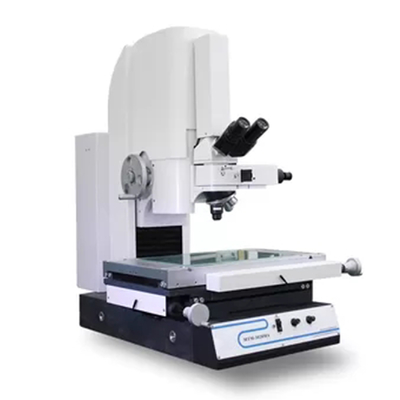

High Precision 10X Microscope With Built-In Polarizing Measurement Module
Product brief:
microscope is a high precision and high efficiency measuring instrument that takes image, eyepiece and nanoscale height into consideration, and integrates optics, machinery, electronics, computing and video. This instrument has two sighting systems: television image and visual optics, which can be used to observe metallographic structure of a metal’s surface. This instrument is mainly applied in 2D measurement, sometimes in 3D aided measurement as well. It is widely used in manufacturing sectors, such as electronic components, precise mold, precise tool, plastic, PCB, coating’s thickness, handset grass, etc.
Features:
1. X, Y, Z axes resolution: 0.5m.
2. Z-axis rough adjustment / fine adjustment rotary knob both available.
3. Coaxial surface light measurement or bottom light measurement available.
4. Built-in polarized light measuring module.
5. Can be measured nanoscale height difference of transparent material.
6. White light nanometer measuring module optional.
Specifications:
| Model | GSKA-1510 | GSKA-2010M | |
| Working table | Metal table size (mm) | 210 x 160 | 260 x 160 |
| Glass table size (mm) | 354 x 228 | 404 x 228 | |
| X, Y-axis travel (mm) | 150 x 100 | 200 x 100 | |
| Z-axis travel (mm) | 120 | 120 | |
| Dimension (mm) | 590 x 530 x 850 | 590 x 575 x 850 | |
| Weight (kg) | 100 | 110 | |
| Resolution (m) | 0.5 | ||
| Indication error (m) | E1XY=( 2.5+ L/100) m (L is the length of the measured object. Unit: mm) | ||
| Lens magnification error | 0.08% (including distortion) | ||
| Transmission illumination | Halogen lamp whose brightness is adjustable | ||
| Bottom illumination | LED whose brightness is adjustable | ||
| Eyepiece System | Video system | ||
| Lens magnification | 5X, 10X, 20X, 50X | 5X, 10X, 20X, 50X; 10X Mirau lens | |
| Eyepiece magnification | 10X dual lens cone | 1/2”CCD camera | |
| Total magnification | 50X ~500X | 142.5X ~1425X (19.5 inches display. Resolution: 1440 x 900) |
|
Our Services:
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
