Product Details:
|
| Name: | Tool-maker Microscope | Resolution: | 0.5μm |
|---|---|---|---|
| Theory: | Video Microscope | Dimension (mm)s: | 590 X 530 X 850 |
| Lens: | Rational Profile Projector, Video Profile Projector | Warranty: | 1 Year |
| High Light: | 2D Tool Makers Microscope,CE Tool Makers Microscop,0.5uM Resolution Tool Microscope |
||

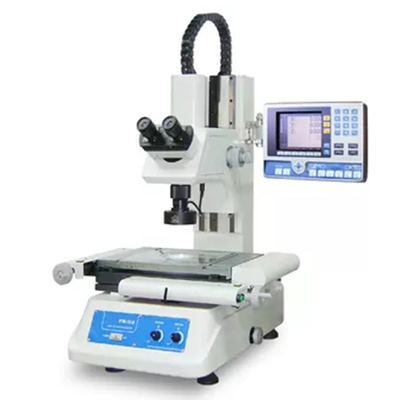

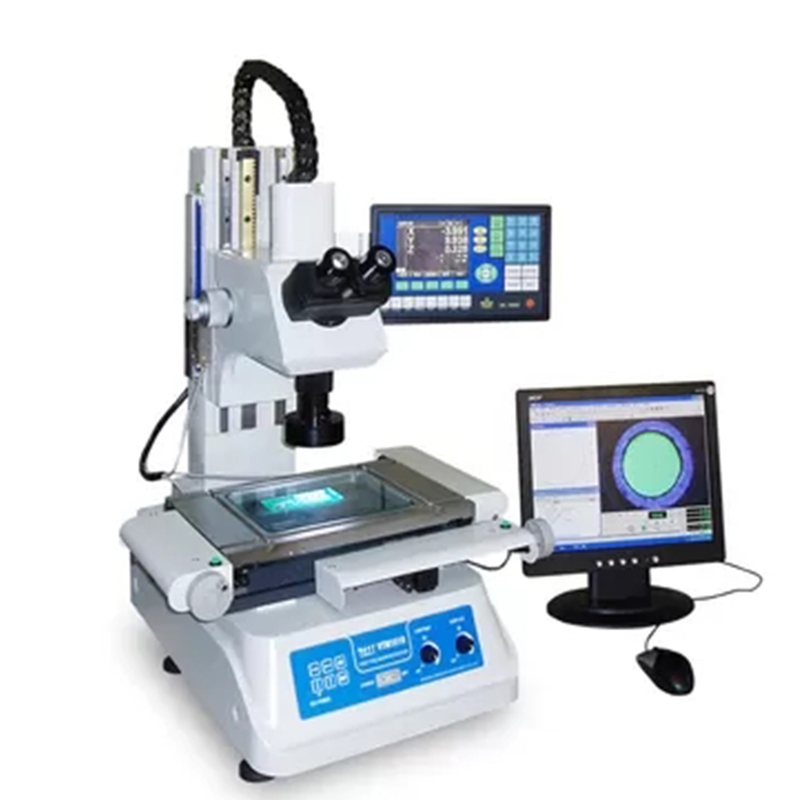

Electronic Tool Makers Microscope Tool Microscope 0.5μM Resolution
Product brief:
Widely used in manufacturing sectors like electronic components, precise mold, precise tool, spring, plastic, rubber, oil cut-off valve, camera parts, auto parts, PCB, tool Microscope is a high precision and high efficiency measuring instrument integrating optics, machinery, electronics and software. It is applied in 2D measurement as well as 3D aided measurement. The eyepiece standard film can be used as comparative measurement for pitch, external diameter, angle, and profile of screw, and for Dimension, length, and profile of cutting tool. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
Tool Microscope features multi-data measurement, magnification, display, input and output. It adopts exclusive measuring software, QMS3D-M, based on Windows OS. Thanks to its user-friendly human-computer interface, it is convenient for users to operate the system and do not need to design a scheduled program.
Specifications:
| Model | GSKA-1510 | GSKA-2010M | |
| Working table | Metal table size (mm) | 210 x 160 | 260 x 160 |
| Glass table size (mm) | 354 x 228 | 404 x 228 | |
| X, Y-axis travel (mm) | 150 x 100 | 200 x 100 | |
| Z-axis travel (mm) | 120 | 120 | |
| Dimension (mm) | 590 x 530 x 850 | 590 x 575 x 850 | |
| Weight (kg) | 100 | 110 | |
| Resolution (m) | 0.5 | ||
| Indication error (m) | E1XY=( 2.5+ L/100) m (L is the length of the measured object. Unit: mm) | ||
| Lens magnification error | 0.08% (including distortion) | ||
| Transmission illumination | Halogen lamp whose brightness is adjustable | ||
| Bottom illumination | LED whose brightness is adjustable | ||
| Eyepiece System | Video system | ||
| Lens magnification | 5X, 10X, 20X, 50X | 5X, 10X, 20X, 50X; 10X Mirau lens | |
| Eyepiece magnification | 10X dual lens cone | 1/2”CCD camera | |
| Total magnification | 50X ~500X | 142.5X ~1425X (19.5 inches display. Resolution: 1440 x 900) |
|
Our Services:
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software.
