Product Details:
|
| Zoom Lens: | Zoom Lens 0.7－4.5X(Coaxial Light Optional) | Image Magnification Ratio: | 30－230X |
|---|---|---|---|
| Working Distance: | 82mm | Resolution: | 0.0001mm |
| Repeatability: | 1.5um | Warranty: | 1 Year |
| High Light: | Stampings Visual Measuring Machine,0.7x Visual Measuring Machin,4.5X Visual Measuring Machine |
||

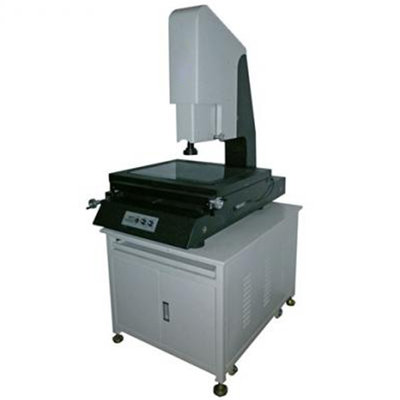

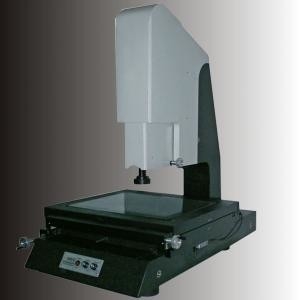

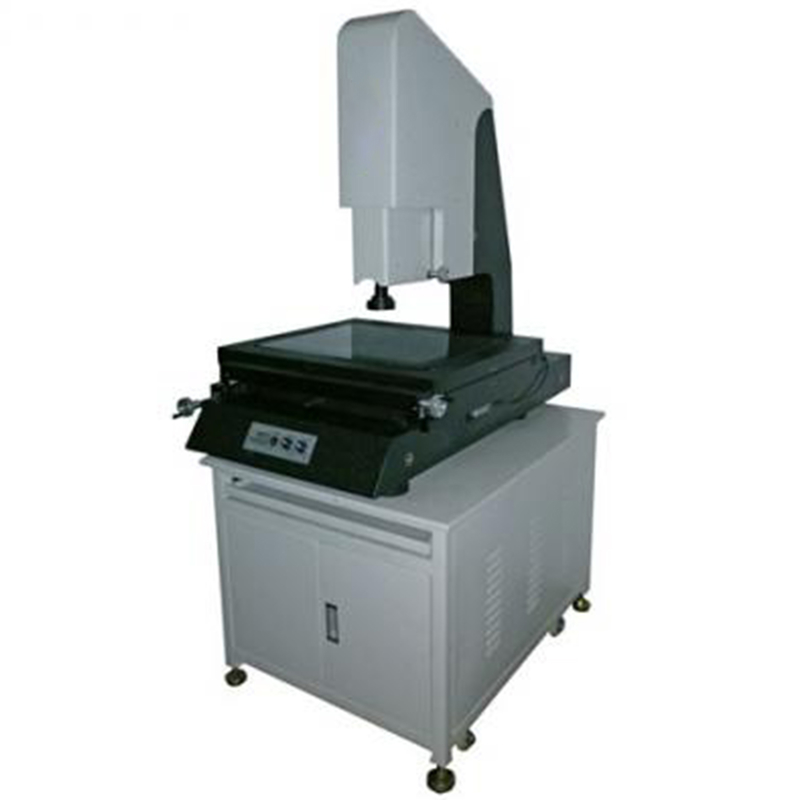

Semi-Automatic Manual 2-D Visual Measuring Machine Zoom Lens 0.7－4.5X
VISION MEASURING MACHINE GENERAL INTRODUCTION:
●This vision measuring machine is advanced length measuring equipment that integrates the technologies such as precise mechanics, optic technology, electronic technology etc.
●This vision measuring system is designed, manufactured & widely applied for products metal, electronics, molding, PCB, pressing piece, connector,
machinery, meter, watch, cell phone, LCD, LED, light industry and users such as university, college, research institution.
●This vision machine with high efficiency in measuring various complex & irregular parts regarding to contour size, surface shape of tools, parts, components like sample plate, pressing piece, cams, screw, gear, profile cutter, tapping, molding, cell phone parts.
●This vision system mainly applied for 2D &3D image measuring purposes with good performance to achieve the comparison finding from actual measuring findings with designed target and realize the purposes to measure, inspect, calibrate as well as perform reverse engineering.
VISION MEASURING MACHINE INDUSTRIAL APPLICATION:
This 2D Vision measuring system is widely applied for the industries and products as below:
LCD, LED, PCB, Stampings, Electronics, Connector, Molding, Hardware, Watch etc.
FEATURE & PERFORMANCE:
1. High precise marble base with highly rigid case pillar is introduced and provided a very stable work bench for entire 2D Vision measuring machine;
2. The motion system is adopting precise V slider rail with high linearity which can achieve highest testing accuracy;
3. Color Industrial standard 600TVA CCD camera here equipped to answer for high requirement;
4. Programmable 3-loop 8-zone LED surface cool light source, direct-axis rim light (Coaxial light optional);
5. High precise optical scale is equipped with its accuracy up to 0.001mm;
6. Independently-developed measuring software can achieve a easy programming method manually;
VISION MEASURING MACHINE TECHNICAL PARAMETERS:
| Model | GSKA-2010 | GSKA-3020 | GSKA-4030 | ||
| Measuring Travel | |||||
| X-Axis Travel | 200mm | 300mm | 400mm | ||
| Y-Axis Travel | 100mm | 200mm | 300mm | ||
| Z -Axis Travel (optional) | 150mm | 150mm | 150mm | ||
| Work Bench | |||||
| aluminum alloy Bench | 360×260mm | 570×355mm | 670×460mm | ||
| Glass Bench | 260×160mm | 354×254mm | 459×359mm | ||
| Load-bearing | 30kg | 50kg | 50kg | ||
| Vision & Measuring System | |||||
| CCD | High Resolution Colored Camera with 600TVA | ||||
| Zoom Lens | Zoom Lens 0.7－4.5X(Coaxial light optional) | ||||
| Image magnification Ratio | 30－230X | ||||
| Working Distance | 82mm | ||||
| Resolution | 0.0001mm | ||||
| Repeatability | 1.5um | ||||
| Measuring Accuracy (μm) |
XY Axis ≦(3+L/200)um, Z Axis(Vision measuring)≦(5+L/200)um |
||||
| Overall (mm) | 900×720×1700 | 980×620×1600 | 1130×750×1600 | ||
| Gross Weight (kg) | 160kg | 230kg | 320kg | ||
| Illuminating system | Programmable 3-Loop 8-Zone Surface light & rim light | ||||
| Power Input | 220V±10%(AC) 50HZ |
||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
