Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine

Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine
Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine

Large Image :  Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine

Product Details:
Place of Origin: Dongguan China
Brand Name: GSKA
Certification: CE
Model Number: Projection Presetters
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Export package
Delivery Time: 10-60days after confirmed payment or by contract stipulation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100 Set / Sets per Month

Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine

Description
Zoom Multiple (17 Inch Screen): 20x-120x, 30x-225x CCD: Color, 1/3 Inch, 8000000 PX
Working Distance: 82mm Resolution: 0.0001mm
Repeatability: 1.5um Warranty: 1 Year
High Light:

120x Video Measuring Machine

,

225x Video Measuring Machine

,

CNC Vision Measuring Machine

Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine



Application with Video Measurment Machine:



Automatic CMM measuring machine is designed to do three dimensional work piece on the slope, round ,ditch,columns,ball,dimension,bland



holes as well as the geometricalterms such as the distance between  the elements and angles. And it is widely used in mechinery,electronics,



mobile fittings,home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on



and other industries.



FEATURE & PERFORMANCE:



1. High precise marble base with highly rigid case pillar is introduced and provided a very stable work bench for entire 2D Vision measuring machine;



2. The motion system is adopting precise V slider rail with high linearity which can achieve highest testing accuracy;



3. Color Industrial standard 600TVA CCD camera here equipped to answer for high requirement;



4. Programmable 3-loop 8-zone LED surface cool light source, direct-axis rim light (Coaxial light optional);



5. High precise optical scale is equipped with its accuracy up to 0.001mm;



6. Independently-developed measuring software can achieve a easy programming method manually;



VISION MEASURING MACHINE TECHNICAL PARAMETERS:



Model GSKA-2010 GSKA-3020 GSKA-4030
Measuring Travel
X-Axis Travel 200mm 300mm 400mm
Y-Axis Travel 100mm 200mm 300mm
Z -Axis Travel (optional) 150mm 150mm 150mm
Work Bench
aluminum alloy Bench 360×260mm 570×355mm 670×460mm
Glass Bench 260×160mm 354×254mm 459×359mm
Load-bearing 30kg 50kg 50kg
Vision & Measuring System
CCD High Resolution Colored Camera with 600TVA
Zoom Lens Zoom Lens 0.7-4.5X(Coaxial light optional)
Image magnification Ratio 30-230X
Working Distance 82mm
Resolution 0.0001mm
Repeatability 1.5um
Measuring Accuracy (μm)

XY Axis ≦(3+L/200)um,

Z Axis(Vision measuring)≦(5+L/200)um

Overall (mm) 900×720×1700 980×620×1600 1130×750×1600
Gross Weight (kg) 160kg 230kg 320kg
Illuminating system Programmable 3-Loop 8-Zone Surface light & rim light
Power Input 220V±10%(AC) 50HZ

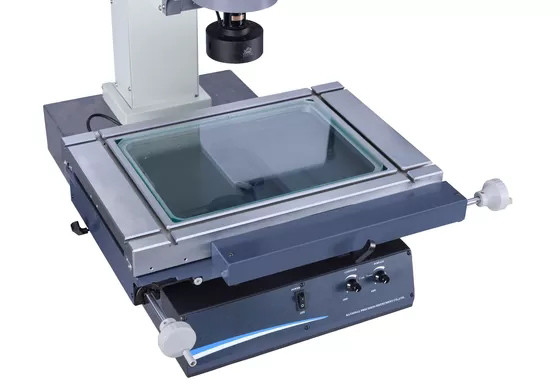

Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine 0

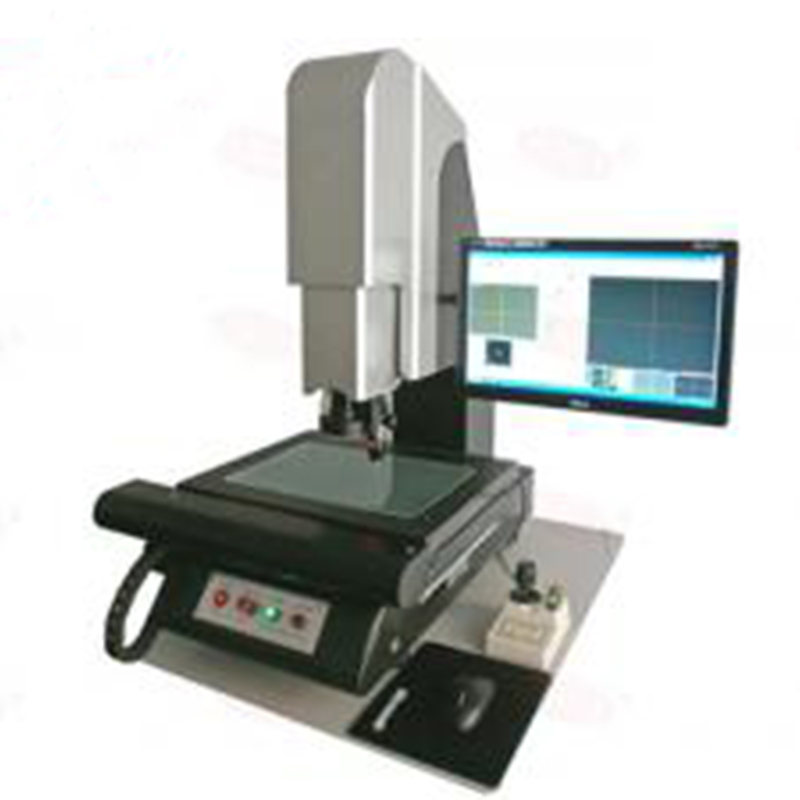

Computer Control Lab Video Measuring Machine , Optical CNC Vision Measuring Machine 1



Customer Support Services:


Ø Installation


Ø Training (Training customer employees)


Ø Calibration


Ø Preventative maintenance


Ø Replacement parts


Ø Assistance via phone or internet


Ø On-site diagnosis and repair/online diagnosis and repair
