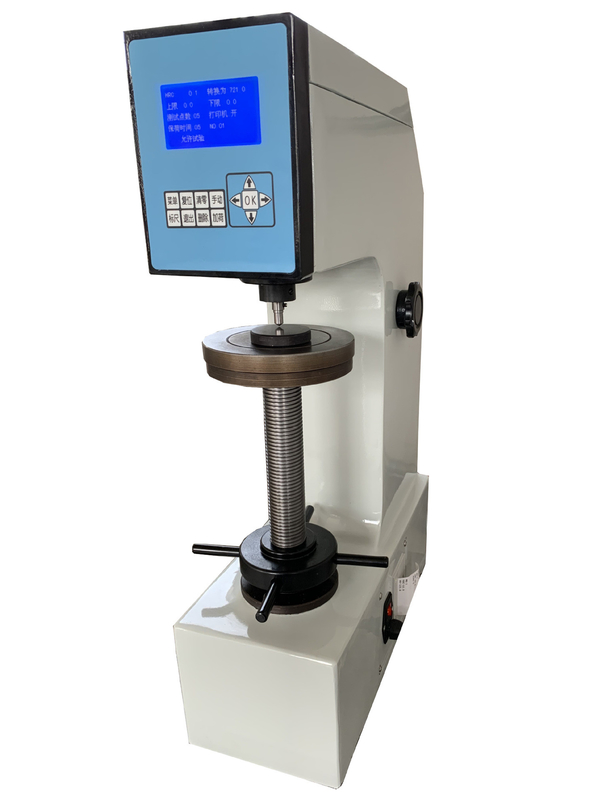

Automatic High Precision Rockwell Hardness Tester LCD Display

Large Image : Automatic High Precision Rockwell Hardness Tester LCD Display

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE
Model Number:	Brinell's machine

Payment & Shipping Terms:

Minimum Order Quantity:	negotiation
Price:	negotiation
Packaging Details:	Packed in foam firstly,and then reinforced with strong carton box for outer packing
Delivery Time:	7-10working days after received deposit
Supply Ability:	100 Set / Sets per Month

Contact Now

Automatic High Precision Rockwell Hardness Tester LCD Display

Description

Hardness Resolution:	0.1HR	Power:	AC 220V,50HZ
Measuring Range:	20-88HRA, 20-100HRB, 20-70HRC	Weight:	About 250kg
Amplification Of Test Microscope:	10X 40X	Depth At Center Line:	95mm
Certification:	Ce, Iso	Dimensions:	500 X 250 X 700 Mm
High Light:	0.1HR Rockwell Hardness Tester , LCD Display Rockwell Hardness Tester

Automatic High Precision Rockwell Hardness Tester LCD Display

Usage and Characteristics:

Rockwell hardness tester is the most popular Rockwell hardness tester, widely used to measure the Rockwell hardness of ferrous metals, non-ferrous metals, non-metallic materials, quenching and quenching and heat treatment materials. Such as hard alloy, carburized steel, quenched steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable castings, mild steel, quenched and tempered steel, annealed steel, bearings and other materials.

Integrally cast body:

The fuselage part of the product is formed at one time by the casting process. The fuselage is a closed shell. Except for the worktable, screw and joystick, other mechanisms are installed in the fuselage shell, which is easy to keep clean. Long-term use of minimal deformation, and can effectively adapt to various harsh environments.

Dial reading:

Double scale dial, multi-purpose one machine, can measure three hardness values of HRA, HRB, HRC.

Variable load handle:

Through the operation of the handle, the control lever is loaded and unloaded, without power, and the test efficiency is high.

Main Technical Parameters:

Model	GSKA-150A	GSKA-150
Original test force	98.07N(10kgf)	98.07N(10kgf)
Test force	588.4N(60kgf) , 980.7N(100kgf) , 1471N(150kgf)	588.4N(60kgf) , 980.7N(100kgf) , 1471N(150kgf)
Measuring range	20-90HRA, 20-100HRBW, 20-70HRC	20-95HRA, 20-100HRBW, 20-70HRC
Max.height of test piece	170mm	200mm
Distance between indenter center and machine wall	135mm	160mm
Hardness resolution	0.5HR	0.1HR
Accuracy	Comply with GB/T230.2, ISO6508-2, ASTM E18	Comply with GB/T230.2, ISO6508-2, ASTM E18
Dimensions	470240630(mm)	510290730(mm)
Weight	70kg	80kg
Remarks: Please contact us for further more Model and details.
